Weidmüller RJ45C5 T1V 4.0N4N TY

Weidmüller RJ45C5 T1V 4.0N4N TY
Weidmüller RJ45C5 T1V 4.0N4N TY
Weidmüller RJ45C5 T1V 4.0N4N TY
  • Weidmüller

Product Features

  • Through-hole RJ45 jack
  • Category 5
  • Pitch of 1.27mm
  • Solder pin length of 4mm
  • Gold over nickel contact surface
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed
  • UL

Applications

  • Compliant

Description

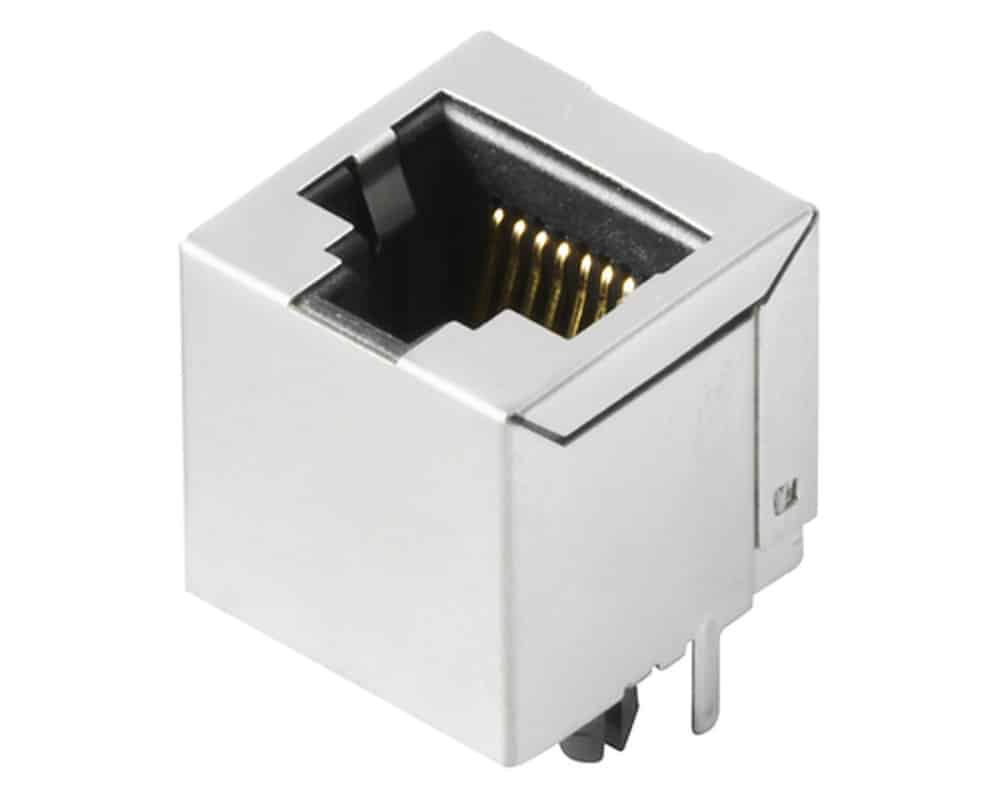

The RJ45C5 T1V 4.0N4N TY connector from the Weidmüller Omnimate data range, offers a connector system with an eight-pole miniature plug-in system for use in connections with STP and UTP cables. This Weidmüller RJ45 jack features an outgoing elbow of 180° with an extended temperature range of −40°C to +85°C and a solder pin length of 4mm.

  • RJ45 jack
  • Mounting onto PCB via through-hole (THT) solder connection
  • Pitch of 1.27mm
  • Outgoing elbow of 180°
  • Shield surface being nickel-plated
  • Plugging cycles of 750
  • Approved by EAC and are UL listed
  • 8 poles
  • Solder pin length of 4mm
  • Contact surface of gold over nickel
  • Dielectric strength of ≥1000VDC and current rated at 1.5A
  • Temperature range −40°C to +85°C

The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:

  • Horizontal wiring
  • Wiring workstations

For further information regarding the specifications, please see the datasheet on the Technical Library tab.


Specifications

Weight 0.00000 kg

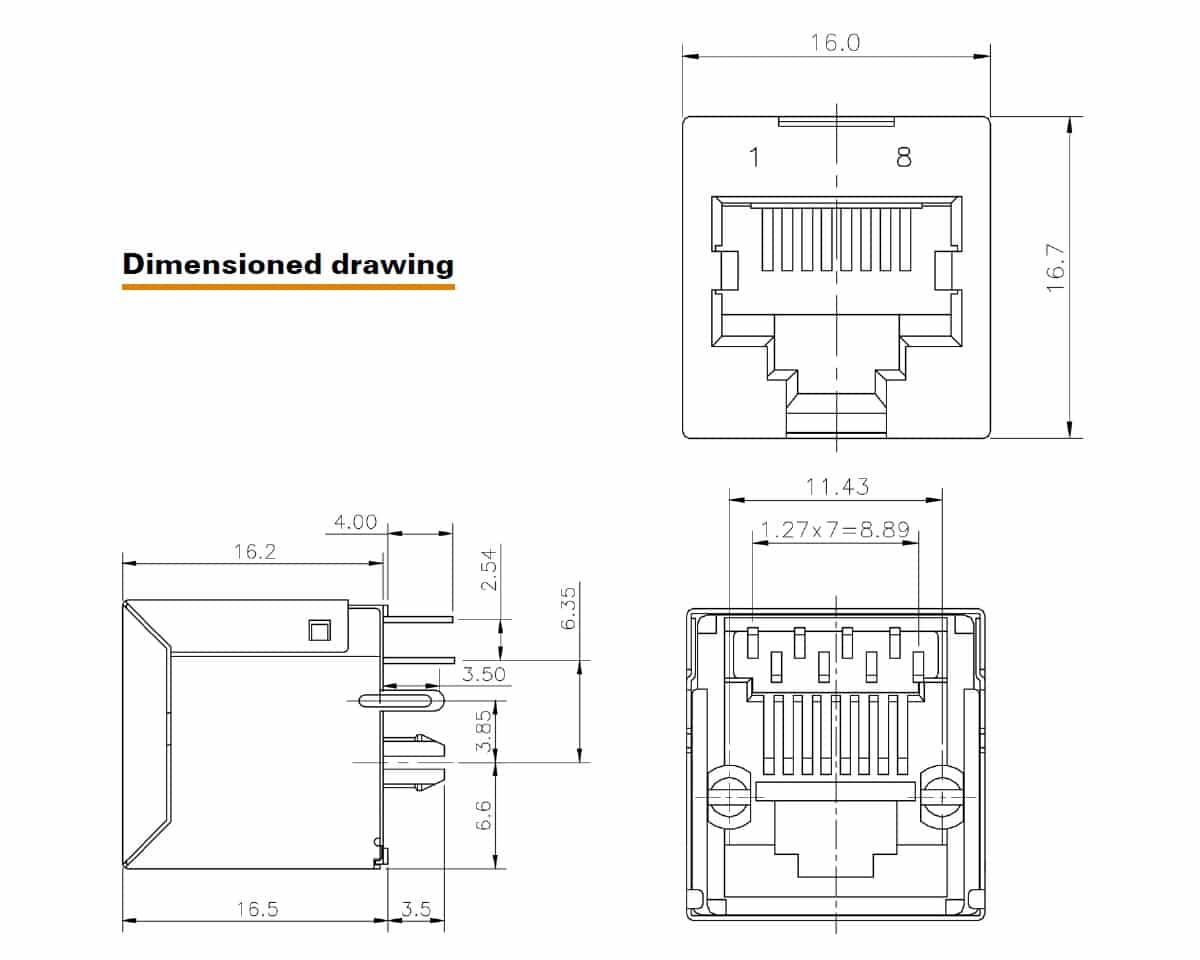

Dimensions 16.00 × 16.70 × 16.50 mm
Shielding

Series / Model

LED

Number of Poles

Plugging cycles

Conductor Outlet Direction

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
