Weidmüller LSF-SMT 5.00/90 Series

  • Weidmüller

Product Features

  • PCB terminal connector
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Dimensions of L1 5.0mm to 35mm (depending on the number of poles required)
  • SMT solder connection with a solder pin length of 3.5mm
  • Wire connection cross section from AWG 28 to AWG 14
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • CSA
  • UL

Applications

  • Compliant

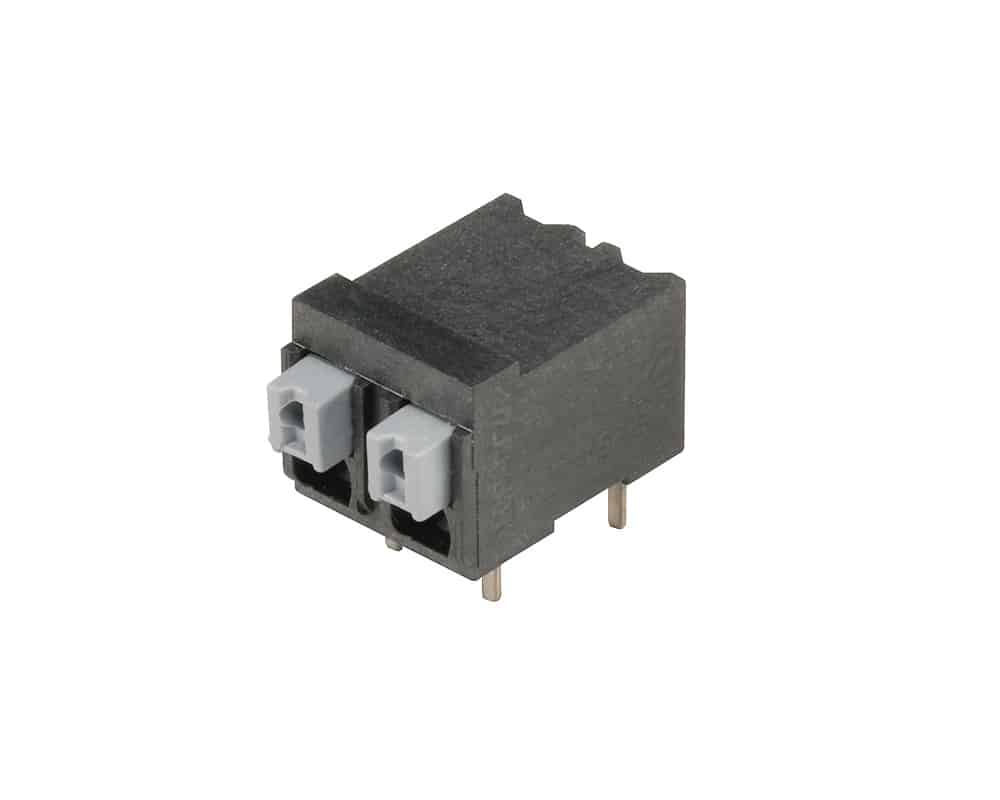

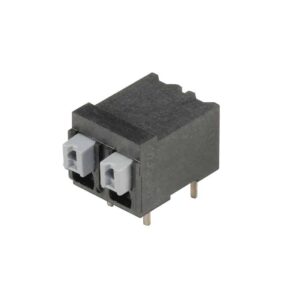

The LSF-SMT 5.00/90 PCB terminal series from Weidmüller’s Omnimate signal range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 90°, and a choice from 2 up to 8 poles and a 5mm pitch. The LSF-SMT 5.00/90 series from Weidmüller have a fully automatic assembly using reflow soldering (SMT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

  • PCB terminal connector
  • Through-hole technology with reflow soldering
  • Number of poles available from 2 to 8
  • Solder pin length of 3.5mm
  • Pitch of 5.00mm
  • Conductor outlet direction of 90°
  • Wire connection cross section from AWG 28 to AWG 14
  • CSA and UL 1059 approved, IEC listed

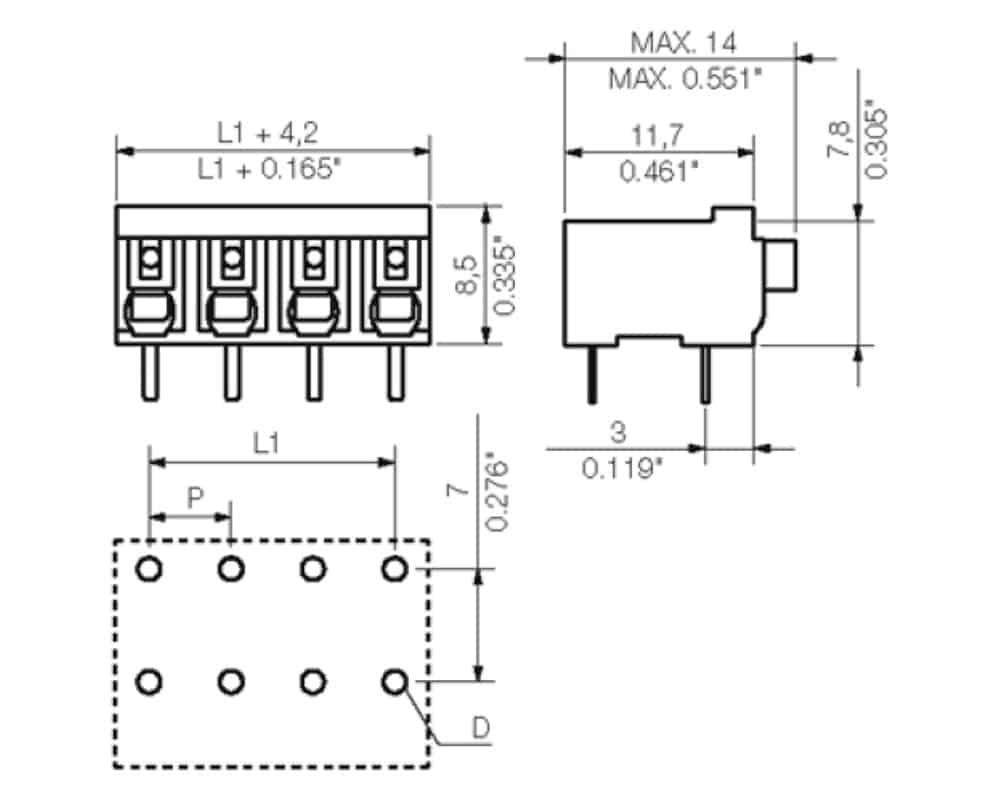

  • Dimmensions for L1 from 5mm to 35mm depending on the number of poles required
  • Rated current for minimum number of poles 17.5A (IEC) and 12A (UL)
  • Packaged in tubes
  • Temperature range −50°C to +120°C


The below table gives the specifications of the Weidmüller LSF-SMT 5.00/90 PCB terminal series:

Weidmüller LSF-SMT 5.00/90 Specifications

Please see the relevant datasheet in the technical library for the exact specification

Specifications

Weight 0.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Black

Conductor Outlet Direction

90°

Number of Poles

2, 3, 4, 5, 6, 7, 8

Package / Size

Series / Model

Termination / Connection

Push-in Spring Clamp

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Weidmüller LSF-SMT 5.00/90 3.5SN BK TU Technical Library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
2 Pole – Weidmüller Omnimate Signal LSF-SMT 5.00/02/90 3.5SN BK TU PCB terminal datasheet
3 Pole – Weidmüller Omnimate Signal LSF-SMT 5.00/03/90 3.5SN BK TU PCB terminal datasheet
4 Pole – Weidmüller Omnimate Signal LSF-SMT 5.00/04/90 3.5SN BK TU PCB terminal datasheet
5 Pole – Weidmüller Omnimate Signal LSF-SMT 5.00/05/90 3.5SN BK TU PCB terminal datasheet
6 pole – Weidmüller Omnimate Signal LSF-SMT 5.00/06/90 3.5SN BK TU PCB terminal datasheet
7 Pole – Weidmüller Omnimate Signal LSF-SMT 5.00/07/90 3.5SN BK TU PCB terminal datasheet
8 Pole – Weidmüller Omnimate Signal LSF-SMT 5.00/08/90 3.5SN BK TU PCB terminal datasheet

Weidmüller LSF-SMT Video Library

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Weidmüller Omnimate Signal LSF-SMT Video

Weidmüller's LSF SMT is a printed circuit board terminal block for lead-free soldering processes with innovative connection technology Push In. The Push In direct-connection terminal connector system ensures short wiring times: reductions of up to 50 % for the connect conductor workstep.

Place holder video for YouTube video Weidmüller Omnimate Signal video

A short video of Weidmüller' Device Connectivity components for signal applications. Designed specifically for automation applications, providing innovative solutions and backed by superior design in service and support.

VIDEOS
Place holder video for YouTube video
Weidmüller Omnimate Signal LSF-SMT Video

Weidmüller's LSF SMT is a printed circuit board terminal block for lead-free soldering processes with innovative connection technology Push In. The Push In direct-connection terminal connector system ensures short wiring times: reductions of up to 50 % for the connect conductor workstep.

Place holder video for YouTube video
Weidmüller Omnimate Signal video.

A short video of Weidmüller' Device Connectivity components for signal applications. Designed specifically for automation applications, providing innovative solutions and backed by superior design in service and support.
