DGH DIN-192 RS-485 Repeater

  • DGH

Product Features

  • Transparent RS-485 data repeater
  • Baud rates 300 to 115.2k baud
  • Isolated to 500Vrms
  • Temperature range of -25°C to +70°C

Applications

  • Power Control
  • Test and Measurement
  • Non-compliant

Description

The DIN-192 RS-485 Repeater module transparently repeats RS-485 signal at standard baud rates between 300 and 115.2k baud. With the flow of data controlled by the module circuitry, this converter module does not need external handshaking signals. It also features optical isolation from RS-232 input to RS-485 utput by up to 500Vac. The DIN-192 is designed to compliment other DIN-100 series modules to build a complete data acquisition system.

  •  RS-485 signal repeater module
  • Baud rate: 300 to 115200
  • Isolated to 500Vrms
  • Temperature range -25°C to +70°C

Specifications

Weight 0.00000 kg

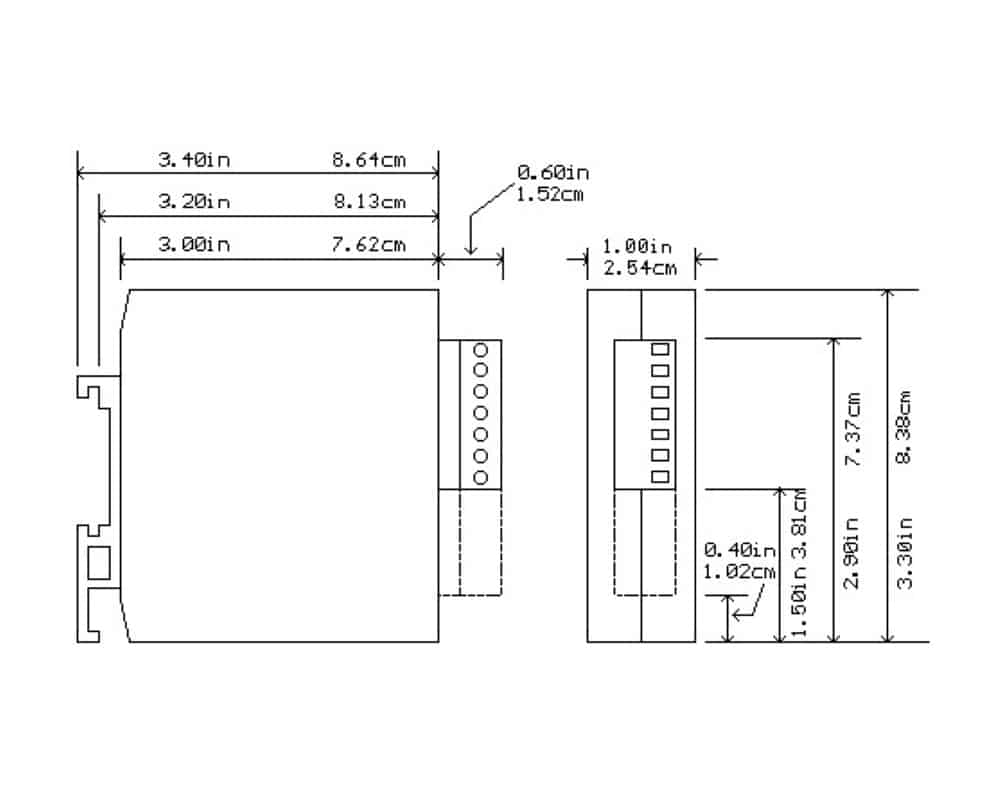

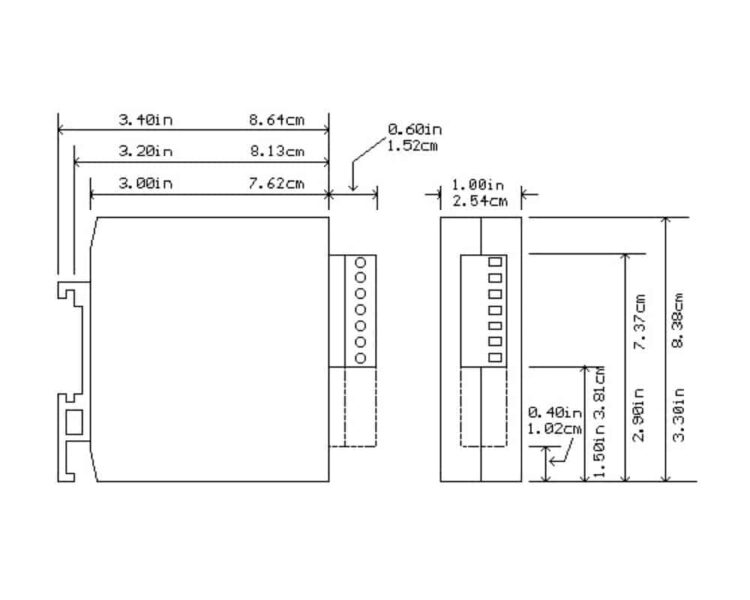

Dimensions 86.40 × 83.80 × 25.40 mm
Additional Features

Transparent RS-485 data repeater Baud rates 300 to 115.2k baud Isolated to 500Vrms Operating temperature of -25°C to +70°C

Series / Model

Power Requirements

Number of Channels

DGH DIN-100 Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
DGH DIN-100 Series Datasheet
DGH DIN-100 Series User Manual
Command set for DIN-100 Series
MODBUS RTU Function List
MODBUS RTU Protocol Overview

DGH DIN-192 RS-485 Repeater
