DGH D3200 Current Output Module

  • DGH

Product Features

  • 12-bit DAC, 1000 conversions per second
  • Accuracy: ±0.1% of FS maximum
  • Output Isolation of 500V rms
  • Settling time to 0.1% of FS: 300µs typical, 1ms maximum
  • Voltage levels of ±30V without damage
  • Temperature range of -25°C to +70°C

Applications

  • Non-compliant

The D3200 current output module is part of the DGH’s data acquisition module family. This output module converts digital ASCII signal from a host computer, received via RS-232 or RS-485 ports, to analog DC voltage output at the rate of 1000 conversions per second. Two output signal choices are supported (4-20mA or 0-20mA). The signals can then be used to control annunciators, acutators or other hardware. The D3200 module is a cost-effective model, ideal for simple step function control applications. These modules utilise a non-volatile EEPROM (Electrically Erasable Programmable Read Only Memory) to store all user-selectable settings, meaning the values are maintained in the event of power loss. The D3200 comes pre-set with default values of 300 baud, one start bit, eight data bits, one stop bit, no parity and any address recognized, but these values can be changed by the user. The modules are designed to be compatible with all popular computers utilising RS-232C or RS-485 ports and no software is necessary to start using them, although the utility software is provided. The D3200 can be mounted on a DIN-rail if required (MK-1 mounting kit required) and can be combined with other DGH modules to provide complete customised data acquisition system for given application.

  • Computer-to-analog voltage output module
  • Choice of RS-232 or RS-485 Input
  • Choice of 2 different outputs: 4-20mA or 0-20mA
  • Communicates using ASCII protocol
  • User-selectable features include analog input range, baud rate, parity type and others
  • Accuracy: ±0.1% of full scale range maximum
  • 12-bit output resolution
  • Span temperature coefficient: ±50ppm/°C maximum
  • 1000 conversions per second
  • Settling time: 300µs typical (1ms maximum)
  • Power requirements: 1W maximum
  • Temperature range -25°C to +70°C

The applications for the D3200 data acquisition modules include:

  • Motion control
  • Motor speed control
  • Robotic welding control
  • Interfaces to modems
  • Programmable analog source for product test

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg

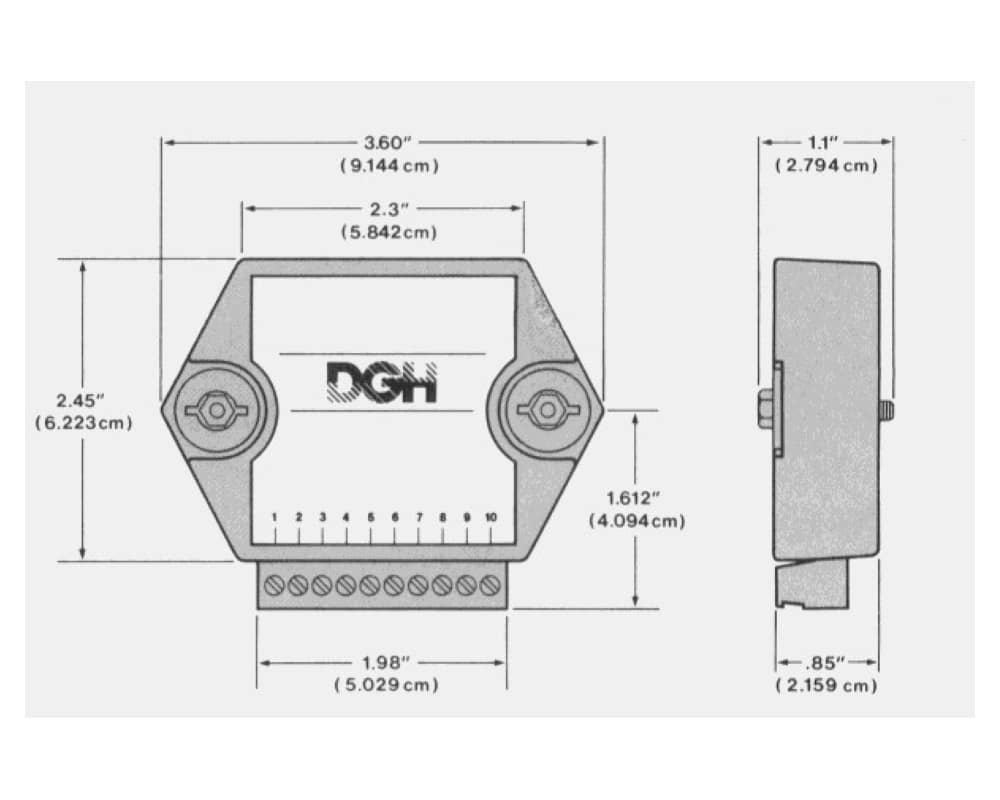

Dimensions 27.94 x 62.23 x 91.44mm
Input

,

Input/Output

,

Number of Channels

Output

,

Power Requirements

Series / Model

,

DGH D3000 & 4000 Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
DGH D3000 & D4000 Series Datasheet
DGH D3000 & D4000 Series User Manual
Command set for D3000 and D4000 series
