NVE ACT001-10E

  • NVE

Product Features

  • TMR isolated current sensor
  • Low current detection & measurement
  • On-chip current strap for precise operation
  • Linear range of −500mA to +500mA
  • Sensitivity of 0.04 V/V-mA
  • Ultraminiature DFN6 Package

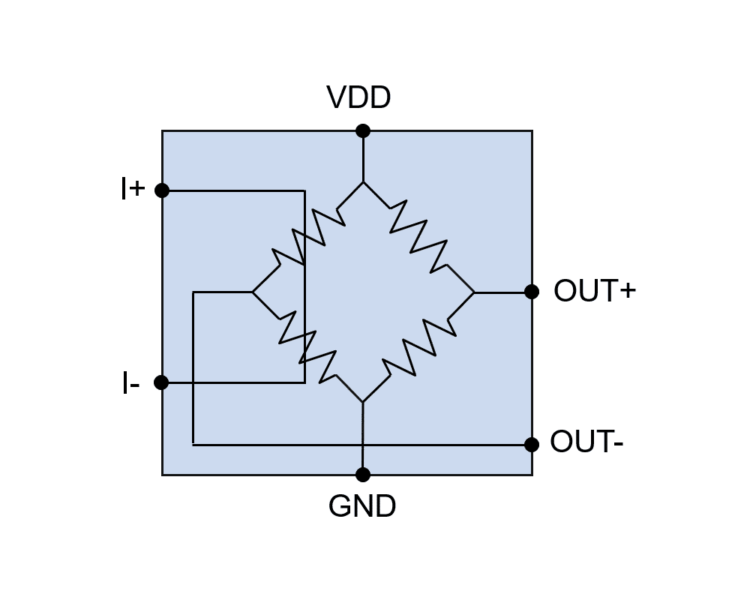

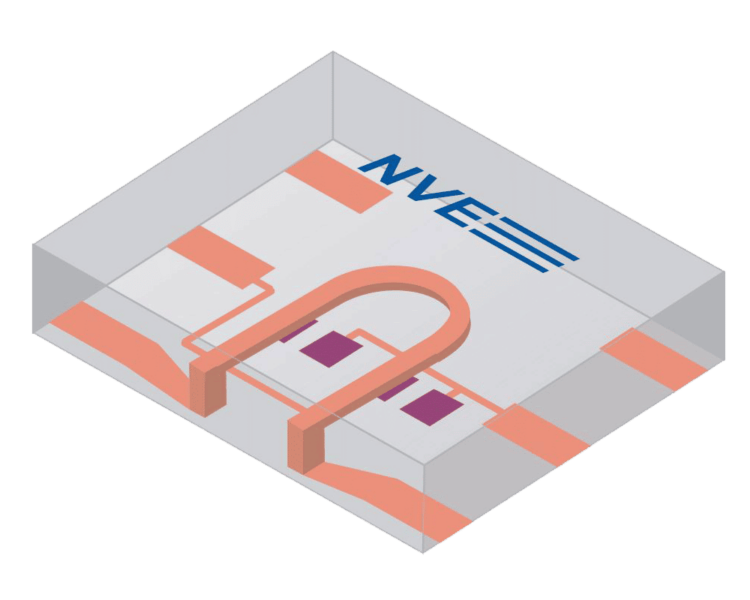

The ACT001-10E TMR isolated current sensor from NVE is a high-sensitivity, inline analog TMR current sensor for AC or DC measurements. An integrated current strap senses current, and a TMR bridge sensor element provides a Wheatstone bridge differential output. The output is bipolar and proportional to the current through the strap. The sensor has a -500mA to +500mA linear range, with a typical sensitivity of 0.04 mV/V-mA. The part comes in an ultraminiature 2.5mm x 2.5mm x 0.8mm DFN6 package.

  • TMR isolated current sensor
  • Low current detection & measurement
  • On-chip current strap for precise operation
  • Non-contact current sensing
  • Electrically isolated for removing ground loops
  • Linear range of −500mA to +500mA
  • Sensitivity of 0.04V/V-mA
  • Bridge Resistance of 10KΩ – 20kΩ at +25°C
  • Bridge supply voltage of +14V
  • Operating Temperature range -40°C to +150°C
  • Ratiometric output for power measurement
  • Measurement in AC or DC
  • Frequency response of 300KHz
  • Ultraminiature 2.5mm x 2.5mm x 0.8mm DFN6 Package

Typical applications for the NVE ACT001-10E TMR isolated current sensor include:

  • AC and DC motor control
  • Power measurement
  • Overcurrent protection
  • Battery management systems

NVE Corporation manufactures high-performance spintronic products including sensors and couplers that are used to acquire and transmit data. They offer smaller sizes, more precision, higher speed, and are more rugged than conventional devices. NVE parts are popular in industrial, scientific, and medical applications, as well as the emerging Industrial Internet of Things. Please visit www.nve.com for more information about NVE Corporation.

Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

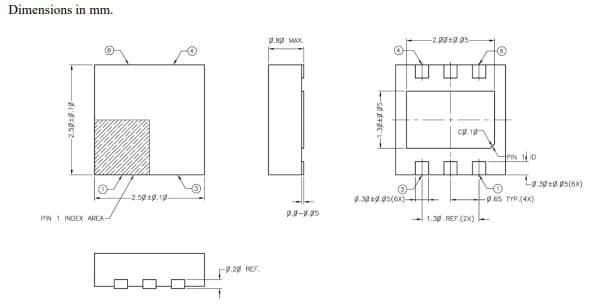

Dimensions 0.80 x 2.50 x 2.50mm
