Emerson Paine™ 310-38-520 Series

  • Paine

Product Features

  • High pressure and temperature transducer which is resistant to highly corrosive media
  • Class A Pt1000 RTD included
  • Small body diameter
  • Customisable transducer options available for fit-for-use designs

Applications

  • Oil & Gas

Description

Emerson’s Paine™ 310-38-520 high pressure and high temperature transducer provides real-time measurements in corrosive environments. Available with pressure ranges up to 0 – 35,000 PSIA and temperatures from -40°C up to +218°C, this high precision transducer from Emerson offers a mV/V nominal output with a total error band of ±0.02% of full scale. Engineered with a compact, all-welded, sealed construction, this rugged device is well-suited for pressure and temperature monitoring in oil and gas applications, including down-hole and drilling, as well as other industrial applications.

  • High pressure and temperature transducer
  • Pressure ranges available from 0 – 5,000 PSIA to 0 – 35,000 PSIA
  • Temperature range of −40°C to +218°C
  • Calibrated temperature range of +23°C to +176°C
  • Class A Pt1000 RTD included
  • Accuracy of 0.02% full scale
  • Small body diameter
  • Resistant to highly corrosive media
  • Output of mV/V
  • Process media is compatible with alloy UNS NO7718 solution annealed and aged to a minimum hardness of 40HRC Inconel® 718
  • Provides real-time pressure and temperature measurement for enhanced control and monitoring

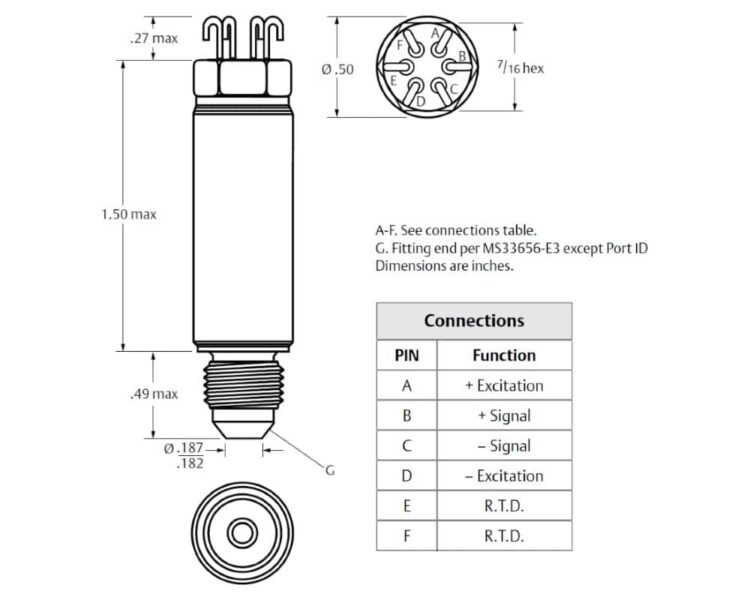

  • Available in a small, ½ inch diameter form factor
  • Rugged, all-welded, sealed construction performs well in highly corrosive environments
  • Customisation options available for fit-for-use designs

Potential applications for the Paine™ 310-38-520 series include:

  • Oil and gas exploration and production
  • MWD, PWD and LWD tools
  • Wellhead and pump station monitoring
  • Geothermal and power generation
  • OEM and end-user applications

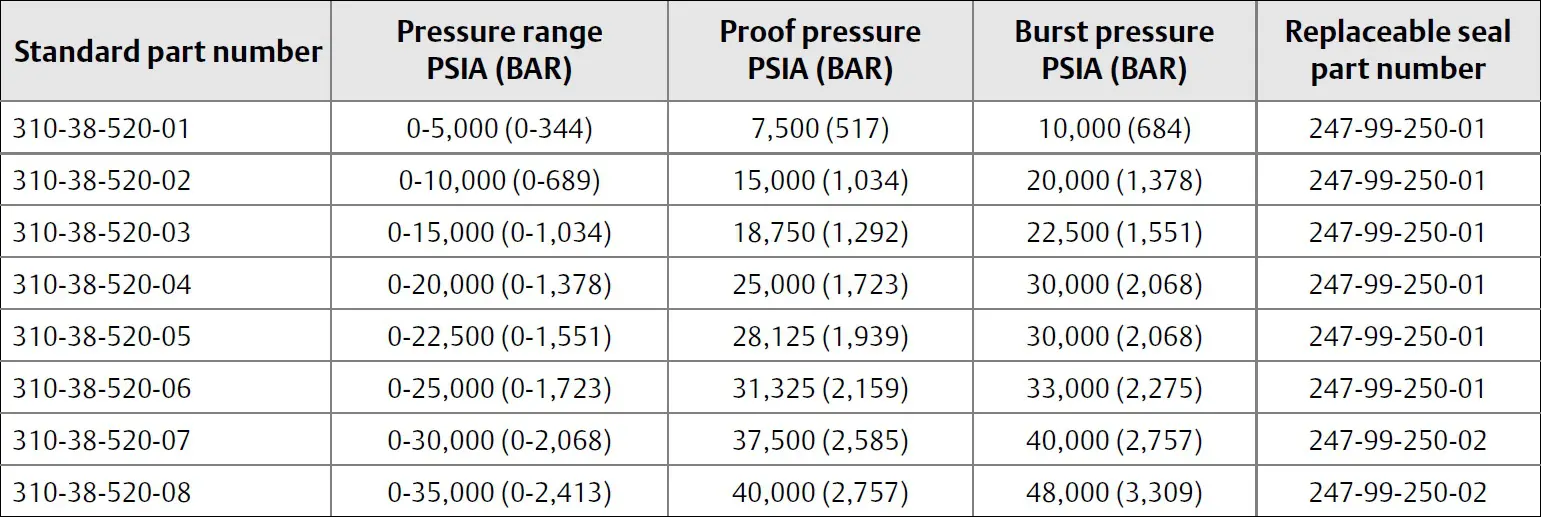

Please see the below pressure table for the Paine™ 310-38-520 series, which includes details on standard products available as well as proof and burst pressure rating:

Paine 310-38-520 Specifications


Specifications

Weight 0.00000 kg
Dimensions 0.50 × 0.00 × 1.50 mm
Series / Model

Accuracy

Additional Features

High pressure and temperature transducer which is resistant to highly corrosive mediaClass A Pt1000 RTD includedSmall body diameterCustomisable transducer options available for fit-for-use designs

Output

Temperature Range (°C)

Process Media

Pressure Range

, , , , , , ,

Emerson Paine 310-38-520 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Emerson Paine™ 310-38-520 high pressure and temperature transducer series datasheet
