NVE ABT002-00E TMR Gear-Tooth Sensor

nve abt002-00e tmr gear tooth sensor

Dual-channel TMR gear-tooth sensor for module 0.2 gears
Target gear pitch 0.628mm, diametrical pitch 127
Maximum output 600mVpp/V typical when pitch matched to the gear
Sensor element linearity 1% maximum, hysteresis 1% maximum
Operating frequency to 350kHz
Supply voltage 0 to 10V
Operating temperature −50°C to +150°C
3 x 3mm MSOP8 package, RoHS

NVE ABT003-00E TMR Gear-Tooth Sensor

nve abt003-00e tmr gear tooth sensor

Dual-channel TMR gear-tooth sensor for module 0.3 gears
Target gear pitch 0.942mm, diametrical pitch 84.7
Maximum output 600mVpp/V typical when pitch matched to the gear
Sensor element linearity 1% maximum, hysteresis 1% maximum
Operating frequency to 350kHz
Supply voltage 0 to 10V
Operating temperature −50°C to +150°C
3 x 3mm MSOP8 package, RoHS

NVE ABT004-00E TMR Gear-Tooth Sensor

nve abt004-00e tmr gear tooth sensor

Dual-channel TMR gear-tooth sensor for module 0.4 gears
Target gear pitch 1.257mm, diametrical pitch 63.5
Maximum output 600mVpp/V typical when pitch matched to the gear
Sensor element linearity 1% maximum, hysteresis 1% maximum
Operating frequency to 350kHz
Supply voltage 0 to 10V
Operating temperature −50°C to +150°C
3 x 3mm MSOP8 package, RoHS

Talk to an Engineer

Get help specifying or customising the right product for your application.

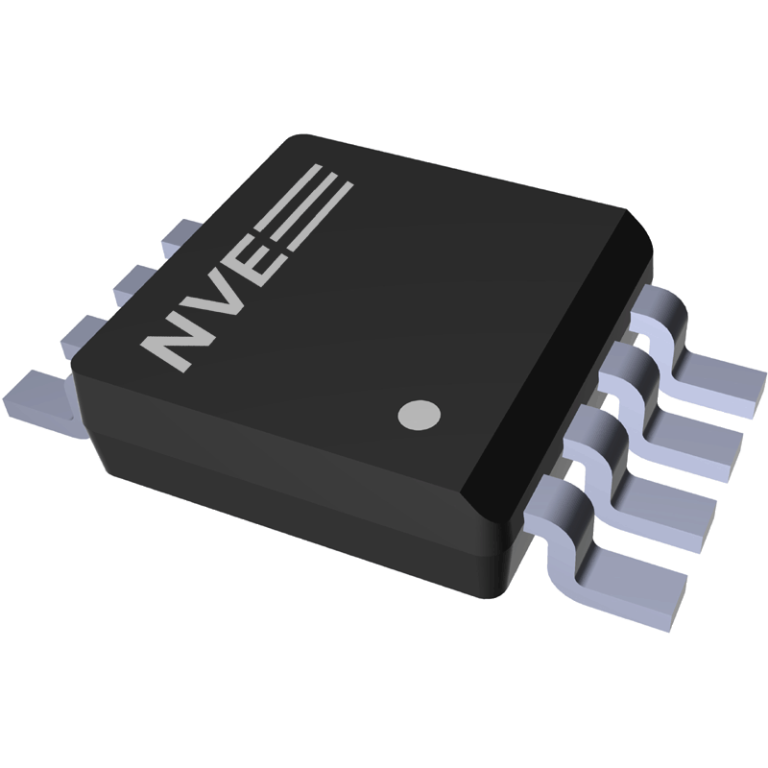

NVE ABT005-00E TMR Gear-Tooth Sensor

nve abt005-00e tmr gear tooth sensor

Dual-channel TMR gear-tooth sensor for module 0.5 gears
Target gear pitch 1.571mm, diametrical pitch 50.8
Maximum output 600mVpp/V typical when pitch matched to the gear
Sensor element linearity 1% maximum, hysteresis 1% maximum
Operating frequency to 350kHz
Supply voltage 0 to 10V
Operating temperature −50°C to +150°C
3 x 3mm MSOP8 package, RoHS

NVE ABT008-03E TMR Gear-Tooth Sensor

nve abt008-03e tmr gear tooth sensor

Dual-channel TMR gear-tooth sensor for module 0.8 gears
Target gear pitch 2.513mm, diametrical pitch 31.8
Maximum output 600mVpp/V typical when pitch matched to the gear
Sensor element linearity 1% maximum, hysteresis 1% maximum
Operating frequency to 350kHz
Supply voltage 0 to 10V
Operating temperature −50°C to +150°C
4 x 10mm SOIC16 package, RoHS
Requires a special order for a first-time build

NVE ABT010-03E TMR Gear-Tooth Sensor

nve abt010-03e tmr gear tooth sensor

Dual-channel TMR gear-tooth sensor for module 1 gears
Target gear pitch 3.142mm, diametrical pitch 25.4
Maximum output 600mVpp/V typical when pitch matched to the gear
Sensor element linearity 1% maximum, hysteresis 1% maximum
Operating frequency to 350kHz
Supply voltage 0 to 10V
Operating temperature −50°C to +150°C
4 x 10mm SOIC16 package, RoHS
Requires a special order for a first-time build

NVE ABT020-03E TMR Gear-Tooth Sensor

nve abt020-03e tmr gear tooth sensor

Dual-channel TMR gear-tooth sensor for module 2 gears
Target gear pitch 6.283mm, diametrical pitch 12.7
Maximum output 600mVpp/V typical when pitch matched to the gear
Sensor element linearity 1% maximum, hysteresis 1% maximum
Operating frequency to 350kHz
Supply voltage 0 to 10V
Operating temperature −50°C to +150°C
4 x 10mm SOIC16 package, RoHS
