Susumu PCS Series

Susumu PCS Series

The PCS series from Susumu is a high power thin film chip terminator. The terminator has an aluminium oxide substrate with an efficient heat dissipation that provides a rated power range of between 0.2W and 10W, anti-surge and overload protection. The Susumu PCS series has a frequency range of DC to 15GHz having wraparound terminals which provides easy and reliable soldering.

  • Surface-mount high power thin film chip terminator
  • Rated power between 0.2W and 10W available
  • Voltage standing wave ratio (VSWR) 1.2 to 1.5 (depending on the frequency required)
  • Operating frequency of DC to 15GHz
  • Chip sizes available are 0402, 0603, 0805, 1206, 2010 and 2512
  • Rated operating temperature +70°C
  • Operating temperature range is −55°C to +125°C
  • Wrap around terminals for easy and reliable soldering
  • Efficient heat dissipation

The thin film does not have any innate stress. Therefore, repeated power cycling does not fatigue the element and causes no change in impedance.

The Susumu PCS series surface-mount high power thin film chip terminators are ideal for the following applications:

  • Wireless base station
  • Wireless communication devices
  • High power frequency source

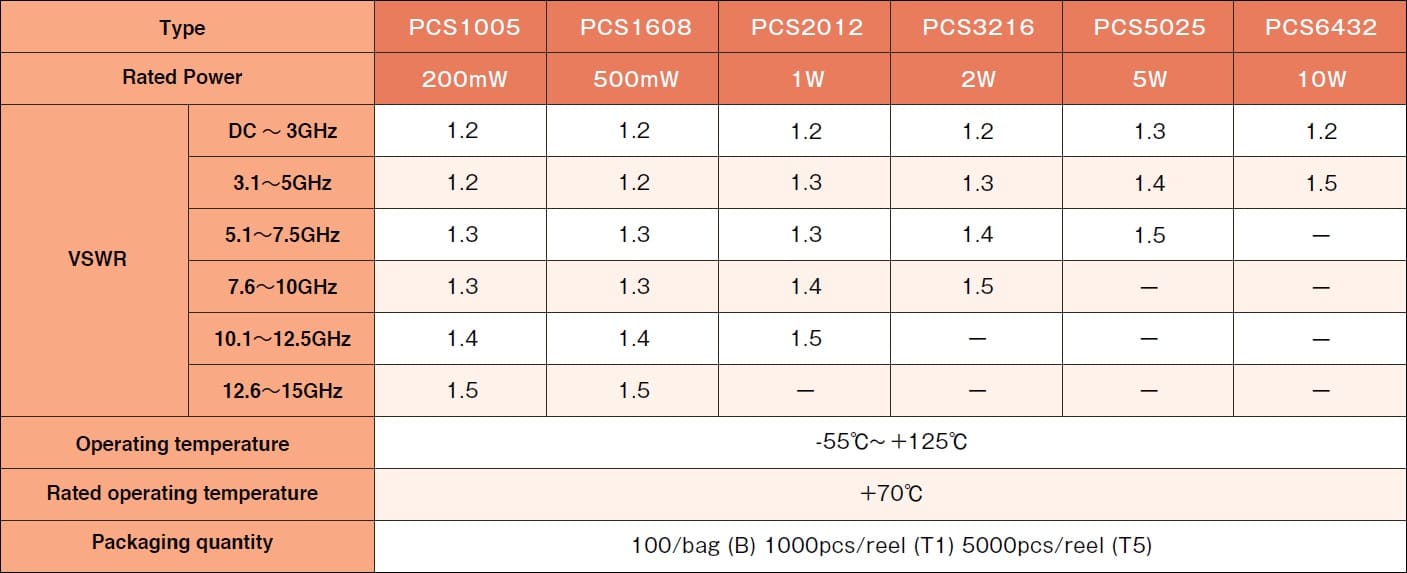

The below table gives the full specifications of the Susumu PCS series:

Susumu PCS1005 Specifications
Specifications
Additional Features
  • Surface-mount high power thin film chip terminator
  • Rated operating temperature +70°C
  • Wrap around terminals for easy and reliable soldering
  • Aluminum oxide substrate and efficient heat dissipation
Maximum Power Rating
  • 0.2W
  • 0.5W
  • 1W
  • 2W
  • 5W
  • 10W
    Operating Frequency DC to 15GHz
    Operating Temperature −55°C to +125°C
    Package/Size
    • 0402
    • 0603
    • 0805
    • 1206
    • 2010
    • 2512

      We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





      DOCUMENTATION
      PDF Document Susumu HPT and PCS high power thin film chip terminator series datasheet
      PDF Document Susumu product selection guide and handling care information
      PDF Document Susumu complete catalogue







      VIDEOS
      Susumu overview

      A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.
      VIDEOS
      Susumu overview

      A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

      This product is available fully compliant to the RoHS EU directive 2011/65/EU.
