2W series

  • Resi

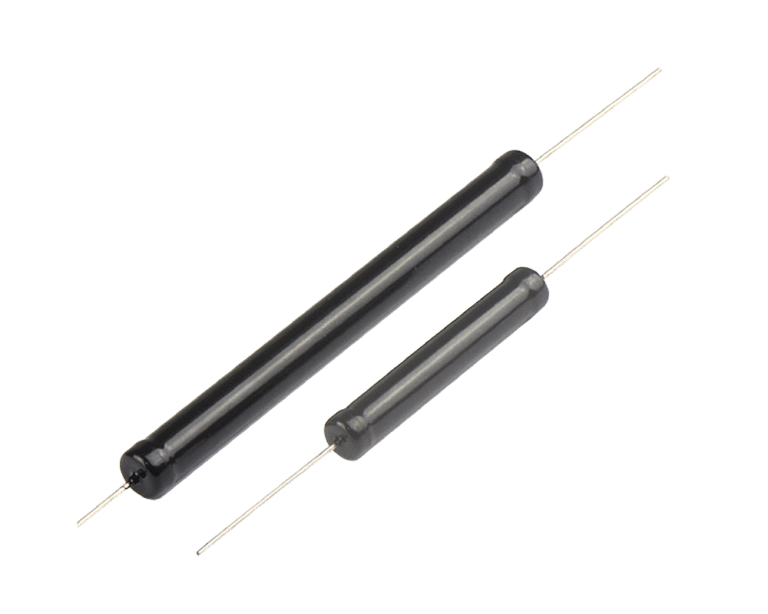

Resi HVLR Series

High voltage thick film resistor with up to 48kV operating voltage, 1kฮฉ to 1Gฮฉ resistance range and axial mounting for reliable HV circuit design.
  • RARA

RARA SMF Series

  • High-precision metal film surface-mount resistors
  • Power ratings available: 2W, 3W and 5W
  • Resistance range: 10ฮฉ to 2Mฮฉ
  • Tight tolerances: ยฑ1% and ยฑ5%
  • Temperature coefficient: 200 ppm/ยฐC
  • Flameproof UL94V0 moulded package for added safety
  • RARA

RARA SMW Series

  • High-power wire wound surface-mount resistors
  • Power ratings available: 2W, 3W, and 5W
  • Wide resistance range: 0.1ฮฉ to 500ฮฉ
  • Precision tolerances: ยฑ1% & ยฑ5%
  • Temperature coefficient: 200 ppm/ยฐC
  • Flameproof UL94V0 molded package for high safety
  • Caddock

Caddock 1789 Series

  • Precision resistor network
  • Resistance range from 0.5ฮฉ to 10kฮฉ
  • Tolerance of ยฑ0.05% to ยฑ1.0%
  • TCR of ยฑ50, ยฑ80 or ยฑ100 ppm/ยฐC
  • Power rating of 100mW up to 2W per resistor
  • Temperature range from 0ยฐC to +70ยฐC
  • Caddock

Caddock MG Standard Range

  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 600V up to 30kV *
  • Resistance values from 200ฮฉ up to 2Gฮฉ *
  • Tolerances of ยฑ0.1%, ยฑ0.25%, ยฑ0.5% and ยฑ1%
  • TCR as tight as ยฑ80 ppm/ยฐC from -15ยฐC to +105ยฐC
  • Maximum power rating from 0.5W up to 15W *
  • Operating Temperature Range of -55ยฐC to +225ยฐC
* Dependant on selected resistor model
  • Caddock

Caddock MG -15 Range

  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 960V up to 48kV *
  • Resistance values from 6.5Mฮฉ up to 2Gฮฉ *
  • Tolerances of ยฑ1% and ยฑ5%
  • TCR as tight as ยฑ80 ppm/ยฐC from -15ยฐC to +105ยฐC
  • Maximum power rating from 0.5W up to 15W *
  • Operating Temperature Range of -55ยฐC to +225ยฐC
* Dependant on selected resistor model
  • Caddock

Caddock MG Extended Range

  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 2kV up to 30kV *
  • Resistance values from 600ฮฉ up to 10Gฮฉ *
  • Tolerances of ยฑ1% and ยฑ5%
  • TCR as tight as ยฑ80 ppm/ยฐC from +25ยฐC to +105ยฐC
  • Operating Temperature Range of -55ยฐC to +225ยฐC
  • Maximum power rating from 1.5W up to 15W *
* Dependant on selected resistor model
  • Caddock

Caddock MS Series

  • Precision high temperature power axial leaded through-hole resistor
  • Maximum operating voltage up to 6kV
  • Maximum operating temperature up to +275ยฐC
  • Utilises Caddock’s Micronoxยฎ resistance film for outstanding stability when exposed to a high ambient temperature, thermal shock and high power densities
  • MS resistors have demonstrated excellent long-term stability of 0.05% per 1,000 hours over extended life
  • Caddock’s non-inductive design available on some models
  • Caddock

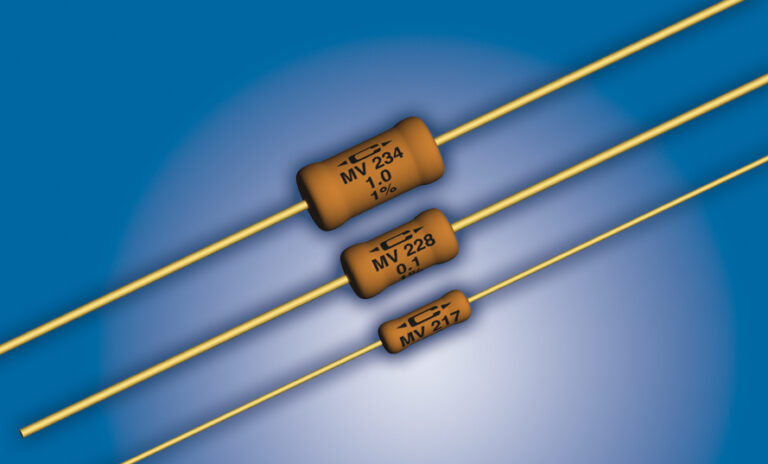

Caddock MV Series

  • Low resistance high temperature power axial leaded through-hole resistor
  • Maximum operating temperature up to +275ยฐC
  • Utilises Caddock’s Micronoxยฎ resistance film
  • Five sizes and power ratings
  • Utilises Caddock’s non-inductive design
  • Caddock

Caddock MX500 Series

  • High ohmic high voltage axial leaded through-hole resistor
  • Maximum operating temperature up to +175ยฐC
  • Utilises Caddock’s Micronoxยฎ resistance film
  • Five sizes and voltage ratings from 7.5kV up to 32kV
  • Utilises Caddock’s non-inductive design
  • Caddock

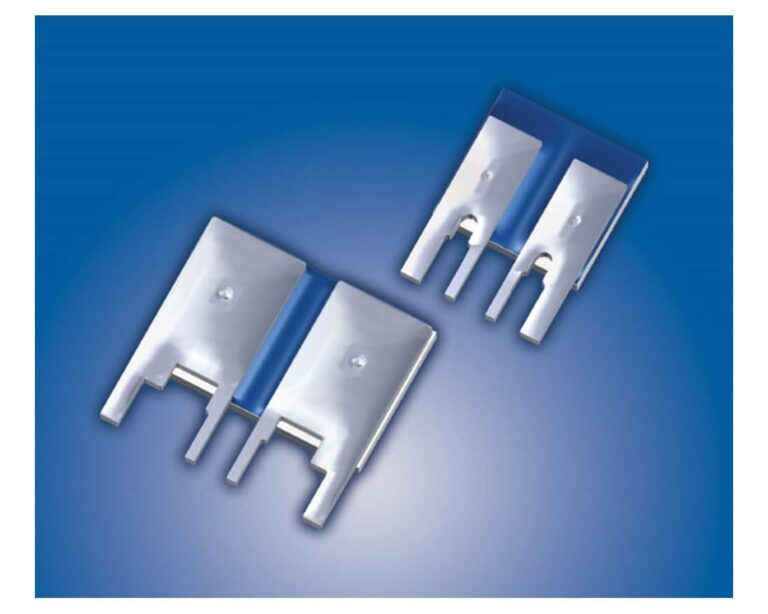

Caddock SR20 Series

  • Low resistance precision current sense through-hole resistor
  • 4-terminal (Kelvin terminals) design
  • Compact footprint
  • Utilises Caddock’s Micronoxยฎ resistance film
  • Temperature range up to +150ยฐC
  • Utilises Caddock’s non-inductive design
  • Caddock

Caddock TG Series

  • Precision high voltage axial leaded through-hole resistor
  • Resistance range: 25 kฮฉ to 1,000 Mฮฉ
  • Temperature coefficient: ยฑ25 ppm/ยฐC from -55ยฐC to +125ยฐC
  • Load life stability: 0.25% per 1,000 hours at +125ยฐC
  • Resistance tolerance options: ยฑ0.1%, ยฑ0.25%, ยฑ0.5%, ยฑ1%
  • Maximum continuous operating voltage up to 30 kV
  • -15 series increases maximum voltage by 60%
  • Isabellenhรผtte

Isabellenhรผtte BRS Series

  • Current sensing resistor
  • 3812 chip size
  • Resistance range from 0.002ฮฉ to 0.025ฮฉ
  • Tolerances from ยฑ1%
  • TCR from ยฑ100 ppm/ยฐC
  • Power rating of 2W (at 120ยฐC)
  • Temperature range from -55ยฐC to +170ยฐC
  • Compliant
Isabellenhรผtte BRS Series
  • Isabellenhรผtte

Isabellenhรผtte BVF Series

  • Current sensing resistor
  • Resistance values of 0.001ฮฉ or 0.0015ฮฉ
  • Tolerances of ยฑ1.0% and ยฑ5.0%
  • TCR value <ยฑ70 ppm/ยฐC
  • Power rating of 3W (up to +145ยฐC)
  • Temperature range from -65ยฐC to +175ยฐC
  • Compliant
Isabellenhรผtte BVF Series
  • Isabellenhรผtte

Isabellenhรผtte BVT Series

  • Current sensing resistor
  • Surface-mount 2512 chip size
  • Resistance range from 0.0002ฮฉ to 0.0068ฮฉ
  • Tolerances of ยฑ1.0% and ยฑ5.0%
  • TCR from ยฑ50 ppm/ยฐC
  • Power rating up to 10W at +70ยฐC
  • Temperature range from -65ยฐC to +170ยฐC
  • Compliant
Isabellenhรผtte BVT Series
  • Isabellenhรผtte

Isabellenhรผtte CMP Series

  • Current sensing resistor
  • Surface-mount 2010 chip size
  • Resistance range from 0.01ฮฉ to 0.5ฮฉ
  • Tolerances of ยฑ1% and ยฑ5%
  • TCR of <50 ppm/ยฐC
  • Power rating 2W (at +70ยฐC)
  • Temperature range from -65ยฐC to +170ยฐC
  • Compliant
Isabellenhรผtte CMP Series

Resi HVLR Series

Planar Non-inductive Power Resistor
High voltage thick film resistor with up to 48kV operating voltage, 1kฮฉ to 1Gฮฉ resistance range and axial mounting for reliable HV circuit design.

RARA SMF Series

Power Metal Film Chip Resistors
  • High-precision metal film surface-mount resistors
  • Power ratings available: 2W, 3W and 5W
  • Resistance range: 10ฮฉ to 2Mฮฉ
  • Tight tolerances: ยฑ1% and ยฑ5%
  • Temperature coefficient: 200 ppm/ยฐC
  • Flameproof UL94V0 moulded package for added safety

RARA SMW Series

Power Wire Wound Chip Resistors
  • High-power wire wound surface-mount resistors
  • Power ratings available: 2W, 3W, and 5W
  • Wide resistance range: 0.1ฮฉ to 500ฮฉ
  • Precision tolerances: ยฑ1% & ยฑ5%
  • Temperature coefficient: 200 ppm/ยฐC
  • Flameproof UL94V0 molded package for high safety

Caddock 1789 Series

Custom Low Resistance Value, Precision SIP Resistor Networks
  • Precision resistor network
  • Resistance range from 0.5ฮฉ to 10kฮฉ
  • Tolerance of ยฑ0.05% to ยฑ1.0%
  • TCR of ยฑ50, ยฑ80 or ยฑ100 ppm/ยฐC
  • Power rating of 100mW up to 2W per resistor
  • Temperature range from 0ยฐC to +70ยฐC

Caddock MG Standard Range

Precision High Voltage Resistors
  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 600V up to 30kV *
  • Resistance values from 200ฮฉ up to 2Gฮฉ *
  • Tolerances of ยฑ0.1%, ยฑ0.25%, ยฑ0.5% and ยฑ1%
  • TCR as tight as ยฑ80 ppm/ยฐC from -15ยฐC to +105ยฐC
  • Maximum power rating from 0.5W up to 15W *
  • Operating Temperature Range of -55ยฐC to +225ยฐC
* Dependant on selected resistor model

Caddock MG -15 Range

Precision High Voltage Resistors
  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 960V up to 48kV *
  • Resistance values from 6.5Mฮฉ up to 2Gฮฉ *
  • Tolerances of ยฑ1% and ยฑ5%
  • TCR as tight as ยฑ80 ppm/ยฐC from -15ยฐC to +105ยฐC
  • Maximum power rating from 0.5W up to 15W *
  • Operating Temperature Range of -55ยฐC to +225ยฐC
* Dependant on selected resistor model

Caddock MG Extended Range

Precision High Voltage Resistors
  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 2kV up to 30kV *
  • Resistance values from 600ฮฉ up to 10Gฮฉ *
  • Tolerances of ยฑ1% and ยฑ5%
  • TCR as tight as ยฑ80 ppm/ยฐC from +25ยฐC to +105ยฐC
  • Operating Temperature Range of -55ยฐC to +225ยฐC
  • Maximum power rating from 1.5W up to 15W *
* Dependant on selected resistor model

Caddock MS Series

Precision Power Film Resistors
  • Precision high temperature power axial leaded through-hole resistor
  • Maximum operating voltage up to 6kV
  • Maximum operating temperature up to +275ยฐC
  • Utilises Caddock’s Micronoxยฎ resistance film for outstanding stability when exposed to a high ambient temperature, thermal shock and high power densities
  • MS resistors have demonstrated excellent long-term stability of 0.05% per 1,000 hours over extended life
  • Caddock’s non-inductive design available on some models

Caddock MV Series

Low Resistance Power Film Resistors
  • Low resistance high temperature power axial leaded through-hole resistor
  • Maximum operating temperature up to +275ยฐC
  • Utilises Caddock’s Micronoxยฎ resistance film
  • Five sizes and power ratings
  • Utilises Caddock’s non-inductive design

Caddock MX500 Series

Precision High Voltage Resistors
  • High ohmic high voltage axial leaded through-hole resistor
  • Maximum operating temperature up to +175ยฐC
  • Utilises Caddock’s Micronoxยฎ resistance film
  • Five sizes and voltage ratings from 7.5kV up to 32kV
  • Utilises Caddock’s non-inductive design

Caddock SR20 Series

Precision Current Sense Resistors
  • Low resistance precision current sense through-hole resistor
  • 4-terminal (Kelvin terminals) design
  • Compact footprint
  • Utilises Caddock’s Micronoxยฎ resistance film
  • Temperature range up to +150ยฐC
  • Utilises Caddock’s non-inductive design

Caddock TG Series

Low TC Precision High Voltage Resistors
  • Precision high voltage axial leaded through-hole resistor
  • Resistance range: 25 kฮฉ to 1,000 Mฮฉ
  • Temperature coefficient: ยฑ25 ppm/ยฐC from -55ยฐC to +125ยฐC
  • Load life stability: 0.25% per 1,000 hours at +125ยฐC
  • Resistance tolerance options: ยฑ0.1%, ยฑ0.25%, ยฑ0.5%, ยฑ1%
  • Maximum continuous operating voltage up to 30 kV
  • -15 series increases maximum voltage by 60%

Isabellenhรผtte BRS Series

Current Sensing Precision Resistor
  • Current sensing resistor
  • 3812 chip size
  • Resistance range from 0.002ฮฉ to 0.025ฮฉ
  • Tolerances from ยฑ1%
  • TCR from ยฑ100 ppm/ยฐC
  • Power rating of 2W (at 120ยฐC)
  • Temperature range from -55ยฐC to +170ยฐC

Isabellenhรผtte BVF Series

Current Sensing Precision Resistor
  • Current sensing resistor
  • Resistance values of 0.001ฮฉ or 0.0015ฮฉ
  • Tolerances of ยฑ1.0% and ยฑ5.0%
  • TCR value <ยฑ70 ppm/ยฐC
  • Power rating of 3W (up to +145ยฐC)
  • Temperature range from -65ยฐC to +175ยฐC

Isabellenhรผtte BVT Series

Current Sensing Precision Resistor
  • Current sensing resistor
  • Surface-mount 2512 chip size
  • Resistance range from 0.0002ฮฉ to 0.0068ฮฉ
  • Tolerances of ยฑ1.0% and ยฑ5.0%
  • TCR from ยฑ50 ppm/ยฐC
  • Power rating up to 10W at +70ยฐC
  • Temperature range from -65ยฐC to +170ยฐC

Isabellenhรผtte CMP Series

Current Sensing Precision Resistor
  • Current sensing resistor
  • Surface-mount 2010 chip size
  • Resistance range from 0.01ฮฉ to 0.5ฮฉ
  • Tolerances of ยฑ1% and ยฑ5%
  • TCR of <50 ppm/ยฐC
  • Power rating 2W (at +70ยฐC)
  • Temperature range from -65ยฐC to +170ยฐC
