The YJP3216 series of high current chip jumpers from Susumu help the design engineers to simplify power line change, looping and circuit design when changing current, reduce the voltage drop/current loss in high current circuit. Highly stable within operating temperature of −40°C to +125°C and halogen free.

  • Surface-mounted high current chip jumpers
  • Resistance value 0.2±0.1µΩ
  • Rated maximum current 20A
  • Halogen free
  • Chip size of 1206
  • Operating temperature range are −40°C to +125°C
  • Help reduce the voltage drop/current loss in high current circuit

Susumu YJP3216 series high current chip jumpers are ideal for the following applications:

  • Automotive electronics
  • Mobile phones
  • Smart phones
  • Power sources
  • PCs and servers

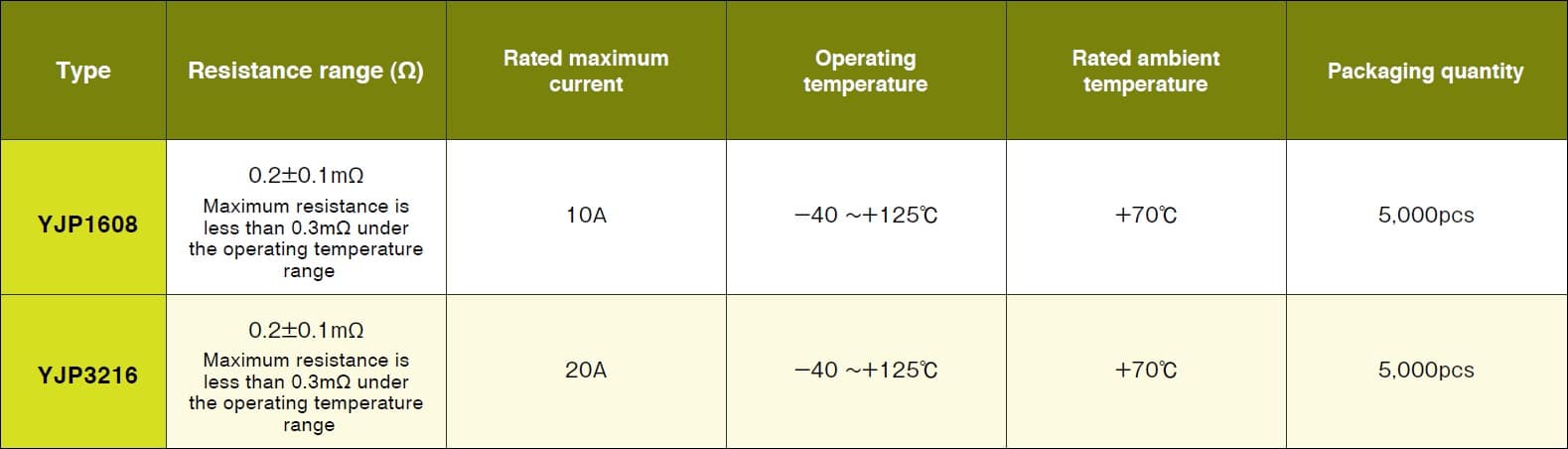

The below table gives the full specifications of the Susumu YJP Series including the YJP3216:

Susumu YJP3216 Specifications
Specifications
Additional Features
  • Surface-mount current chip jumper
  • Help to reduce the voltage drop/current loss in high current circuit
Current Rating 20A
Maximum Resistance 0.2 ±0.1µΩ
Minimum Resistance 0.2 ±0.1µΩ
Operating Temperature −40°C to +125°C
Package/Size 1206

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Susumu YJP high current zero ohm jumper chip resistor series datasheet
PDF Document Susumu product selection guide and handling care information
PDF Document Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.
VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
