| Weight | 0.00000 kg |
|---|---|
| Dimensions | 0.30 x 0.80 x 1.60mm |
| Current Rating | |
| Maximum Resistance | 300µΩ |
| Minimum Resistance | 100µΩ |
| Mounting / Size | |
| Series / Model | |
| Temperature Range | -40 to +125°C |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

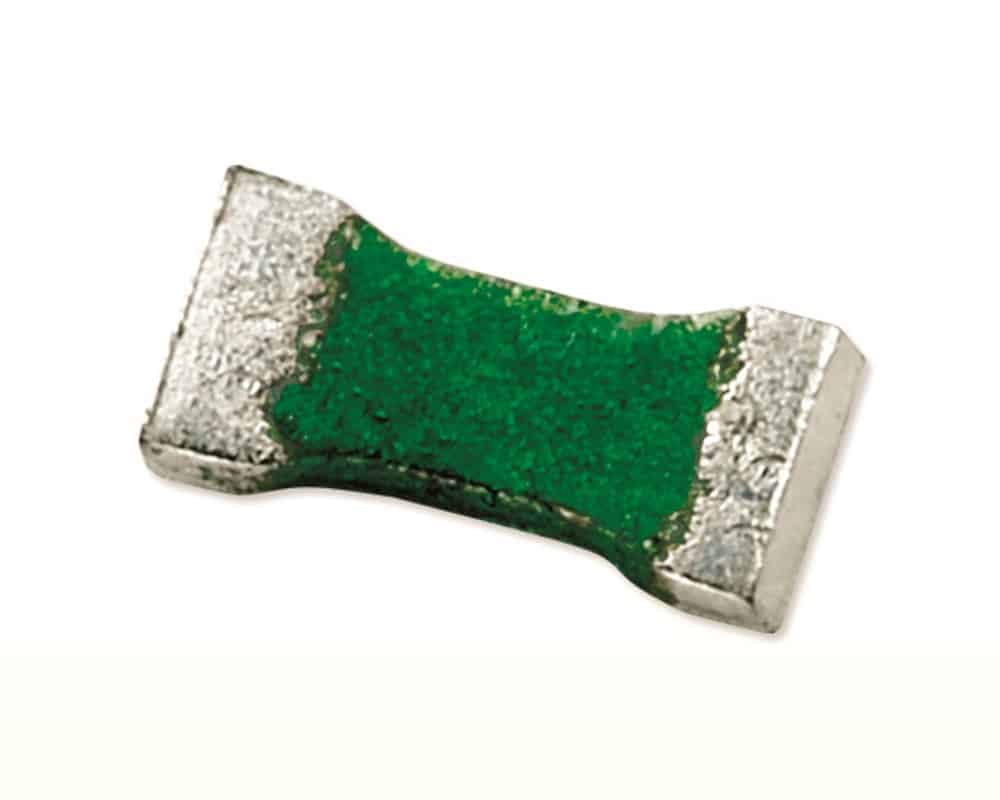

The YJP1608 series of high current chip jumpers from Susumu help the design engineers to simplify power line change, looping and circuit design when changing current, reducing the voltage drop/current loss in high current circuit. Highly stable within operating temperature of −40°C to +125°C and halogen-free.
Susumu YJP1608 series high current chip jumpers are ideal for the following applications:

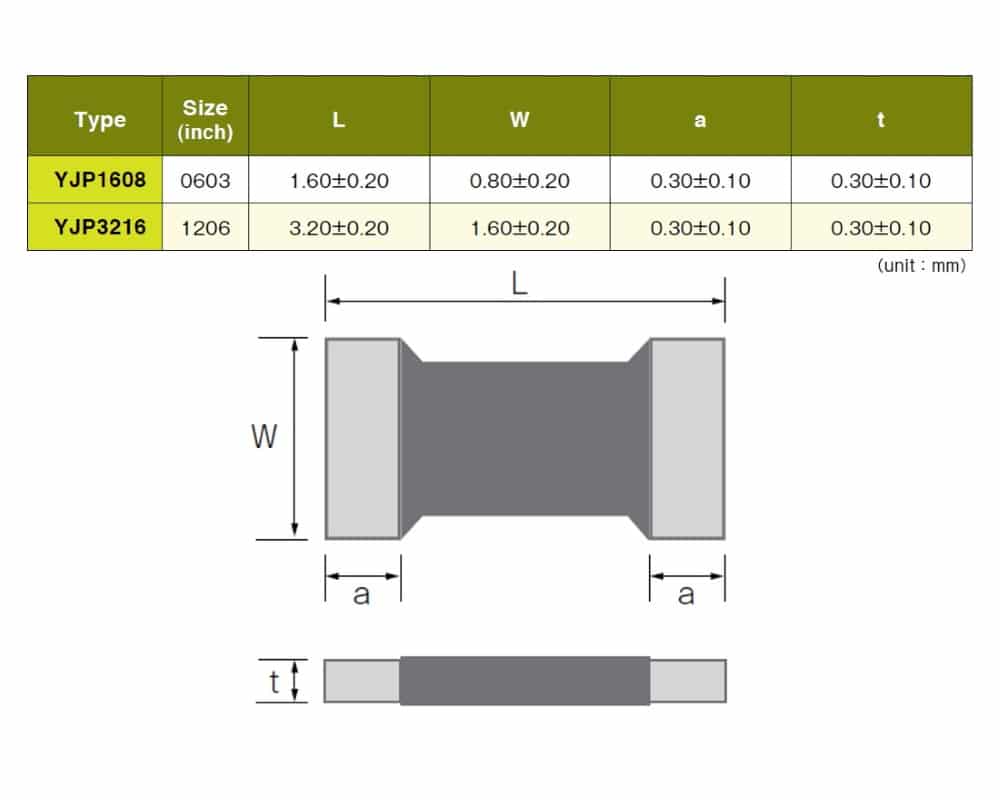

The below table gives the full specifications of the Susumu YJP Series including the YJP1608:
