20A series
- Current sensing precision resistor
- 2-terminal surface-mount 2010 chip size
- Resistance range from 0.005Ω to 1Ω
- Tolerances of ±1% or ±5%
- TCR value of <±20 ppm/°C
- Power rating 3W (at +70°C)
- Temperature range from -65°C to +170°C
- Base mounted shunt
- Output rating of 0.05V or 0.1V
- UL listed
- Manganin® resistive element
- Dielectric strength of 750VDC (terminal block to base)
- Temperature range of -40° to +60°C
- Base mounted shunt
- Output rating of 0.05V or 0.1V
- Manganin® resistive element
- Calibration certificate available
- Temperature range of +30° to +70°C

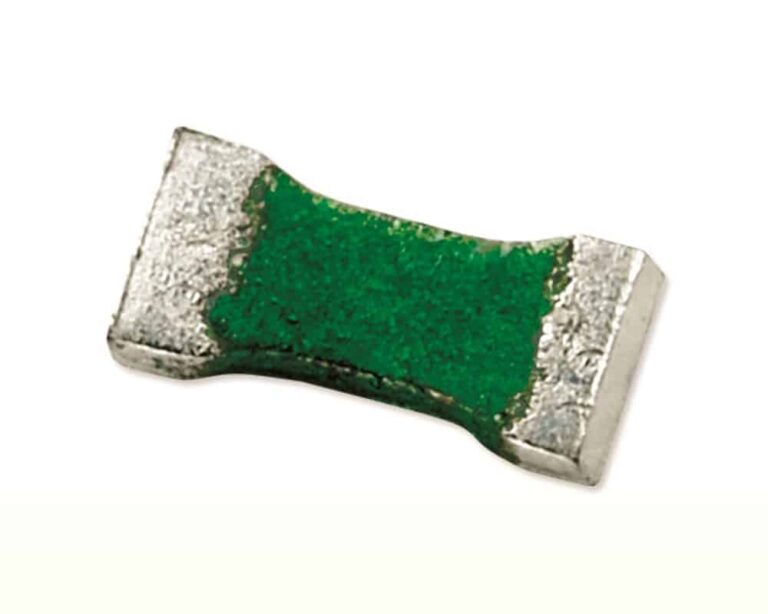

- Surface-mount current chip jumper
- Help to reduce the voltage drop/current loss in high current circuit
