Cynergy3 IWTTU Series

Cynergy3 IWTTU Series

The IWTTU series of wireless industrial temperature transducers from Cynergy3 utilises J or K type thermocouples or PT100 RTD sensor to offer an excellent cost-effective alternative to traditional wired transducers in inaccessible or expensive installation environments. The sensors feature accuracy as low as <±0.1% of the full scale, temperature coefficient of ±500ppm/°C and up to 750m line-of-sight range. The IWTTU series' user-selectable features include transmission update rates, output (4-20mA or 1-5V), and configuration (single or 5 channel; depending on receiver used). The IWTTU series is designed to be paired with one of the IWR family of wireless receivers for simple plug-and-play temperature measurement solution; a compression fitting is available to allow easy alignment of the head with the receiver. The sensors are housed within an acetal body, making them suitable to use in harsh environments. Each device comes temperature compensated, calibrated and fully traceable.

  • Industrial wireless temperature transducers
  • Selection of type J-type thermocouple (0-1200°C range), K-type thermocouple (0-1350°C range) or PT100 RTD sensor (-200 - +800°C range)
  • Acetal housing suitable for use in harsh environments
  • Accuracy <±0.1% of the full scale (non-linearity and hysteresis)
  • Operating temperature range (ambient temperature) of -20°C to 50°C
  • Battery life up to 5 years with 10s update rate
  • Process connection via 1/4" NPT male

The IWTTU series of temperature transducers is available in a range of input and sheath length options. Further customisation is available on this product - speak to our technical sales team to discuss your requirement.

Typical applications for the Cynergy3 IWTTU pressure transducer series include:

  • Simple cable replacement installation - dispense with expensive cable runs
  • Environmental monitoring - pumping stations, sewage plants, water treatment etc.
  • Facilities management - boiler rooms, plant hydraulics, plant pneumatics
  • Asset monitoring - tank farms, process plants, HVAC and building management
  • Service contract - temporary installation for servicing and field trials

The below table gives the full specifications for each resistor model available including the Cynergy3 IWTTU series:

Cynergy3 IWTTU series specifications
Specifications
Accuracy <±0.1% FS (Non-linearity and hysteresis)
Additional Features
  • Industrial Wireless Temperature Transducer
  • Selection of thermocouple (J or K type) or RTD sensor inptu
  • Up to 750m line-of-sight range (depending on receiver used)
  • Excellent media compatibility
  • 5 year battery life with 10s transmission update rate
  • Single or five channels available
  • Head connection via 1/4" NPT
  • Economical solution
Operating Temperature -20°C to +50°C Ambient Temperature
Output
  • 4-20mA
  • 1V - 5V
Package/Size
  • Acetal body
  • Stainless steel sheath (optional length)
Ranges
  • Type J: 0 - 1200°C
  • Type K: 0 - 1350°C
  • PT100 RTD: -200 - +800°C
Transmission Rate User selectable:
  • 1s
  • 5s
  • 10s
  • 20s
  • 30s
  • 60s
  • 120s
  • 600s

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Cynergy3 IWTTU Wireless Temperature Transducer Series Datasheet
PDF Document Operation manual for Cynergy3 IWTT Wireless Temperature Transducer Series

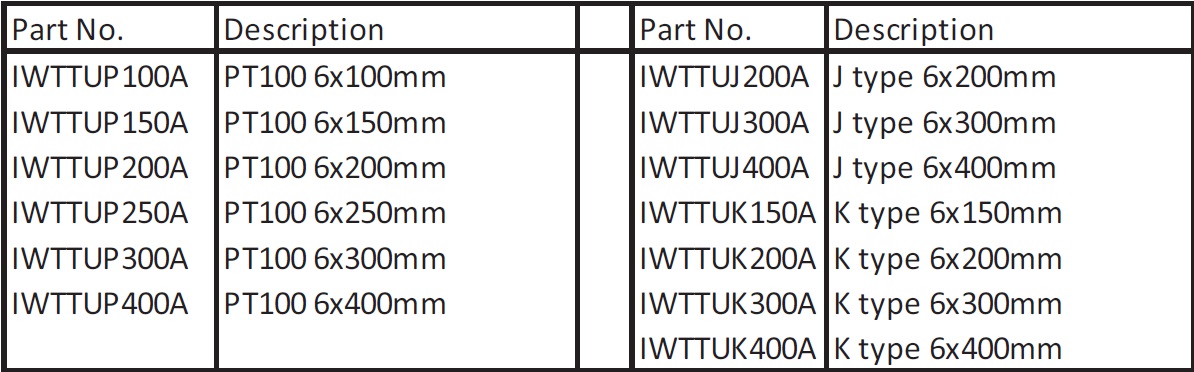

Below is a part number break down for the Cynergy3 IWTTU Wireless Temperature Transducer Series:

Cynergy3 IWTTU Series ordering information

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Cynergy3 Wireless Pressure & Temperature Sensors Video

Overview of the features and benefits of Cynergy3 wireless temperature and pressure sensor technology.
VIDEOS
Place holder video for YouTube video
Cynergy3 Wireless Pressure & Temperature Sensors Video

Overview of the features and benefits of Cynergy3 wireless temperature and pressure sensor technology.

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
