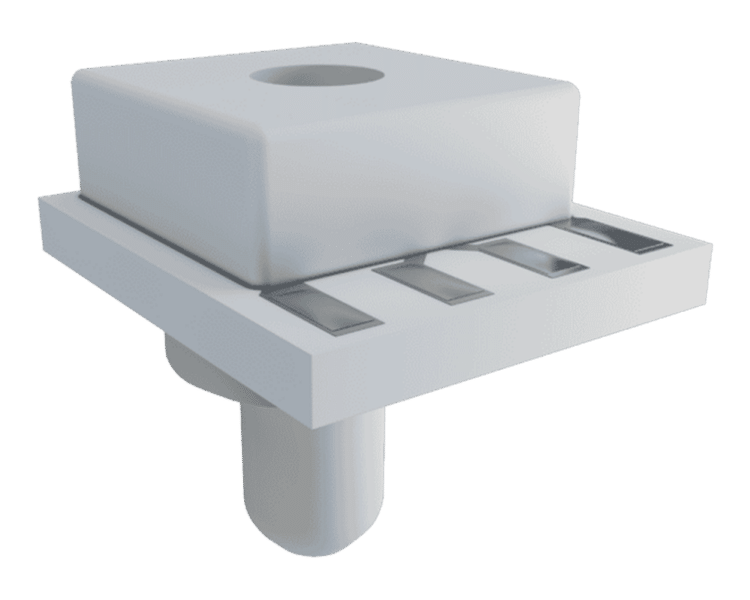

Uncompensated Pressure Sensor

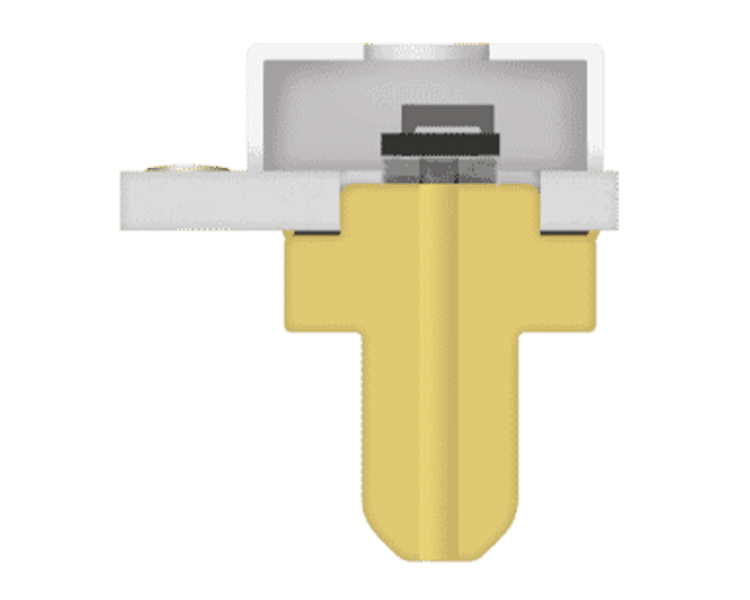

The RSH Series is compatible with wet and harsh media due to its MEMS-die-on-pressure-port design. This design isolates the media to the backside of the MEMS silicon die and inside of the Kovar or ceramic pressure port. The RSH Series is a great pressure sensor for broad temperature and pressure ranges. Better yet, it is available at a lower cost than fully compensated pressure-sensor packages, making it ideal for customers who know how or prefer to do their own compensation.

• Pressure Range: 0 to 500 psi
• Temperature Range: -40 to 150 °C
• Pressure Type: Absolute or gauge (backside pressure for both)
• Media: Air, gases, and liquids
  (to be determined on an application-by-application basis with Merit Sensor’s engineering team)
• Shipping: Tape and reel
• Flexibility: Range of pressure, size of pressure port, and pressure type
• Customizations are available upon request

Typical applications for the Merit Sensor^TM RSH series include:

• Industrial: Process control, water pressure, and flow management
• Medical: Inflation

Merit Sensor Systems, Inc. partners with Rhopoint and it’s customers to design, fabricate, assemble and package reliable, cost-effective piezoresistive pressure sensor solutions for automotive, medical, industrial, aviation, defense and consumer applications. Please visit https://meritsensor.com/ for more information.
