Isabellenhütte IVT-S series

  • Isabellenhütte

Product Features

  • Current & voltage measurement sensor
  • Current range up to ±2,500A
  • Voltage range up to ±1,200V
  • Communication based on CANbus 2.0
  • Accuracy of ±0.4% of reading
  • Temperature range from -40°C to +105°C

Applications

The IVT-S current and voltage measurement sensor is an intelligent shunt-based plug-and-play measurement system. The module continuously measures current and is available in either 100A, 300A, 500A, 1000A or 2500A. The IVT-S modules offer guaranteed galvanic isolation up to 1000V making them suitable for high-voltage applications. There is also a temperature sensor within the module utilised for temperature calibration, ensuring optimised results across the whole temperature range.

The shunt-based measurement method uses a 16-bit analog-digital-converter (ADC) at a speed of up to 1kHz to transform the voltage drop into a digital signal. The communication is based on a CANbus 2.0a interface. A CAN description file (CAN-dbc) is available and supports fast system integration.

The ITV-S is offered as a modular system, with the options for 3 voltage monitoring channels and an additional CAN port to enable daisy-chaining.

Key features of the IVT-S Current & Voltage Measurement Sensor include:

  • Intelligent shunt-based current and voltage measurement sensor
  • 5 nominal current options: 100A, 300A, 500A, 1000A or 2500A
  • Optional 3-channel voltage measurement channels and extra CAN port
  • Optional extra CAN port for daisy-chain capabilities
  • Communication via CANbus 2.0a interface
  • Temperature range of -40°C to +105°C
  • Accuracy of ±0.4% of reading for current measurement
  • Accuracy of ±0.5% of reading for voltage measurement
  • Dielectric strength of 1000V

Standard Module outputs

  • Current
  • Temperature (at shunt)
  • Current counter (As)

Additional outputs available with voltage measurement:

  • 3x voltage
  • Power
  • Energy counter (Wh)

Typical applications for the IVT-S current and voltage measurement module series include:

  • Hybrid and full electric drives
  • UPS systems
  • Stationary energy storage systems
  • Fuel cells
  • All battery and storage based applications


Isabellenhütte IVT-S Series Operating Specification Table

AttributesValue
Operating temperature-40°C to +105°C
Storage temperature-40°C to +125°C
Storage humidity≤95%
Supply voltage (Vcc)5.5V to 40V (12V typical)
Supply voltage-42V to 42V
Current consumption≤80mA (30mA typical)
Re-/ Startup time≤400ms (350ms typical)
Waiting time power on/off>2ms


Isabellenhütte IVT-S Series Current Measurement Table

Attributes
Nominal measurement range
(depending on shunt)
±100A±300A±500A±1000A±2500A
Extended load (5 min)±120A±320A±730A±1100A±2700A
Extended load (30s)±200A±430A±860A±1400A±3200A
Extended load (10s)±300A±600A±1000A±2000A±4300A
Extended load (1s)±900A±1600A±2700A±5500A±11300A
Extended load (200ms)±2000A±3600A±6000A±12000A±24000A
Power loss<3W<9W<9W<20W<32W
Initial accuracy *±0.1%rdg**±0.1%rdg**±0.1%rdg**±0.1%rdg**±0.1%rdg**
Total accuracy *±0.4%rdg**±0.4%rdg**±0.4%rdg**±0.4%rdg**±0.4%rdg**
Offset8mA25mA75mA125mA500mA
Linearity0.01% of range0.01% of range0.01% of range0.01% of range0.01% of range
Noise5mA (RMS)15mA (RMS)40mA (RMS)70mA (RMS)280mA (RMS)
Resolution3mA10mA27mA47mA186mA
Overcurrent measurement range±800±2500±6900±12200±48000
Accuracy (Overcurrent range)±3%rdg±3%rdg±3%rdg±3%rdg±3%rdg
Offset (Overcurrent range)60mA200mA540mA940mA3720mA
Linearity (Overcurrent range)0.1% of range0.1% of range0.1% of range0.1% of range0.1% of range
Noise (Overcurrent range)40mA (RMS)120mA (RMS)320mA (RMS)560mA (RMS)2240mA (RMS)
Resolution (Overcurrent range)24mA80mA216mA376mA1488mA


Isabellenhütte IVT-S Series Voltage Measurement Table

AttributesValue
Nominal measurement range±1000V
Extended range (nonlinear)±1200V
Initial accuracy0.1% of reading
Total accuracy0.5% of reading
Offset100mV
Linearity0.01% of range
Noise ***30mV (RMS)
Resolution30mV

* In nominal measurement range
** Failure of reading
*** Without averaging

Isabellenhütte has been one of the world’s leading providers of ultra-modern measurement technology systems for years as a proven specialist in the precise measurement of high currents. We offer our customers precision measurement systems with exceptional performance data under the brand name ISAscale®. Please visit www.isabellenhuette.de for more information on ISAscale® or contact one of our technical engineers today.

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.133 kg
Dimensions 16.20 x 83.20 x 84.00mm
Accuracy

,

Series / Model

Communication Channels

,

Current Rating

, , , ,

Options

Output

, , , ,

Product Type

Supply Voltage

Temperature Range (°C)

Voltage Channels

,

Voltage Rating

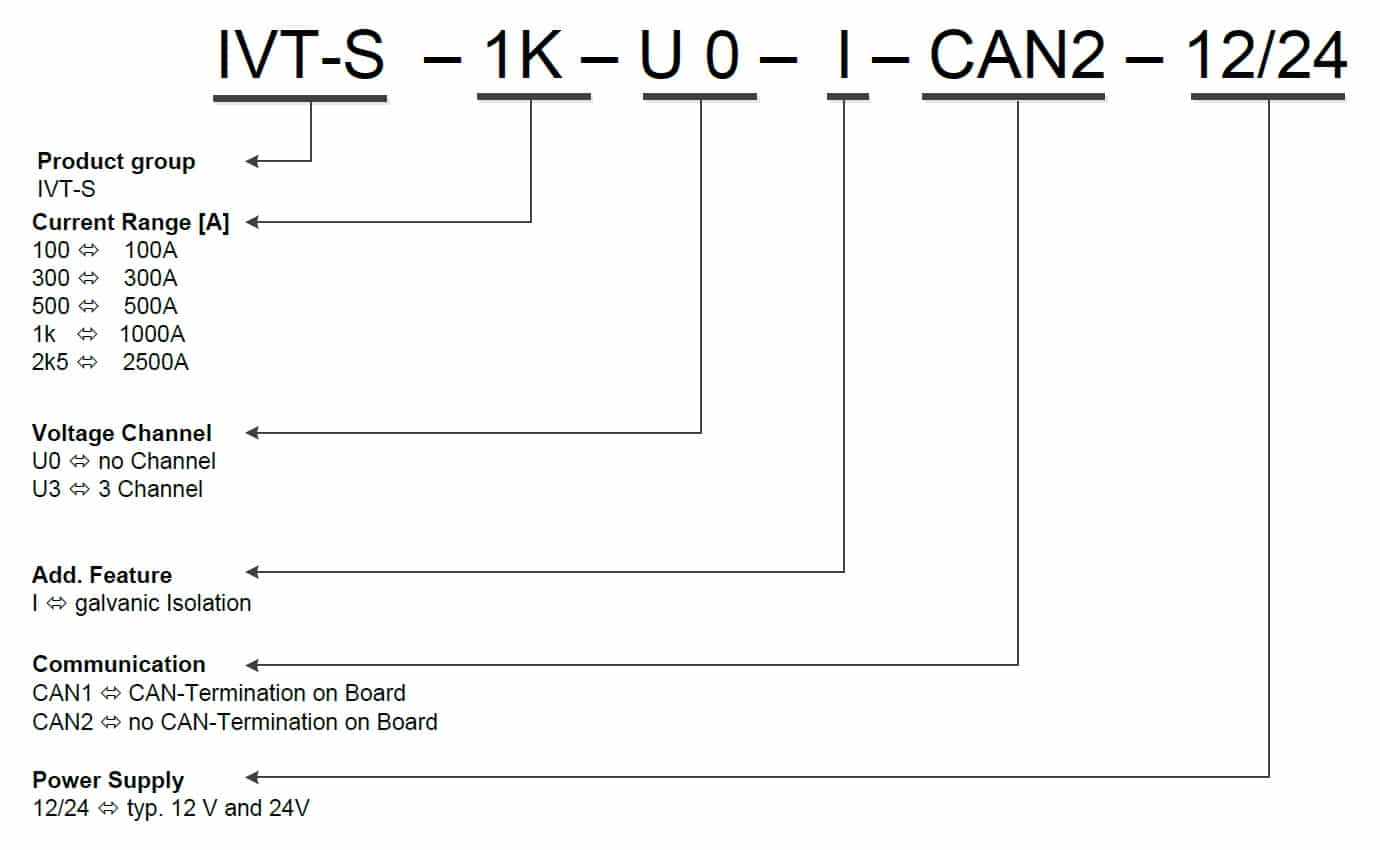

Isabellenhütte IVT-S series Ordering Info

Below is the model number configuration for the IVT-S series from Isabellenhütte.

Ordering example: IVT-S-1K-U0-I-CAN2-12/24
IVT-SXXXXXXXXXX

Series / Model (IVT-S)

IVT-S
IVT-S

Current Rating (XXX)

100
100A
1k
1kA
2k5
2.5kA
300
300A
500
500A

Voltage Channels (XX)

U0
No channels
U3
3 channels

Options (X)

I
Galvanic Isolation

Communication Channels (XXXX)

CAN1
CAN-Termination on board
CAN2
No CAN-Termination on board

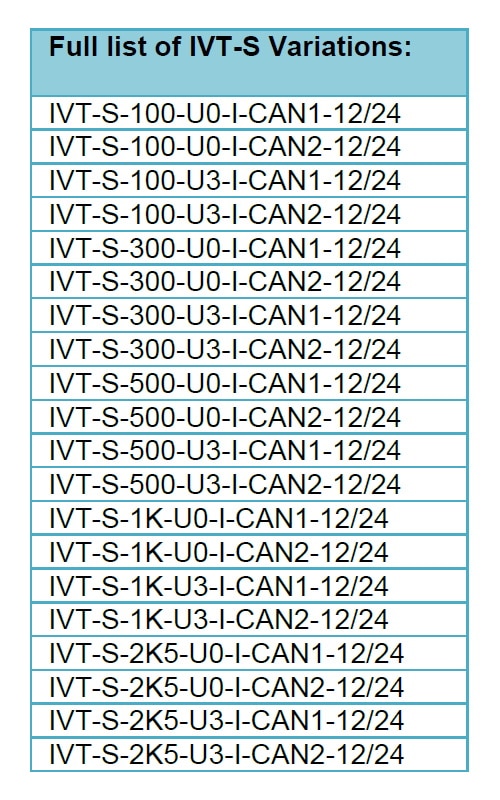

Isabellenhütte IVT-S Series – Available Variations


IVT-S-100-U0-I-CAN1-12/24 IVT-S-500-U3-I-CAN1-12/24
IVT-S-100-U0-I-CAN2-12/24 IVT-S-500-U3-I-CAN2-12/24
IVT-S-100-U3-I-CAN1-12/24 IVT-S-1K-U0-I-CAN1-12/24
IVT-S-100-U3-I-CAN2-12/24 IVT-S-1K-U0-I-CAN2-12/24
IVT-S-300-U0-I-CAN1-12/24 IVT-S-1K-U3-I-CAN1-12/24
IVT-S-300-U0-I-CAN2-12/24 IVT-S-1K-U3-I-CAN2-12/24
IVT-S-300-U3-I-CAN1-12/24 IVT-S-2K5-U0-I-CAN1-12/24
IVT-S-300-U3-I-CAN2-12/24 IVT-S-2K5-U0-I-CAN2-12/24
IVT-S-500-U0-I-CAN1-12/24 IVT-S-2K5-U3-I-CAN1-12/24
IVT-S-500-U0-I-CAN2-12/24 IVT-S-2K5-U3-I-CAN2-12/24
