Designing circuits that operate reliably at elevated voltages places significant demands on passive components. Voltage stress, long-term stability, noise performance, and environmental robustness all become critical, particularly in automotive, industrial, and medical electronics. Recent application guidance from Susumu highlights how modern thin film resistor design can address these challenges in high-voltage sensing and divider circuits.

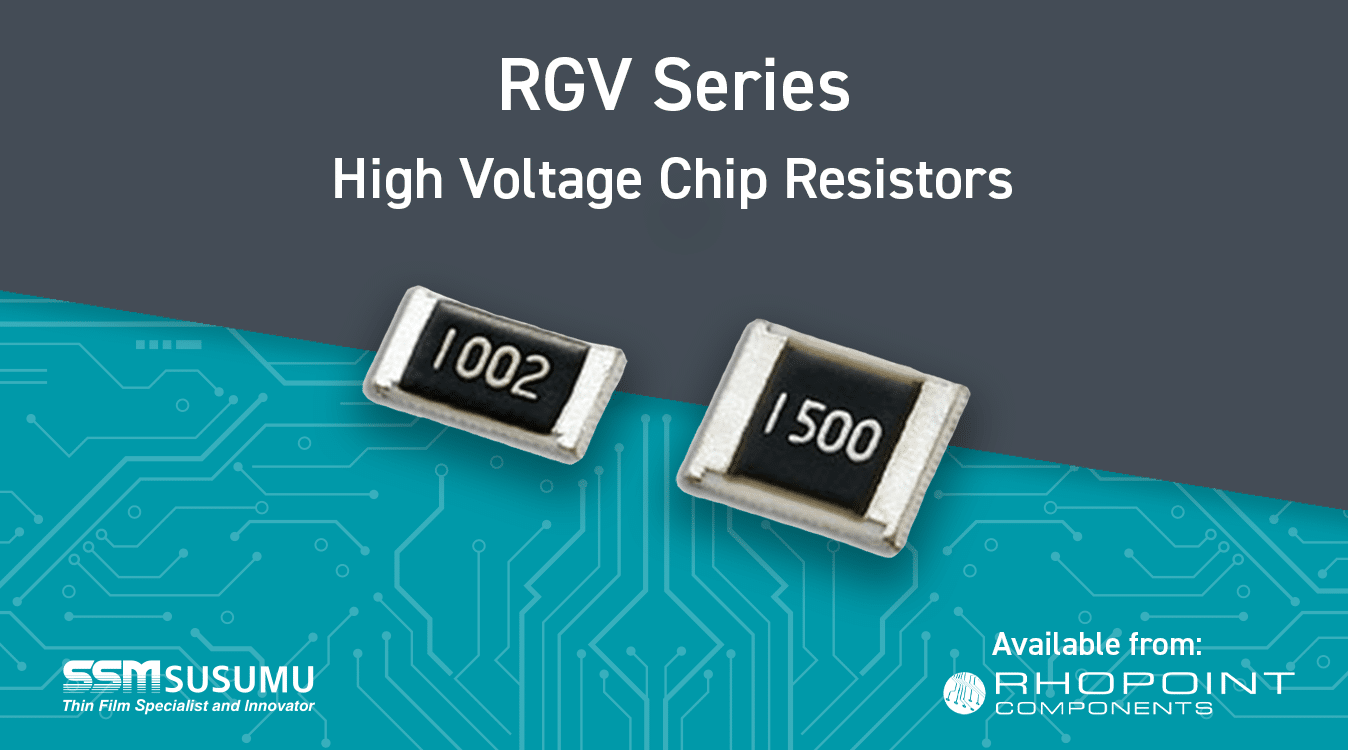

The RGV series metal thin film chip resistors are engineered specifically for high-voltage operation. By increasing the limiting element voltage within the resistor structure, higher working voltages can be supported without compromising reliability. This makes the series well suited to applications where compact PCB layouts must coexist with elevated system voltages.
A key differentiator of the RGV series is its long-term stability. An inorganic silicon dioxide (SiO₂) passivation layer protects the thin film element from environmental influences, supporting stable resistance values over time. This characteristic is particularly valuable in measurement and monitoring circuits, where drift can directly impact system accuracy and compliance.
Precision is another defining feature. The RGV series is available with resistance tolerances down to ±0.1% and temperature coefficients as low as ±25 ppm/°C. These specifications support accurate voltage sensing and division, even where temperature variation is unavoidable. The thin film construction also delivers low noise performance and inherent resistance to sulphur-induced degradation, extending suitability into harsh industrial and automotive environments.
The application note highlights several real-world design examples that illustrate where high-voltage thin film resistors provide tangible benefits. In power meters, RGV resistors are used in voltage sensing circuits to maintain accuracy under sustained electrical stress. In high-voltage defibrillator designs, the ability to withstand elevated voltages while maintaining stable resistance values is essential for safe and predictable operation.
Uninterruptible power supplies (UPS) represent another demanding use case. Here, RGV resistors are deployed in voltage divider circuits, supporting reliable monitoring of high-energy rails while occupying minimal board space. Battery management systems for 800 V architectures are also identified as a key application area, reflecting the increasing voltage levels seen in modern electric vehicle platforms and industrial energy storage systems.
Compliance and qualification are central considerations in these markets. The RGV series is AEC-Q200 compliant, supporting adoption in automotive electronics where qualification requirements are stringent and traceability is essential. Lead-free, halogen-free, and RoHS-compliant construction aligns with current environmental and regulatory expectations.
As system voltages continue to rise across automotive, industrial, and medical electronics, passive component selection plays a decisive role in overall design robustness. High-voltage thin film resistors such as the RGV series provide a practical route to combining compact size, electrical resilience, and measurement precision in next-generation designs.
For engineers developing high-voltage sensing, monitoring, or divider circuits, the application insights provided demonstrate how careful resistor selection can reduce risk, improve long-term performance, and support compliance in demanding operating environments.
