  • Susumu

Susumu PAT3042S high precision chip attenuator

Susumu PAT3042S Series

  • High precision chip attenuator
  • Surface mount design with an 1612 chip size
  • Attenuation of 0dB to 10dB (1dB steps), 16dB or 20dB
  • Attenuation tolerance down to ±0.3dB
  • Impedance of 50Ω or 75Ω
  • Temperature range from −55°C to +125°C
  • Compliant

The PAT3042S high precision chip attenuator is part of the PAT series of thin film attenuators designed for high precision applications from Susumu. The PAT3042S model has a 1612 chip size and is available in an attenuation range of 0dB to 10dB in 1dB steps, 16dB and 20dB. This series utilises a similar wrap-around terminal to that of regular chip resistors making them easy to mount. One chip attenuator covers a wide frequency range of 3GHz (50Ω impedance) or 2GHz (75Ω impedance). These attenuators have been developed to withstand operating temperatures between −55°C to +125°C.

  • High precision chip attenuator
  • Surface mount design with an 1612 chip size
  • Attenuation of 0dB to 10dB (1dB steps), 16dB or 20dB
  • Attenuation tolerances of ±0.3dB or ±0.5dB
  • Impedance of 50Ω (C) or 75Ω(D)
  • VSWR of <1.2 (50Ω) or <1.3 (75Ω)
  • Operating frequencies of DC∼3GHz (50Ω) or DC∼2GHz (75Ω)
  • Rated power of 250mW
  • Temperature range from −55°C to +125°C
  • Rated operating temperature +70°C

The Susumu PAT3042S high precision chip attenuator is ideal for the following applications:

  • Cell phone base stations
  • Wireless communication modules
  • Wide band measurement instrumentation


Susumu PAT3042S Series Specification Table

AttenuationAttenuation toleranceImpedanceVSWROperating frequencyRated powerPackaging quantity
0 - 10dB (1dB steps)±0.3dB50Ω (C) / 75Ω (D)<1.2 (50Ω) / <1.3 (75Ω)DC~3Ghz (50Ω) / DC~2Ghz (75Ω)250mWB (50pcs/bag)
T1 (1,000 pcs/reel)
T2 (2,000 pcs/reel)
16dB / 20dB±0.5dB50Ω (C) / 75Ω (D)<1.2 (50Ω) / <1.3 (75Ω)DC~3Ghz (50Ω) / DC~2Ghz (75Ω)250mWB (50pcs/bag)
T1 (1,000 pcs/reel)
T2 (2,000 pcs/reel)

Susumu is a leading manufacturer of thin-film attenuators, covering a range of attenutations from 0dB to 20dB. Specialised in the production of High precision, High frequency and Thermovariable Attenuators available in various small chip sizes to compliment miniturisation of devices. Please visit www.susumu.co.jp/usa/ for more information.

Specifications

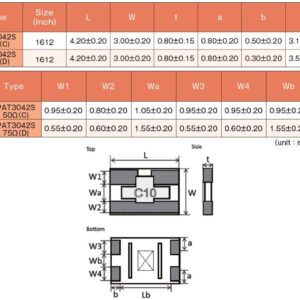

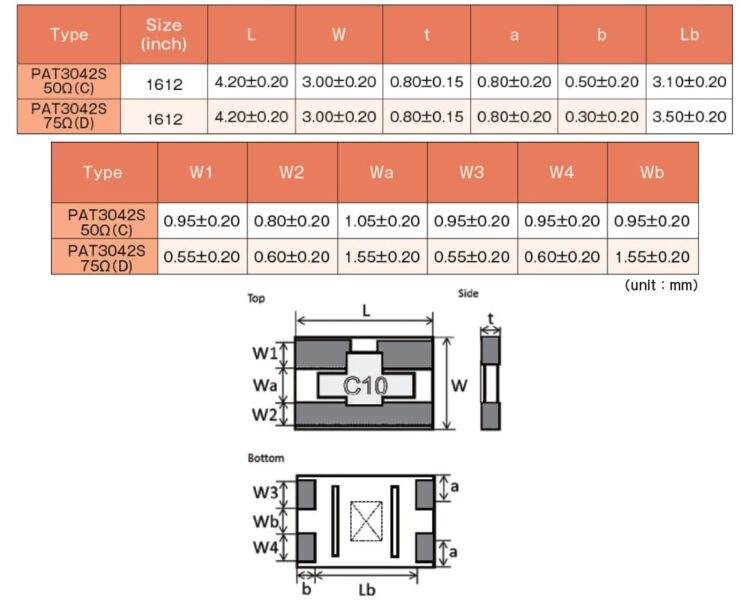

Dimensions 0.80 x 3.00 x 4.20mm
Series / Model

Power Rating

Tolerance

,

Operating Frequency

3GHz

Impedance

50Ω, 75Ω

Attenuation

0dB, 1dB, 2dB, 3dB, 4dB, 5dB, 6dB, 7dB, 8dB, 9dB, 10dB, 16dB, 20dB

Susumu PAT Series Ordering Info

The PAT attenuator series is available with various options. The information below gives an example of the part numbering system used for these attenuators and the options available.

Below is an example of the part number break down for the PAT attenuator series:

Susumu PAT Series Ordering Information

Product Variations

SKUAttenuationImpedance
Susumu PAT3042S Series0dB50Ω
Susumu PAT3042S Series0dB75Ω
Susumu PAT3042S Series10dB50Ω
Susumu PAT3042S Series10dB75Ω
Susumu PAT3042S Series16dB50Ω
Susumu PAT3042S Series16dB75Ω
Susumu PAT3042S Series1dB50Ω
Susumu PAT3042S Series1dB75Ω
Susumu PAT3042S Series20dB50Ω
Susumu PAT3042S Series20dB75Ω
Susumu PAT3042S Series2dB50Ω
Susumu PAT3042S Series2dB75Ω
Susumu PAT3042S Series3dB50Ω
Susumu PAT3042S Series3dB75Ω
Susumu PAT3042S Series4dB50Ω
Susumu PAT3042S Series4dB75Ω
Susumu PAT3042S Series5dB50Ω
Susumu PAT3042S Series5dB75Ω
Susumu PAT3042S Series6dB50Ω
Susumu PAT3042S Series6dB75Ω
Susumu PAT3042S Series7dB50Ω
Susumu PAT3042S Series7dB75Ω
Susumu PAT3042S Series8dB50Ω
Susumu PAT3042S Series8dB75Ω
Susumu PAT3042S Series9dB50Ω
Susumu PAT3042S Series9dB75Ω

Susumu PAT Series Ordering Info

The PAT attenuator series is available with various options. The information below gives an example of the part numbering system used for these attenuators and the options available.

Below is an example of the part number break down for the PAT attenuator series:

Susumu PAT Series Ordering Information
