| Weight | 0.00000 kg |
|---|---|
| Dimensions | 0.80 x 4.50 x 5.60mm |
| Attenuation | 0dB, 1dB, 2dB, 3dB, 4dB, 5dB, 6dB, 7dB, 8dB, 9dB, 10dB, 13dB, 16dB, 20dB |
| Impedance | 50Ω |
| Operating Frequency | 10GHz |
| Power Rating | |
| Series / Model | |
| Tolerance |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

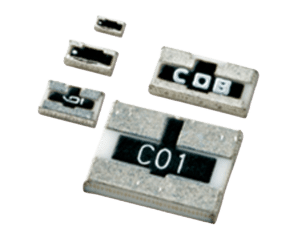

The PAT4556 series are thin film precision chip attenuators from Susumu offers designers low noise and good high-frequency characteristics which makes it possible to handle circuits with different frequencies with ease. The Susumu PAT4556 series has a wider frequency range of DC∼10GHz and and is available in a chip size of 2218. The distribution of the signal terminals in the middle and ground terminals at the ends, are designed for easy integration to coaxial connectors.
Susumu PAT4556 series thin film precision chip attenuators are ideal for the following applications:
The below table gives the full specifications of the Susumu PAT series W type including the PAT4556:
