SRT Microcéramique High Temperature NP0 Capacitor Series

  • SRT Microcéramique

Product Features

  • High Temperature, ultra stable MLCC Capacitor
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 10.10-4 at 1Vrms and 1kHz (or 1MHz)
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E

Applications

  • Automotive
  • Medical
  • Military
  • Power Control
  • Rhopoint Energy
  • Scientific Instrumentation
  • Test and Measurement

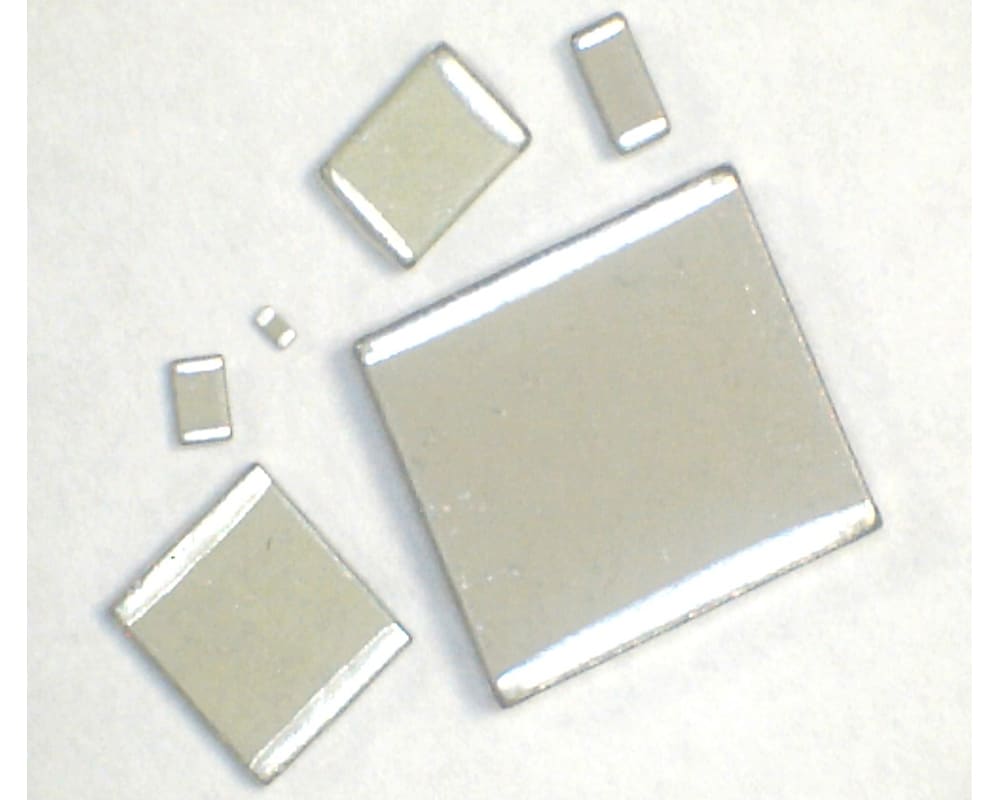

Description

  • High Temperature, low voltage, ultra-stable ceramic chip MLCC capacitors
  • Available in capacitance ratings between 0.47pF and 300nF
  • Available in standard chip sizes from 0402 to 2225
  • Dissipation factor under 10.10-4 at 1Vrms and 1kH (or 1MHz)
  • Temperature coefficient of ±30ppm
  • Selection of Voltage ratings: 16V, 25V, 50V or 100V
  • Selection of tolerances: ±0.25pF, ±0.5pF, ±0.05%, ±0.1%, ±0.5%, ±1%. ±2%, ±5%, ±10%, ±20% and -20% to +80%
  • Operating temperature between -55°C and +215°C



The High-Temperature NP0 (Type D03) low voltage, ultra-stable ceramic chip MLCC capacitor series from SRT Microcéramique offers a vast range of options to suit any demand, including capacitance between 0.47pF to 300nF across a range of chip sizes from 0402 to 2225, a wide selection of tolerances (±0.25pF, ±0.5pF, ±0.05%, ±0.1%, ±0.5%, ±1%. ±2%, ±5%, ±10%, ±20% and -20% to +80%), voltages (16V, 25V, 50V or 100V) and a wide range of terminations. As with all SRT-MC components, the NP0 capacitors are popular in safety-critical industries thanks to their excellent quality and reliability, as well as zero ageing rate up to 10000 hours, zero voltage coefficient of capacitance and change of capacitance with frequency, and very low-temperature coefficient of capacitance. The high-temperature NP0 models have operating temperature is between -55°C and +215°C.

Termination options available include:

  • Palladium-Silver
  • Gold-plated Silver

While this capacitor series offers a large number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please contact us to discuss the custom solutions available.

Typical applications for the High-Temperature SRT-MC NP0 series of ceramic capacitors include:

  • Passing
  • Coupling
  • Filtering
  • Blocking
  • Applications where high stability of dielectric characteristics is required



The below table gives the specifications overview for each capacitor model available within the high-temperature NP0 series:

SRT Microcéramique High Temperature NP0 Capacitor series



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Temperature Coefficient

Additional Features

Tolerance

, , , , , , , , ,

Temperature Range (°C)

Package / Size

, , , , , , , ,

Voltage Rating

, , ,

SRT Microceramique Capacitance Value note

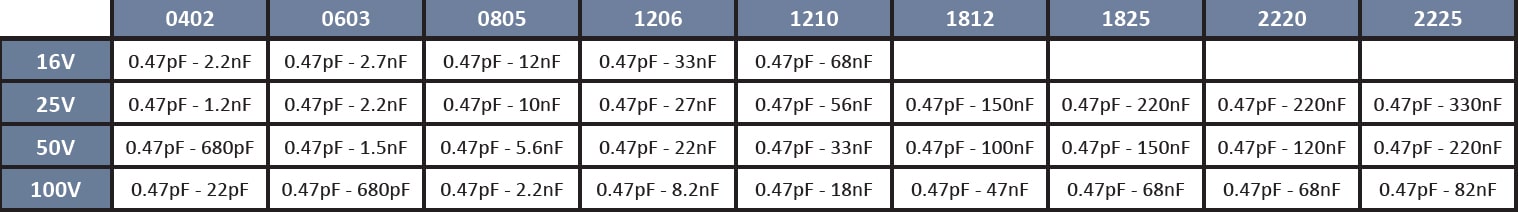

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.

RoHS Compliant Product – SRT Microceramique

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

SRT Microceramique High Temperature NP0 Capacitor Series Ordering Info

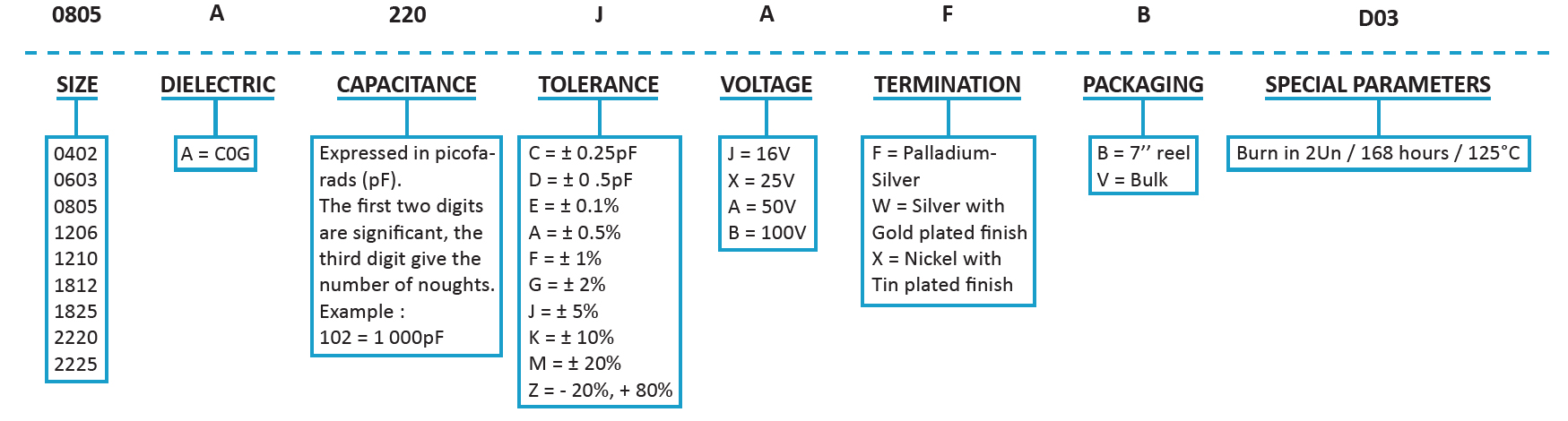

Below is an example of the part number breakdown for the SRT Microcéramique's High Temperature NP0 Capacitor series :
