±5% series

  • High-precision metal film surface-mount resistors
  • Power ratings available: 2W, 3W and 5W
  • Resistance range: 10Ω to 2MΩ
  • Tight tolerances: ±1% and ±5%
  • Temperature coefficient: 200 ppm/°C
  • Flameproof UL94V0 moulded package for added safety
  • RARA
  • High-power wire wound surface-mount resistors
  • Power ratings available: 2W, 3W, and 5W
  • Wide resistance range: 0.1Ω to 500Ω
  • Precision tolerances: ±1% & ±5%
  • Temperature coefficient: 200 ppm/°C
  • Flameproof UL94V0 molded package for high safety
  • Ametherm
  • Inrush current limiting thermistor
  • Resistance of 30Ω (at 25°C)
  • Maximum steady state current of 0.25A (up to +65°C)
  • Maximum recommended energy of 3J
  • Maximum disc diameter 6mm
  • Alpha Electronics
  • Ultra-precision 4 terminal shunt resistor
  • Resistance range form 0.5Ω to 500Ω
  • Tolerance from ±0.01% to ±5%
  • TCR of ±2.5 ppm/°C, ±5 ppm/°C or ±15 ppm/°C
  • Power rating of upto 10W (on a heat sink at 70°C)
  • Temperature range from -55°C up to +155°C
  • Alpha Electronics
  • Ultra-precision current sensing resistor
  • Resistance range form 0.01Ω to 1Ω
  • Tolerance from ±0.5% to ±5%
  • TCR of ±10 ppm/°C or ±25 ppm/°C
  • Power rating of 0.5W (at 70°C)
  • Temperature range from -65°C to +155°C
  • Alpha Electronics
  • Ultra-precision current sensing resistor
  • Resistance range form 0.01Ω to 1Ω
  • Tolerance from ±0.5% to ±5%
  • TCR of ±10 ppm/°C or ±25 ppm/°C
  • Power rating of 1W (at 70°C)
  • Temperature range from -65°C to +155°C
  • Alpha Electronics
  • Ultra-precision current sensing resistor
  • Resistance range form 0.01Ω to 0.1Ω
  • Tolerance from ±0.5% to ±5%
  • TCR of ±10 ppm/°C or ±25 ppm/°C
  • Power rating of 1.5W (at 70°C)
  • Temperature range from -65°C to +155°C
  • Caddock
  • Current sense resistor
  • Resistance range from 0.01Ω to 10Ω
  • Tolerance from ±1.0% to ±5.0%
  • TCR of -20 to +80, 0 to +200 or +300 ppm/°C
  • Power rating of 0.75W at 70°C
  • Temperature range from -55°C to +150°C
  • Caddock
  • Low resistance precision flip-chip surface-mount resistor
  • 2-terminal current sense resistor with recommended 4-terminal PCB layout
  • Chip size of 2520
  • Solder coated pads between 0.01Ω and 0.02Ω, solderable pads between 0.025Ω and 10Ω
  • Inductance of less than 5nH typical
  • Maximum chip temperature of +150°C
  • Temperature range of -55°C to +150°C

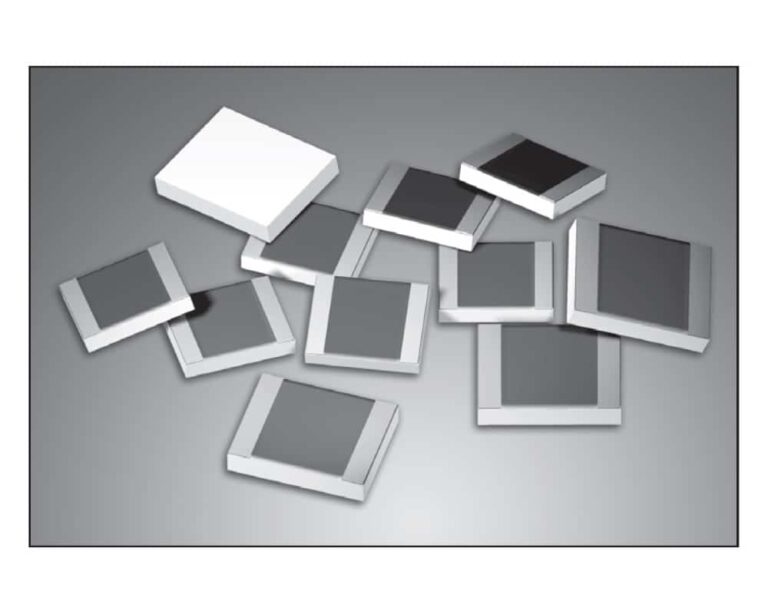

  • Caddock
  • Low resistance precision wire-bondable surface-mount resistor
  • Metalised back surface for soldering to a heat sink with bondable termination pads
  • 2-terminal current sense resistor with 4-terminal connections available (see datasheet for further details)
  • Chip size of 2520
  • Aluminium wire to be used for bonding
  • Inductance of less than 5nH typical
  • Maximum chip temperature of +150°C
  • Temperature range of -55°C to +150°C
  • Caddock
  • Current sensing resistor
  • Resistance range from 0.02Ω to 10Ω
  • Tolerance from ±1.0% to ±5.0%
  • TCR of -20 to +80, 0 to +200 or +300 ppm/°C
  • Power rating of 1W at 70°C
  • Temperature range from -55°C to +150°C
  • Caddock
  • Low resistance precision wire-bondable surface-mount resistor
  • Metalised back surface for soldering to a heat sink with bondable termination pads
  • 2-terminal current sense resistor with 4-terminal connections available (see datasheet for further details)
  • Chip size of 2015
  • Aluminium wire to be used for bonding
  • Inductance of less than 5nH typical
  • Maximum chip temperature of +150°C
  • Temperature range of -55°C to +150°C
  • Caddock
  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 960V up to 48kV *
  • Resistance values from 6.5MΩ up to 2GΩ *
  • Tolerances of ±1% and ±5%
  • TCR as tight as ±80 ppm/°C from -15°C to +105°C
  • Maximum power rating from 0.5W up to 15W *
  • Operating Temperature Range of -55°C to +225°C
* Dependant on selected resistor model
  • Caddock
  • Cylindrical high voltage axial leaded resistor
  • Maximum operating voltage from 2kV up to 30kV *
  • Resistance values from 600Ω up to 10GΩ *
  • Tolerances of ±1% and ±5%
  • TCR as tight as ±80 ppm/°C from +25°C to +105°C
  • Operating Temperature Range of -55°C to +225°C
  • Maximum power rating from 1.5W up to 15W *
* Dependant on selected resistor model
  • Caddock
  • TO-220 style power through-hole resistor
  • Kool-Pak® clip mount design
  • Non-inductive
  • Up to 60A continuous current at +25°C case temperature (0.02Ω and above)
  • Excellent pulse / surge performance
  • Operation up to +150°C case temperature
  • Electrically isolated case
  • Caddock
  • D-pak style power surface-mount resistor
  • Low resistance values down to 0.02Ω for current sense applications
  • Non-inductive design
  • Up to 25W power rating at +25°C case temperature
  • Voltage rating of 200V
  • Metal tab assists in post surface-mount soldering inspection
  • Resistor element is electrically isolated from the metal heat sink tab
