| Weight | 0.02500 kg |
|---|---|
| Dimensions | 2.50 x 10.49 x 7.59mm |
| Creepage Distance | 8.03mm |
| Maximum Data Rate | 110 Mbps |
| Propagation Delay | 10ns at 5V |
| Series / Model | |
| Supply Voltage | 3 to 5V |
| Temperature Range | -40 to +125°C |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

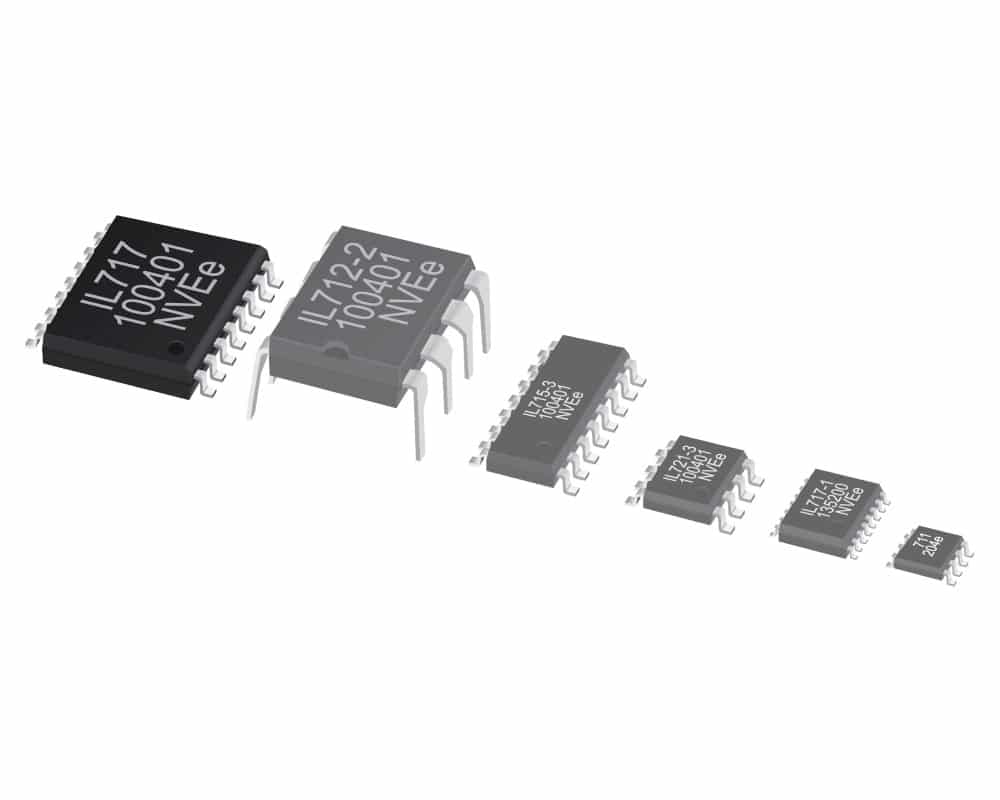

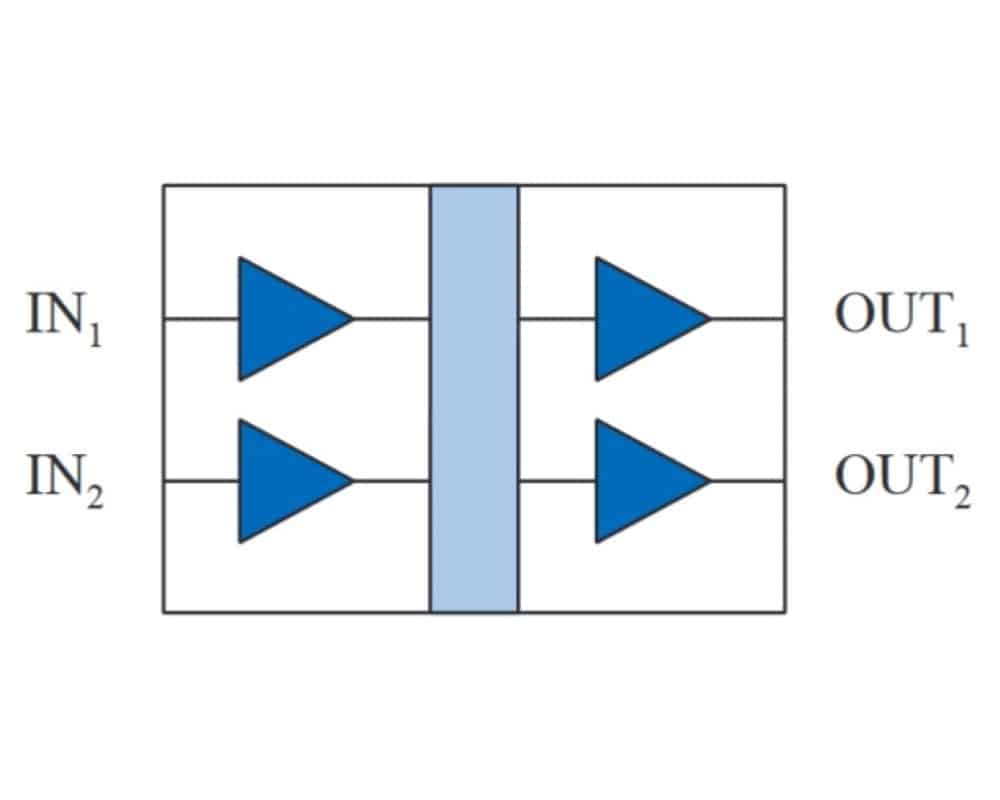

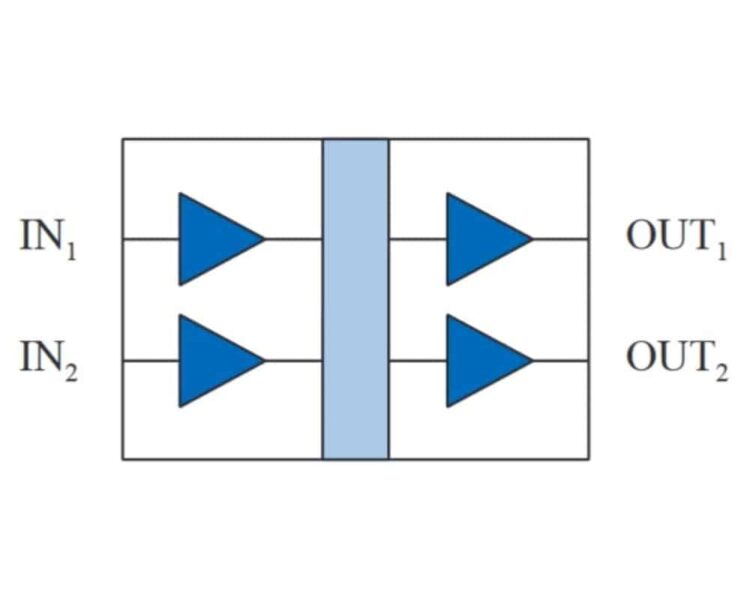

The IL711VE high speed digital isolator from NVE is a two channel CMOS device with typical data rate of 110Mbps. It features a reinforced isolation voltage of 6kVrms and 1kVrms working voltage per VDE V 0884-10. The IL711VE isolators are available in a True 8TM 16-pin SOIC package and are specified over a temperature range of −40°C to +125°C. These isolators are the industry standard for solid-state signal isolation and the ultimate in usable data rate and performance. The IL711VE series from NVE are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL711 series, including IL711VE is UL1577 recognised and certified to VDE V 0884-10.
The NVE IL711VE series symmetric magnetic coupling barrier provides a typical propagation delay of only 10ns and a pulse width distortion as low as 2ns, achieving the best specifications of any isolator. Typical transient immunity of 50 kV/µs is unsurpassed.
Typical applications for the IL711 series include:
The below table gives the recommended operating conditions of the NVE IL711 high speed digital isolator series including the IL711VE:
