| Weight | 0.02500 kg |
|---|---|
| Dimensions | 2.50 x 7.59 x 10.49mm |
| Creepage Distance | 8.03mm |
| Maximum Data Rate | 110 Mbps |
| Propagation Delay | 10ns at 5V |
| Series / Model | |
| Supply Voltage | 3 to 5V |
| Temperature Range | -40 to +100°C |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

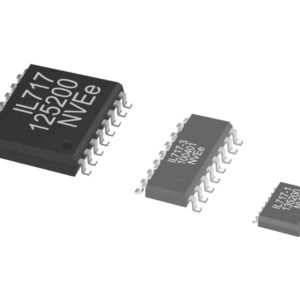

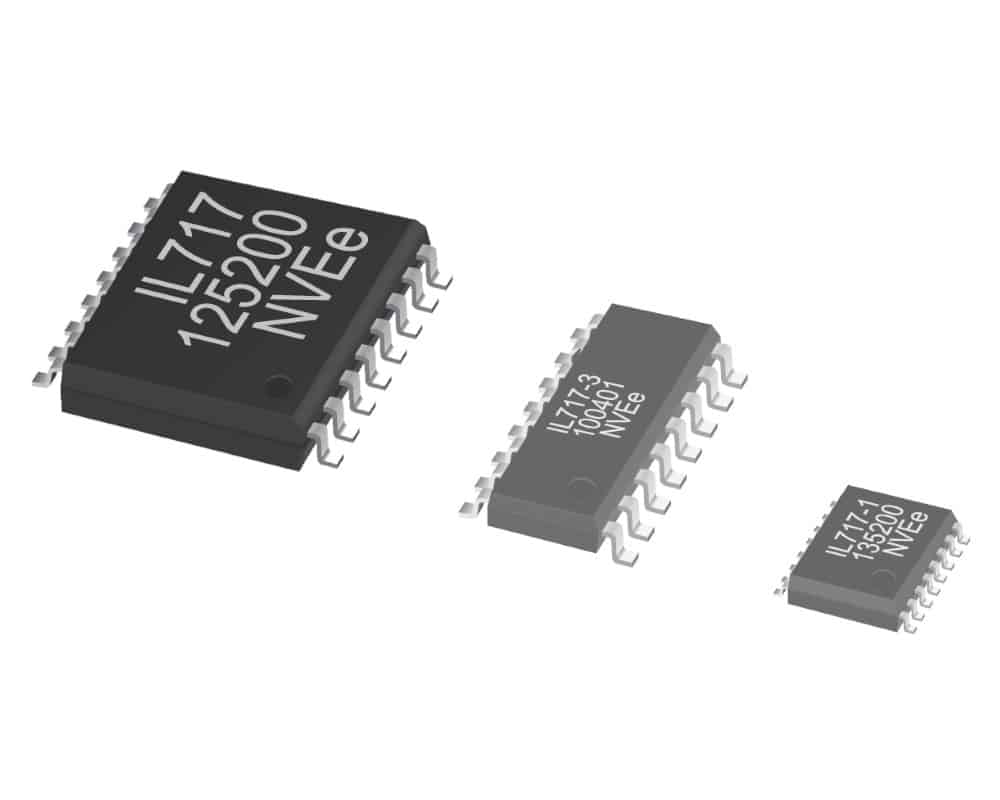

The IL715E high speed digital isolator from NVE is a four channel CMOS device with typical data rate of 110Mbps. It features an isolation voltage of 2.5kVrms and 600 Vrms working voltage per VDE V 0884-10. The IL715E isolators are available in an 16-pin SOIC package and are specified over a temperature range of −40°C to +100°C. These isolators are the industry standard for solid-state signal isolation and the ultimate in usable data rate and performance. The IL715E series from NVE are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL715 series, including IL715E is UL1577 recognised and certified to VDE V 0884-10.
The NVE IL715E series symmetric magnetic coupling barrier provides a typical propagation delay of only 10ns and a pulse width distortion as low as 2ns, achieving the best specifications of any isolator. Typical transient immunity of 50 kV/µs is unsurpassed.
Typical applications for the IL715E series include:
The below table gives the recommended operating conditions of the NVE IL715 high speed digital isolator series including the IL715E:
