NVE IL716-1E

  • NVE

Product Features

  • High speed digital isolators
  • Multidirectional four channel isolation
  • High speed at 110 Mbps typical
  • 2.5 kVRMS isolation voltage
  • 600 VRMS working voltage per VDE V 0884-10
  • 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • 0.0012 A/channel typical quiescent current
  • 2ns typical pulse width distortion (with 5V supply)
  • 100ps pulse jitter
  • 2ns channel-to-channel skew
  • 44000 year barrier life
  • Excellent magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised

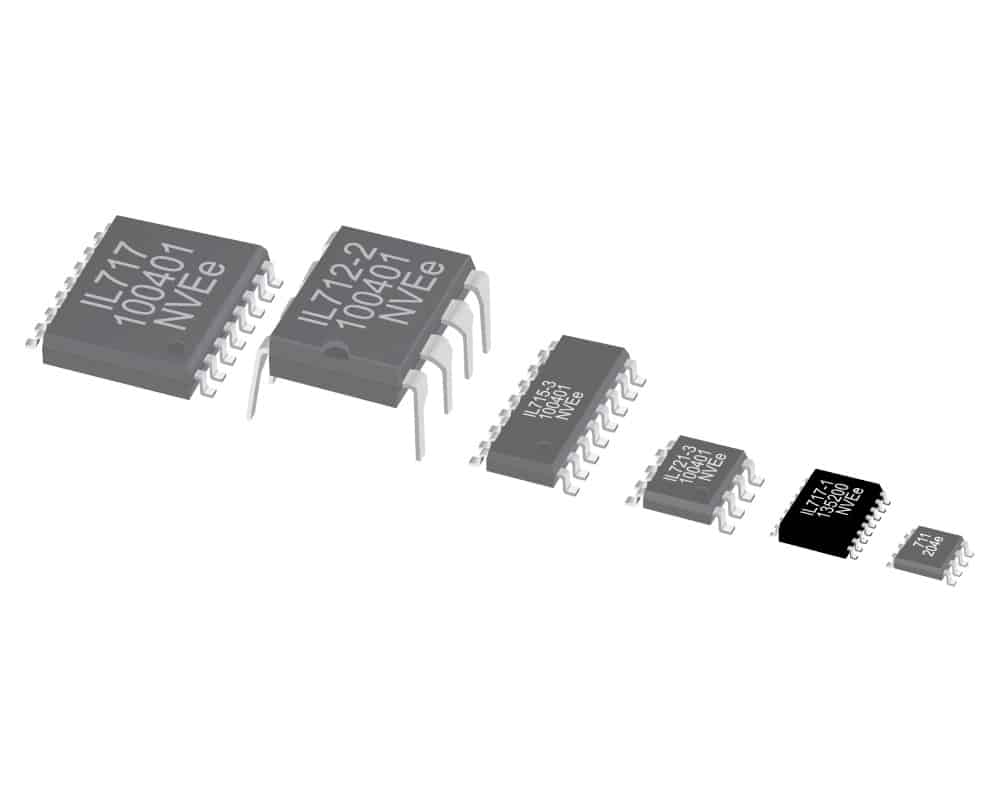

  • 16-pin QSOP package

Applications

  • Medical
  • Motion Control
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The IL717-1E high speed digital isolator from NVE is a four channel CMOS device with typical data rate of 110Mbps. It features an isolation voltage of 2.5kVrms and 600 Vrms working voltage per VDE V 0884-10. The IL717-1E isolators are available in an ultraminiature 16-pin QSOP package and are specified over a temperature range of −40°C to +100°C. These isolators are the industry standard for solid-state signal isolation and the ultimate in usable data rate and performance. The IL717-1E series from NVE are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL717 series, including IL717-1E is UL1577 recognised and certified to VDE V 0884-10.

  • High speed digital isolator
  • Multidirectional four channel isolation (4 x transmit)
  • High speed at 110 Mbps typical
  • Isolation voltage of 2.5kVrms
  • Working voltage of 600 Vrms per VDE V 0884-10
  • Temperature range of −40°C to +100°C
  • 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • Typical quiescent current 0.0012A/channel
  • Typical pulse width distortion of 2ns (at 5V)
  • Pulse jitter 100ps
  • Channel to channel skew 2ns
  • Typical propagation delay of 10ns
  • Barrier life of 44000 years
  • Excellent magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 16-pin QSOP package

The NVE IL717-1E series symmetric magnetic coupling barrier provides a typical propagation delay of only 10ns and a pulse width distortion as low as 2ns, achieving the best specifications of any isolator. Typical transient immunity of 50 kV/µs is unsurpassed.

Typical applications for the IL717-1E series include:

  • Digital fieldbus
  • ADCs and DACs
  • Ground loop elimination
  • Multiplex data transmission
  • Board-to-board communication
  • Logic level shifting
  • Equipment covered under IEC 61010-1 Edition 3
  • 5 kVRMS rated IEC 60601-1 medical applications

The below table gives the recommended operating conditions of the NVE IL717 high speed digital isolator series including the IL717-1E:

NVE IL717-1E Specifications

Specifications

Weight 0.02500 kg
Dimensions 5.00 × 4.00 × 1.42 mm
Series / Model

Additional Features

High speed digital isolators Multidirectional four channel isolation High speed at 110 Mbps typical 2.5 kVRMS isolation voltage 600 VRMS working voltage per VDE V 0884-10 50 kV/μs typical (30 kV/μs

Temperature Range (°C)

Supply Voltage

Maximum Data Rate

Propagation Delay

Creepage Distance

RoHS Compliant Product – NVE

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
