| Weight | 0.02500 kg |
|---|---|
| Dimensions | 1.10 x 2.90 x 2.90mm |
| Creepage Distance | 3mm |
| Maximum Data Rate | 110 Mbps |
| Propagation Delay | 10ns at 5V |
| Series / Model | |
| Supply Voltage | 3 to 5V |
| Temperature Range | -40 to +125°C |
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

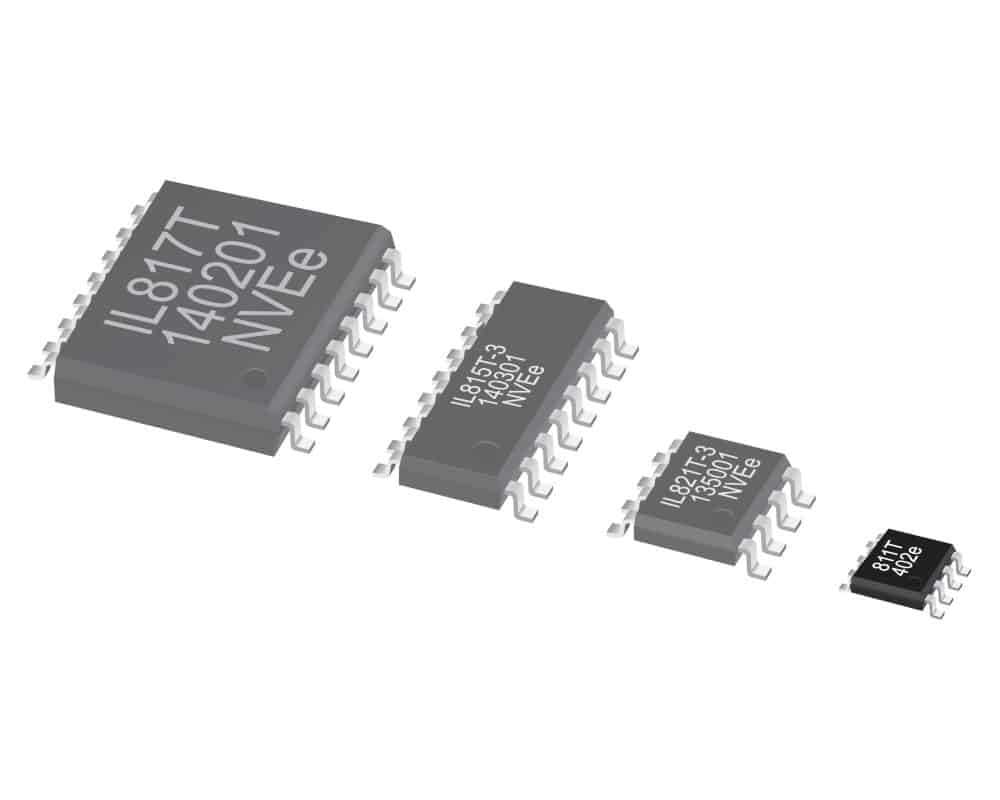

The IL811T-1E high temperature, DC correct, high speed digital isolator from NVE is rated with an isolation voltage of 1kVrms and 600Vrms working voltage per VDE V 0884-10, these isolators are available in an ultraminiature 8-pin MSOP package and are specified over a temperature range of −40°C to +125°C. IL800 series are industry’s top-of-the-line isolators with the best specification within their class. They are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology and featuring an internal refresher clock to ensure response to DC states of input within 9μs maximum. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life.
The NVE IL811T-1E series isolator provides a typical propagation delay of only 10ns and a pulse width distortion as low as 2ns, achieving the best specifications of any isolator. Typical transient immunity of 50 kV/µs is unsurpassed.
Typical applications for the IL800 series include:
The below table gives the recommended operating conditions of the NVE IL800 high speed digital isolator series including the IL811T-1E:
