NVE IL816T-1E

  • NVE

Product Features

  • High speed, High-Temperature, DC-correct digital isolators

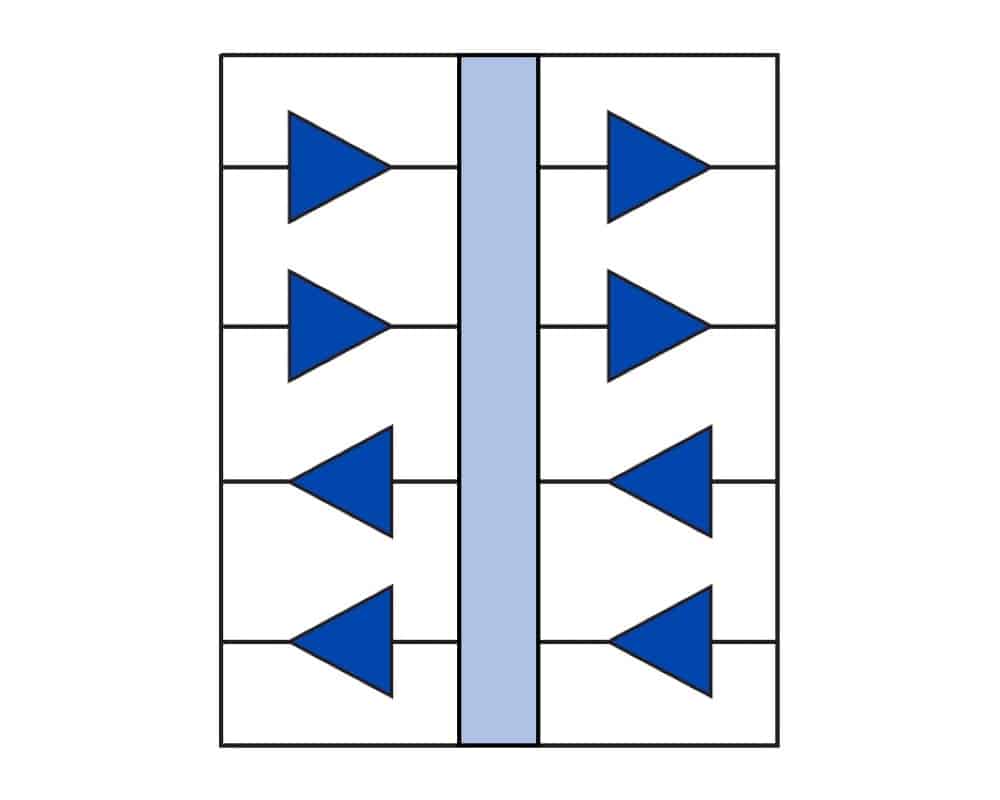

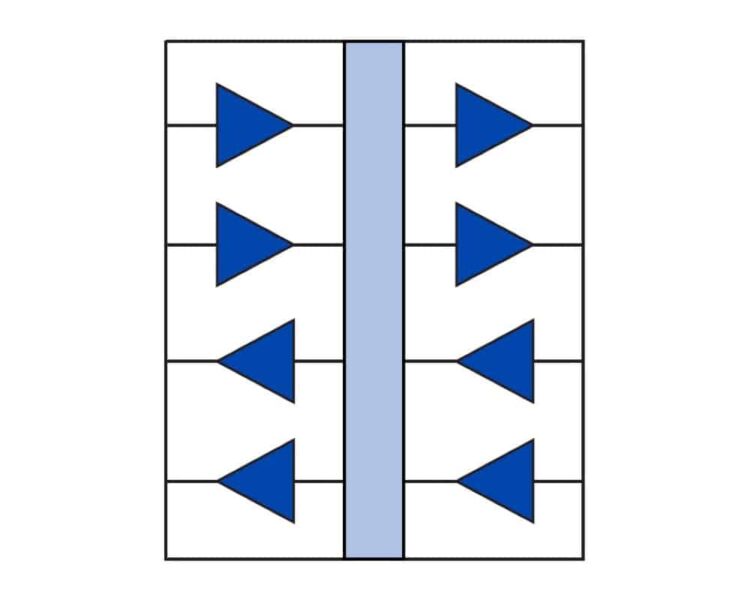

  • Multidirectional four channel isolation (2 transmit, 2 receive)
  • High speed at 110 Mbps typical
  • 2.5kVRMS isolation voltage
  • 600 VRMS working voltage per VDE V 0884-10
  • 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
  • Internal refresher clock to ensure response to DC states of input within 9μs maximum
  • 0.0013 A/channel typical quiescent current
  • 2ns typical pulse width distortion (with 5V supply)
  • 3ns channel-to-channel skew
  • 44000 year barrier life
  • Excellent magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 16-pin QSOP package

Applications

  • Medical
  • Motion Control
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The IL816T-1E high temperature, DC correct, high speed digital isolator from NVE is rated with an isolation voltage of 2.5kVrms and 600Vrms working voltage per VDE V 0884-10, these isolators are available in an ultraminiature 16-pin QSOP package and are specified over a temperature range of −40°C to +125°C. IL800 series are industry’s top-of-the-line isolators with the best specification within their class. They are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology and featuring an internal refresher clock to ensure response to DC states of input within 9μs maximum. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life.

  • High speed, DC-correct digital isolator
  • Multidirectional four channel isolation (2 transmit, 2 receive)
  • High speed at 110 Mbps typical
  • Isolation voltage of 2.5kVrms
  • Working voltage of 600 Vrms per VDE V 0884-10
  • Temperature range of −40°C to +125°C
  • 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
  • Internal refresher clock to ensure response to DC states of input within 9μs maximum
  • Typical quiescent current 0.0013A per channel
  • Typical pulse width distortion of 2ns (at 5V)
  • Channel to channel skew 3ns
  • Typical propagation delay of 10ns
  • Barrier life of 44000 years
  • Excellent magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 16-pin QSOP package

The NVE IL816T-1E series isolator provides a typical propagation delay of only 10ns and a pulse width distortion as low as 2ns, achieving the best specifications of any isolator. Typical transient immunity of 50 kV/µs is unsurpassed.

Typical applications for the IL800 series include:

  • Digital fieldbus
  • ADCs and DACs
  • Ground loop elimination
  • Multiplex data transmission
  • Board-to-board communication
  • Logic level shifting
  • RS-485 and RS-422
  • Digital noise reduction
  • Data interfaces
  • Peripheral interfaces
  • Parallel bus

The below table gives the recommended operating conditions of the NVE IL800 high speed digital isolator series including the IL816T-1E:

NVE IL816T-1E Specifications

Specifications

Weight 0.02500 kg
Dimensions 1.42 x 4.00 x 5.00mm
Series / Model

Temperature Range (°C)

Supply Voltage

Maximum Data Rate

Propagation Delay

Creepage Distance
