NVE IL3422-3E

  • NVE

Product Features

  • High speed passive input RS-422 isolated transceiver
  • Bus ESD protection 15kV
  • Typical common mode rejection of 20 kV/µs
  • Isolation of 2.5 kVRMS(1 minute)
  • No carrier or clock for low EMI emissions and susceptibility
  • Thermal shutdown protection
  • UL 1577 recognized; IEC 60747-5-5 (VDE 0884) certified
  • 0.15″ 16-pin SOIC package

Applications

  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The IL3422-3E high speed passive input RS-422 isolated transceiver from NVE is designed to galvanically isolate bidirectional data communication over balanced transmission lines. The IL3422 delivers at least 2V into a 100Ω load for excellent data integrity over long cables, and is also compatible with 3.3 V input supplies, allowing interfacing to standard microcontrollers without additional level shifting. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. This particular device uses NVE’s patented IsoLoop spintronic Giant Magnetoresistance (GMR) technology and comes in a 0.15″ 16-pin SOIC package.

  • Surface-mount high speed passive input RS-422 isolated transceiver
  • Power supply VDD1 between 3.3V and 5V, VDD2 between 4.5V and 5V
  • Data rate of 20Mbps
  • Bus ESD protection of 15kV
  • Isolation of 2,500 VRMS (1 minute)
  • Temperature range of −40°C to +85°C
  • Typical common mode rejection 20kV/μs
  • No carrier or clock for low EMI emissions and susceptibility
  • Thermal shutdown protection
  • Propagation delay of 50ns (5V)
  • Coil resistance of 85Ω
  • UL 1577 recognised; IEC 60747-5-5 (VDE 0884) certified
  • 0.15″ 16-pin SOIC package

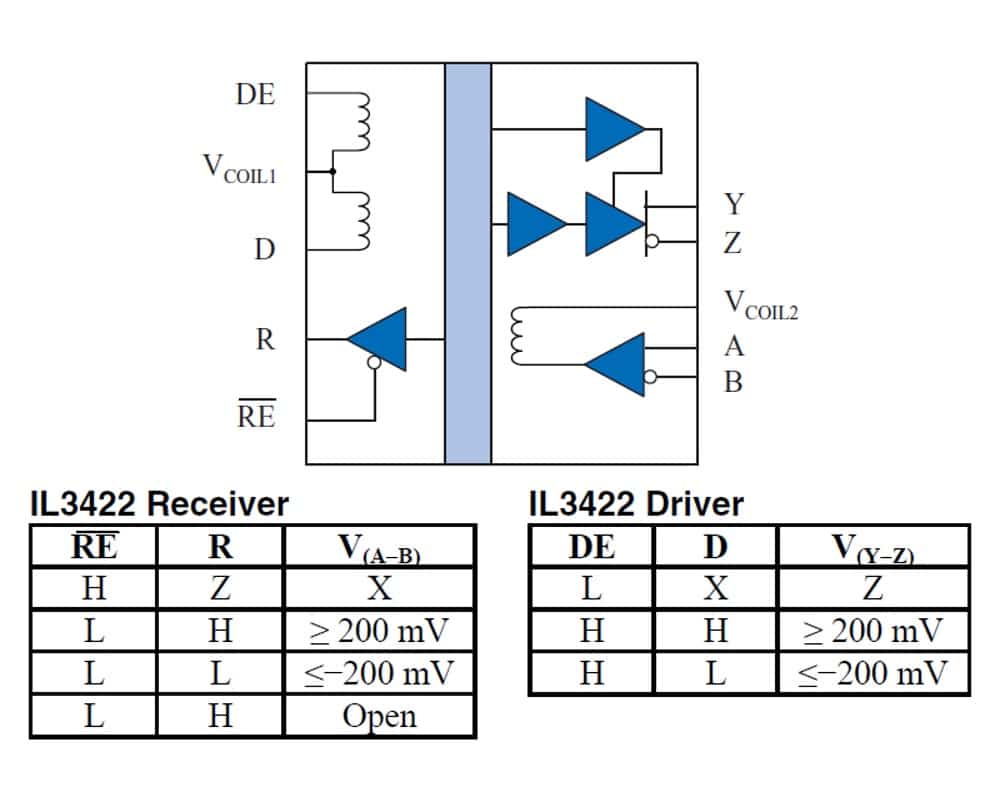

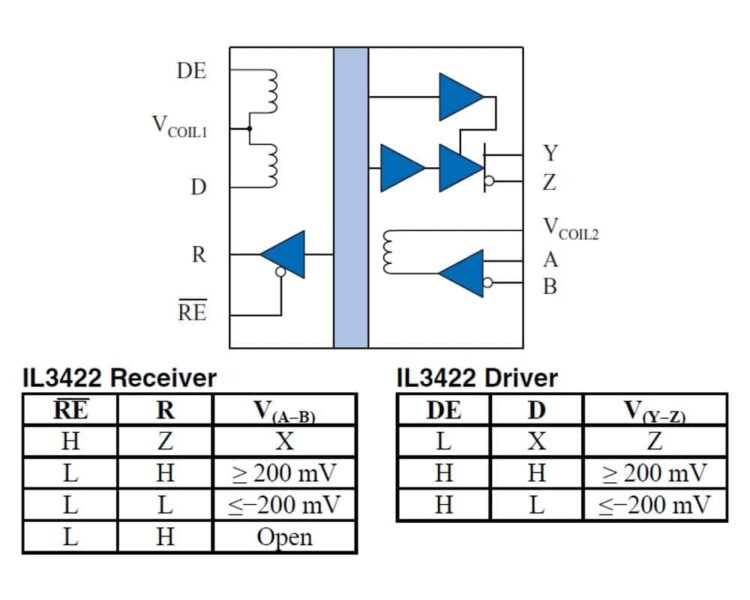

The IL3422 has current limiting and thermal shutdown features to protect against output short circuits and bus contentions that may cause excessive power dissipation, and also incorporate a “fail-safe if open” design, ensuring a logic high on R if the bus lines are disconnected or “floating.”

Typical applications for the IL3422 series include:

  • Data loggers
  • P.O.S. systems
  • Security networks
  • Building environmental controls
  • Industrial control networks
  • Factory automation

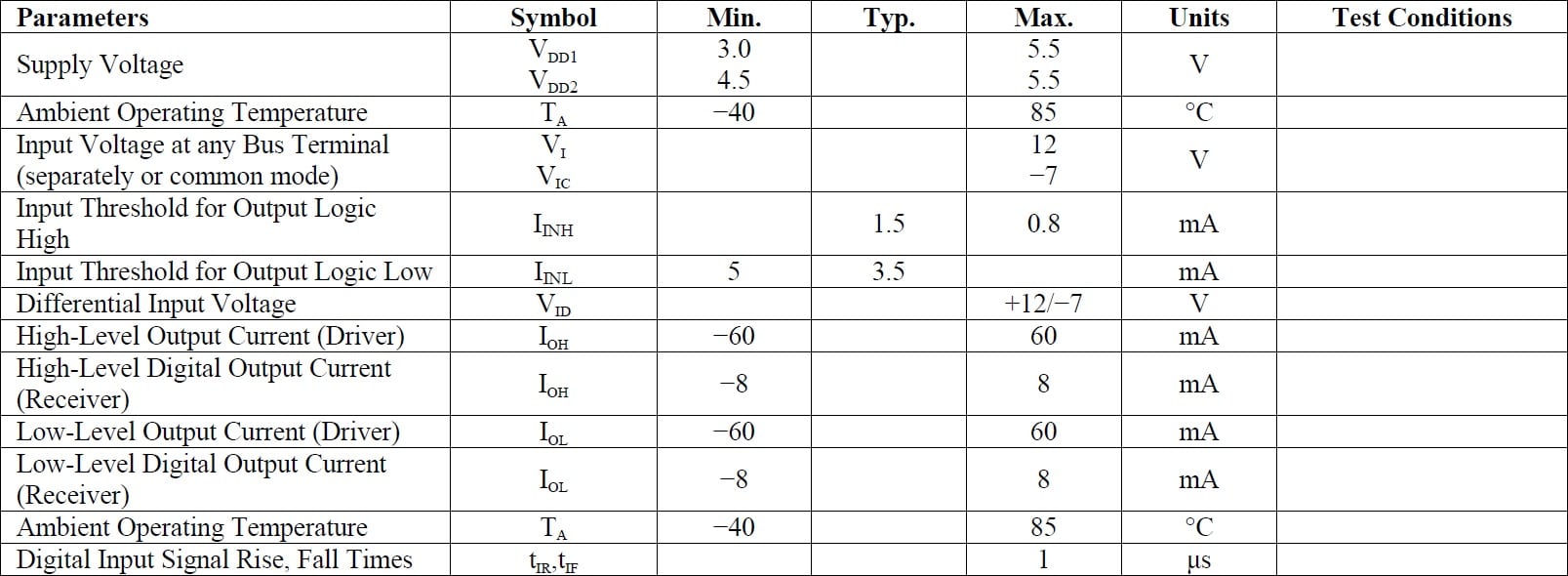

The below table gives the recommended operating conditions for the NVE IL3422 high speed passive input RS-422 differential bus transceiver series including the IL3422-3E:

NVE IL3422-3E Specifications

Specifications

Weight 0.02500 kg
Dimensions 1.40 x 3.81 x 9.80mm
Series / Model

Temperature Range (°C)

Supply Voltage

,

Maximum Data Rate

Propagation Delay

Creepage Distance
