NVE IL610A-2E

  • NVE

Product Features

  • Passive input digital isolators, open drain output
  • Single channel isolation
  • Flexible inputs, wide input volatge ranges
  • Working voltage of 300VRMS
  • 1kVRMS/1.5kVdc high voltage endurance
  • 20 kV/μs typical (15 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • 3ns typical pulse width distortion
  • 44000 year barrier life
  • Good magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 8-pin PDIP package

Applications

  • Compliant

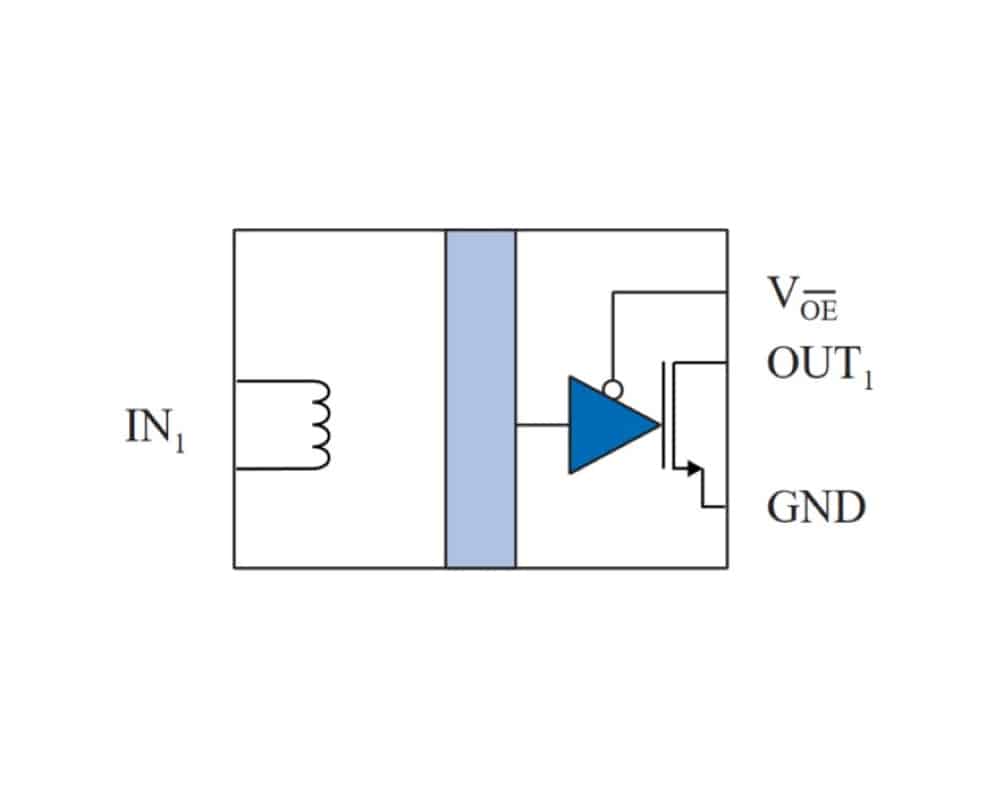

The IL610A-2E passive input digital isolator from NVE is a single channel signal coupler with flexible, wide range of input voltage and open drain output. This isolator features data rate of 10Mbps, working voltage of 300VRMS and endures high voltage of 1kVrms/1.5kVdc. The IL610A-2E is available in an 8-pin PDIP package, specified over a temperature range of −40°C to +85°C. The IL610A series from NVE are a passive input digital isolator devices manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. They have a similar interface but better performance than optocouplers, featuring a higher package density and functioning over a wide range of data ranges, edge speeds and power supply levels. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL610A series, including IL610A-2E is UL1577 recognised and certified to IEC 60747-5-5 (VDE 0884).

  • Surface-mount passive input digital isolator with open drain output
  • Single channel isolation
  • High speed with data rate of 10 Mbps
  • Flexible input with range of input voltage ranges
  • Working voltage of 300VRMS
  • Current input of 5mA
  • Failsafe output (logic high output for zero coil current)
  • High voltage endurance of 1kVrms/1.5kVdc
  • Temperature range of −40°C to +85°C
  • No carrier or clock for low EMI emissions and susceptibility
  • 20 kV/μs typical (15 kV/μs minimum) common mode transient immunity
  • Typical pulse width distortion of 3ns
  • Typical propagation delay of 8ns
  • Barrier life of 44000 years
  • Good magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 8-pin PDIP package

Typical applications for the IL610A series include:

  • Digital fieldbus
  • Optocoupler replacement
  • RS-485, RS-422 or RS-232
  • CAN Bus / Device Net
  • Differetial line receiver
  • SPI interface
  • Space-critical multi-channel applications

The below table gives the recommended operating conditions of the NVE IL610A high speed digital isolator series including the IL610A-2E:

NVE IL610A-2E Specifications

Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.02500 kg
Dimensions 4.32 x 10.20 x 8.40mm
Creepage Distance

Maximum Data Rate

Propagation Delay

,

Series / Model

Supply Voltage

Temperature Range (°C)
