• NVE

Product Features

  • Passive input digital isolators, open drain output
  • Two channel, unidirectional isolation
  • Flexible inputs, wide input volatge ranges
  • Working voltage of 150VRMS
  • 1kVRMS/1.5kVdc high voltage endurance
  • 20 kV/μs typical (15 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • 3ns typical pulse width distortion
  • 44000 year barrier life
  • Good magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 8-pin MSOP package


  • Medical
  • Motion Control
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

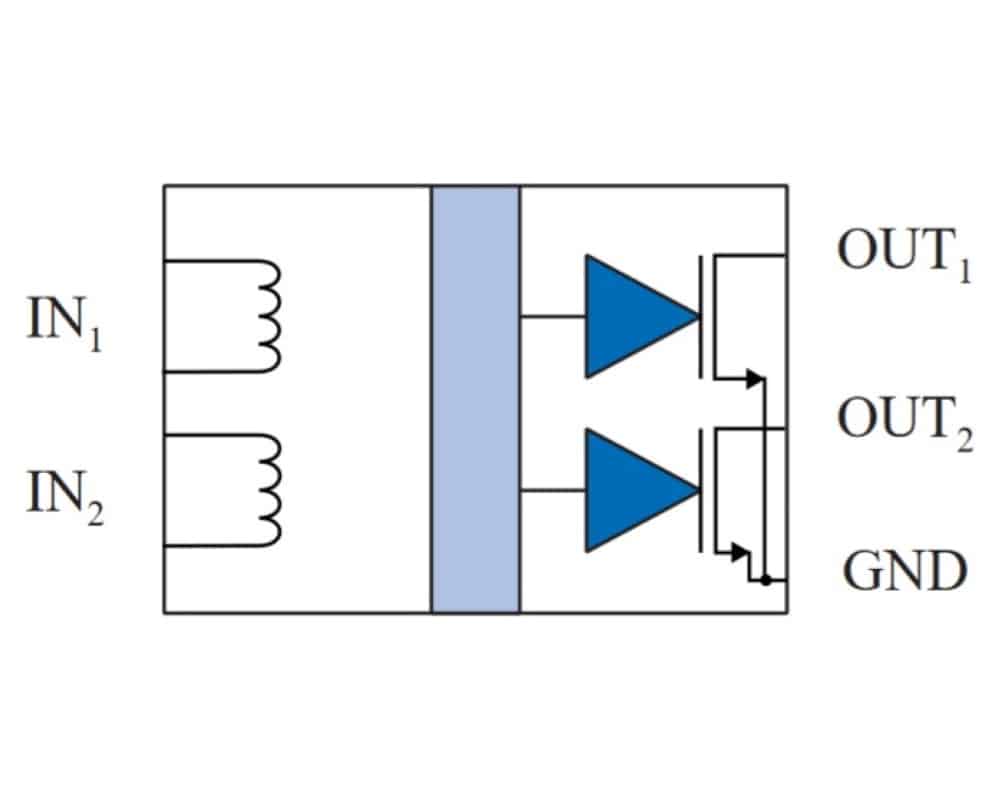

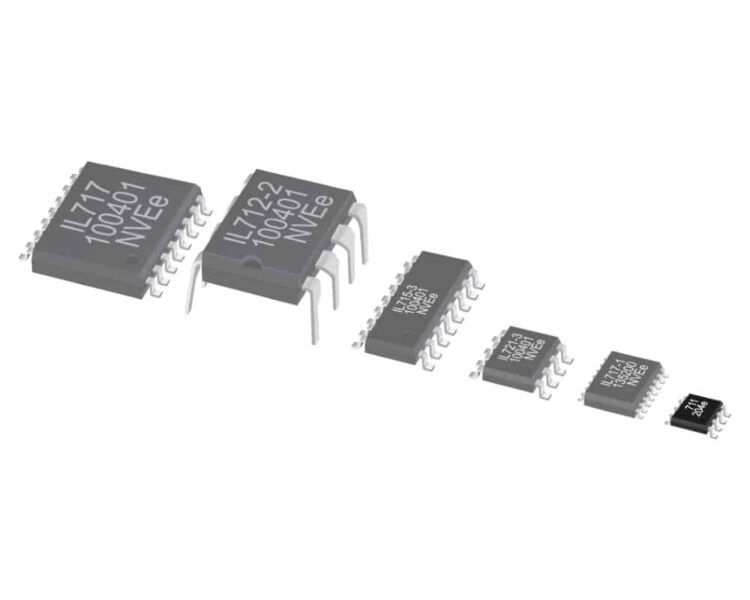

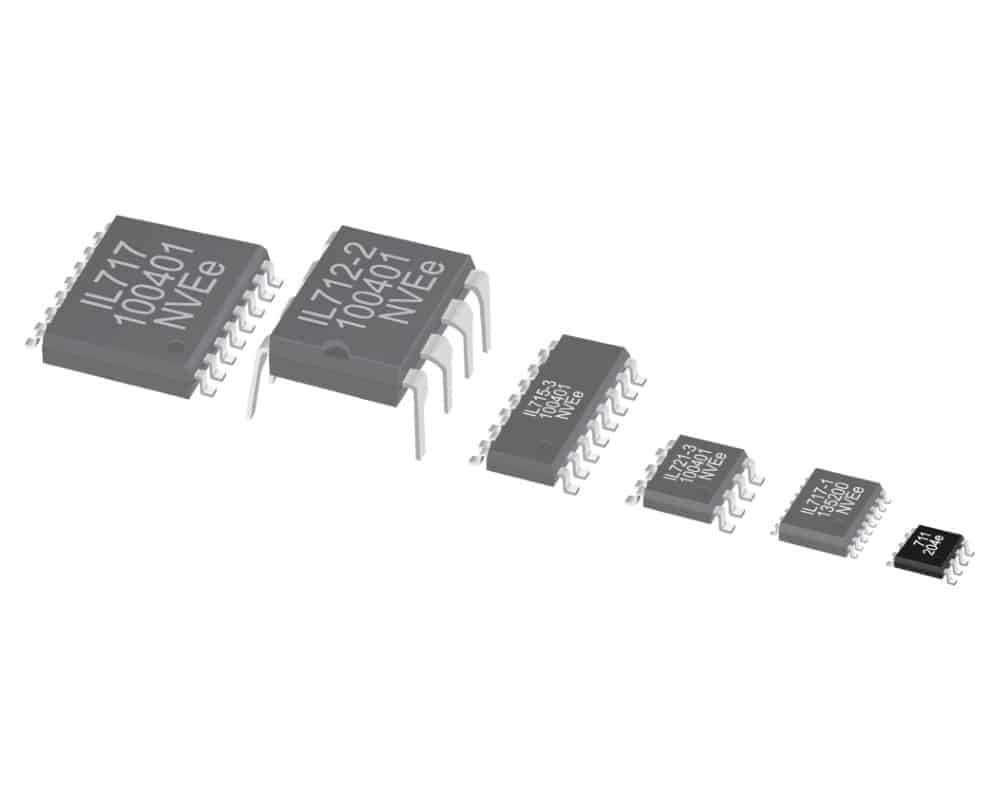

The IL611A-1E passive input digital isolator from NVE is a two channel signal coupler with flexible, wide range of input voltage and open drain output. This isolator features data rate of 10Mbps, working voltage of 150VRMS and endures high voltage of 1kVrms/1.5kVdc. The IL611A-1E is available in an 8-pin MSOP package, specified over a temperature range of −40°C to +85°C. The IL611A series from NVE are a passive input digital isolator devices manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. They have a similar interface but better performance than optocouplers, featuring a higher package density and functioning over a wide range of data ranges, edge speeds and power supply levels. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL611A series, including IL611A-1E is UL1577 recognised and certified to IEC 60747-5-5 (VDE 0884).

  • Surface-mount passive input digital isolator with open drain output
  • Two channel, unidirectional isolation
  • High speed with data rate of 10 Mbps
  • Flexible input with range of input voltage ranges
  • Working voltage of 150VRMS
  • Current input of 5mA
  • Failsafe output (logic high output for zero coil current)
  • High voltage endurance of 1kVrms/1.5kVdc
  • Temperature range of −40°C to +85°C
  • No carrier or clock for low EMI emissions and susceptibility
  • 20 kV/μs typical (15 kV/μs minimum) common mode transient immunity
  • Typical pulse width distortion of 3ns
  • Typical propagation delay of 8ns
  • Barrier life of 44000 years
  • Good magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 8-pin MSOP package

Typical applications for the IL611A series include:

  • Digital fieldbus
  • Optocoupler replacement
  • RS-485, RS-422 or RS-232
  • CAN Bus / Device Net
  • Differetial line receiver
  • SPI interface
  • Space-critical multi-channel applications

The below table gives the recommended operating conditions of the NVE IL611A high speed digital isolator series including the IL611A-1E:

NVE IL611-1E Specifications


Weight 0.02500 kg
Dimensions 1.10 x 3.10 x 3.10mm
Temperature Range (°C)

Series / Model

Supply Voltage

Maximum Data Rate

Propagation Delay


Creepage Distance
