| Weight | 0.02500 kg |
|---|---|
| Dimensions | 1.58 x 3.99 x 10.00mm |
| Creepage Distance | 4.03mm |
| Maximum Data Rate | 100 Mbps |
| Propagation Delay | 8ns at 5V |
| Series / Model | |
| Supply Voltage | 3 to 5V |
| Temperature Range | -40 to +85°C |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

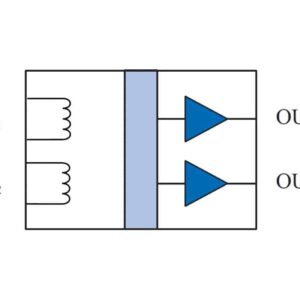

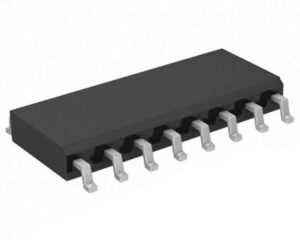

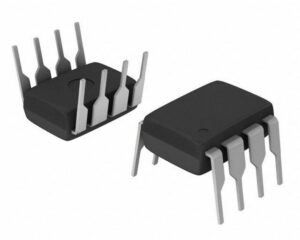

The IL611-3E passive input digital isolator from NVE is a two channel signal coupler with flexible, wide range of input voltage and CMOS output. This isolator features data rate of 100Mbps, working voltage of 150VRMS and endures high voltage of 1kVrms/1.5kVdc. The IL611-2E is available in an 16-pin 0.15″ SOIC package, specified over a temperature range of −40°C to +85°C. The IL611 series from NVE are a passive input digital isolator CMOS devices manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. They have a similar interface but better performance than optocouplers, featuring a higher package density and functioning over a wide range of data ranges, edge speeds and power supply levels. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL611 series, including IL611-3E is UL1577 recognised and certified to IEC 60747-5-5 (VDE 0884).
Typical applications for the IL611 series include:
The below table gives the recommended operating conditions of the NVE IL611 high speed digital isolator series including the IL611-3E:
