NVE IL610-3E

  • Compliant
  • NVE

Product Features

  • Passive input digital isolators, CMOS output
  • Single channel isolation
  • Flexible inputs, wide input volatge ranges
  • Working voltage of 150VRMS
  • 1kVRMS/1.5kVdc high voltage endurance
  • 20 kV/μs typical (15 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • 3ns typical pulse width distortion
  • 44000 year barrier life
  • Good magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 16-pin 0.15″ SOIC package

Applications

  • Medical
  • Motion Control
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement

Description

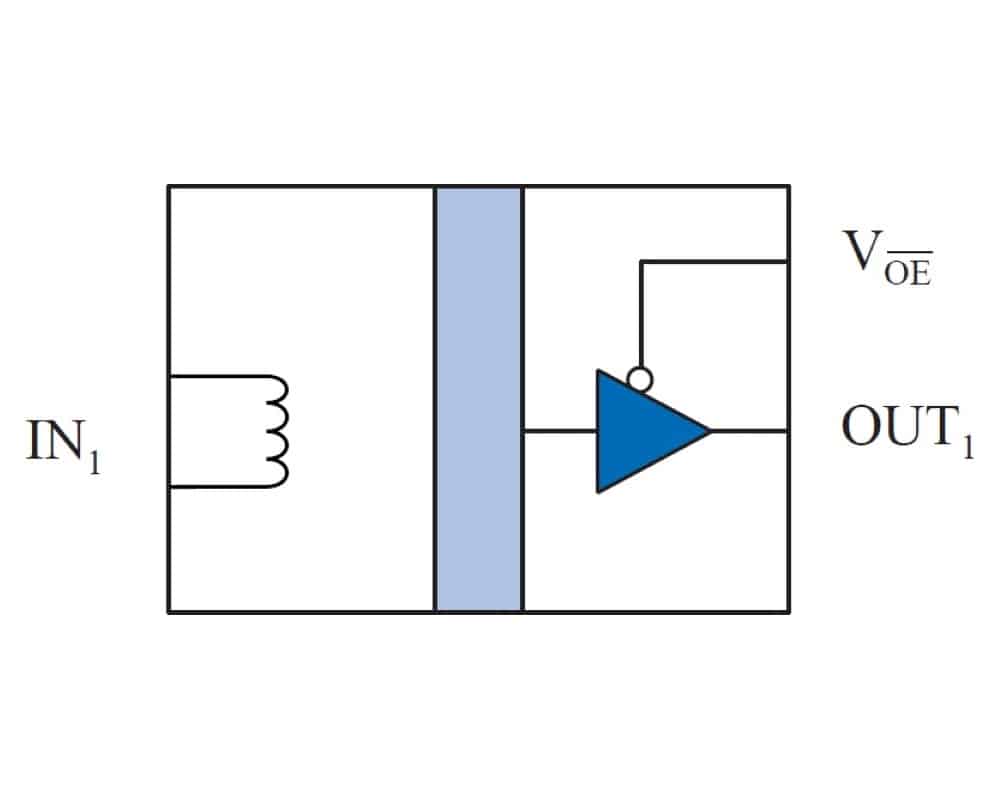

The IL610-3E passive input digital isolator from NVE is a single channel signal coupler with flexible, wide range of input voltage and CMOS output. This isolator features data rate of 100Mbps, working voltage of 150VRMS and endures high voltage of 1kVrms/1.5kVdc. The IL610-3E is available in an 16-pin 0.15″ SOIC package, specified over a temperature range of −40°C to +85°C. The IL610 series from NVE are a passive input digital isolator CMOS devices manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. They have a similar interface but better performance than optocouplers, featuring a higher package density and functioning over a wide range of data ranges, edge speeds and power supply levels. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL610 series, including IL610-3E is UL1577 recognised and certified to IEC 60747-5-5 (VDE 0884).

  • Surface-mount passive input digital isolator with CMOS output
  • Single channel isolation
  • High speed with data rate of 100 Mbps
  • Flexible input with range of input voltage ranges
  • Working voltage of 150VRMS
  • Current input of 5mA
  • Failsafe output (logic high output for zero coil current)
  • High voltage endurance of 1kVrms/1.5kVdc
  • Temperature range of −40°C to +85°C
  • No carrier or clock for low EMI emissions and susceptibility
  • 20 kV/μs typical (15 kV/μs minimum) common mode transient immunity
  • Typical pulse width distortion of 3ns
  • Typical propagation delay of 8ns
  • Barrier life of 44000 years
  • Good magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 16-pin 0.15″ SOIC package

Typical applications for the IL610 series include:

  • Digital fieldbus
  • Optocoupler replacement
  • RS-485, RS-422 or RS-232
  • CAN Bus / Device Net
  • Differetial line receiver
  • SPI interface
  • Space-critical multi-channel applications

The below table gives the recommended operating conditions of the NVE IL610 high speed digital isolator series including the IL610-3E:

NVE IL610-3E Specifications

Specifications

Weight 0.02500 kg
Dimensions 10.00 × 3.99 × 1.58 mm
Series / Model

Additional Features

Passive input digital isolators, CMOS output Single channel isolation Flexible inputs, wide input volatge ranges Working voltage of 150VRMS 1kVRMS/1.5kVdc high voltage endurance 20 kV/μs typical (15

Temperature Range (°C)

Supply Voltage

Maximum Data Rate

Propagation Delay

Creepage Distance

RoHS Compliant Product – NVE

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
