NVE IL614-3E

  • NVE

Product Features

  • Passive input digital isolators, CMOS output
  • Three channel, multidirectional isolation
  • Flexible inputs, wide input volatge ranges
  • Working voltage of 150VRMS
  • 1kVRMS/1.5kVdc high voltage endurance
  • 20 kV/μs typical (15 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • 3ns typical pulse width distortion
  • 44000 year barrier life
  • Good magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 16-pin 0.15″ SOIC package


  • Medical
  • Motion Control
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

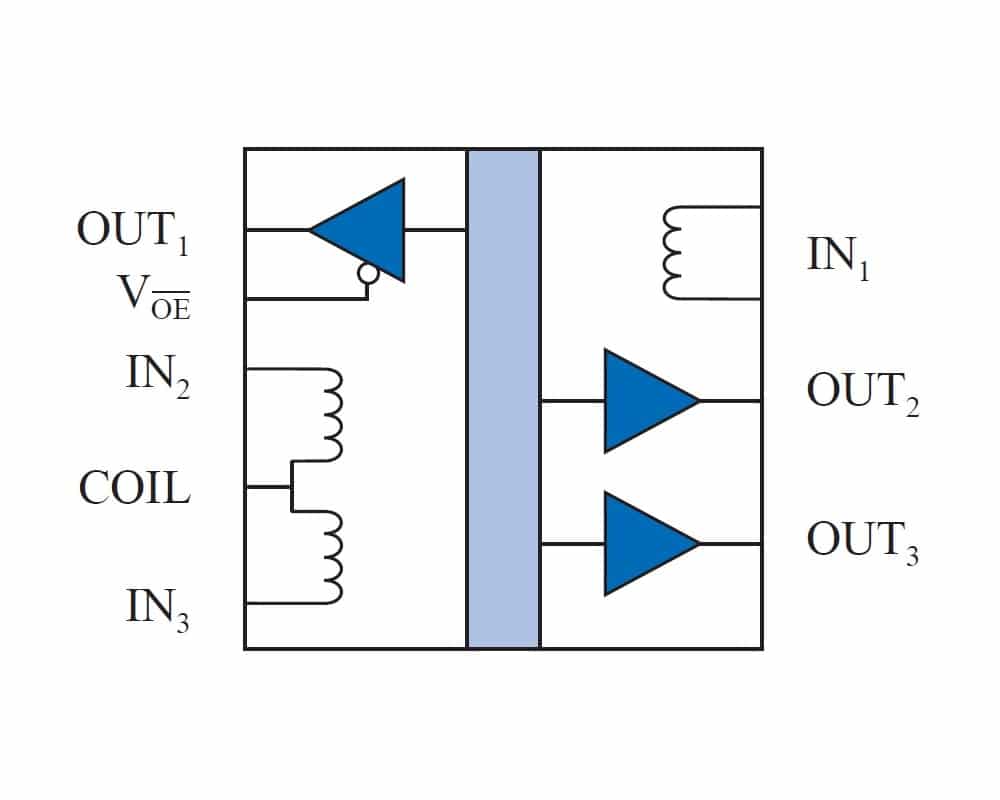

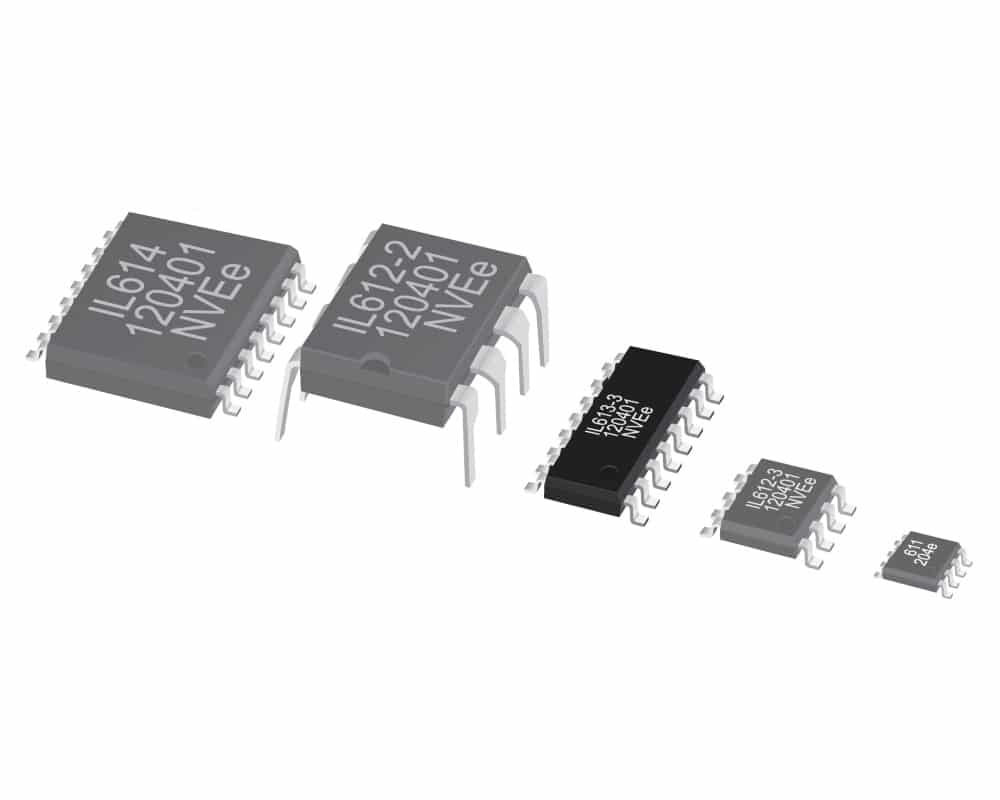

The IL614-3E passive input digital isolator from NVE is a three channel signal coupler with flexible, wide range of input voltage and CMOS output. This isolator features data rate of 100Mbps, working voltage of 150VRMS and endures high voltage of 1kVrms/1.5kVdc. The IL614-3E is available in an 16-pin 0.15″ SOIC package, specified over a temperature range of −40°C to +85°C. The IL614 series from NVE are a passive input digital isolator CMOS devices manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. They have a similar interface but better performance than optocouplers, featuring a higher package density and functioning over a wide range of data ranges, edge speeds and power supply levels. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL614 series, including IL614-3E is UL1577 recognised and certified to IEC 60747-5-5 (VDE 0884).

  • Surface-mount passive input digital isolator with CMOS output
  • Three channel multidirectional isolation
  • High speed with data rate of 100 Mbps
  • Flexible input with range of input voltage ranges
  • Working voltage of 150VRMS
  • Current input of 5mA
  • Failsafe output (logic high output for zero coil current)
  • High voltage endurance of 1kVrms/1.5kVdc
  • Temperature range of −40°C to +85°C
  • No carrier or clock for low EMI emissions and susceptibility
  • 20 kV/μs typical (15 kV/μs minimum) common mode transient immunity
  • Typical pulse width distortion of 3ns
  • Typical propagation delay of 8ns
  • Barrier life of 44000 years
  • Good magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 16-pin 0.15″ SOIC package

Typical applications for the IL614 series include:

  • Digital fieldbus
  • Optocoupler replacement
  • RS-485, RS-422 or RS-232
  • CAN Bus / Device Net
  • Differetial line receiver
  • SPI interface
  • Space-critical multi-channel applications

The below table gives the recommended operating conditions of the NVE IL614 high speed digital isolator series including the IL614-3E:

NVE IL614-3E Specifications


Weight 0.02500 kg
Dimensions 1.58 x 3.99 x 10.00mm
Series / Model

Temperature Range (°C)

Supply Voltage

Maximum Data Rate

Propagation Delay

Creepage Distance
