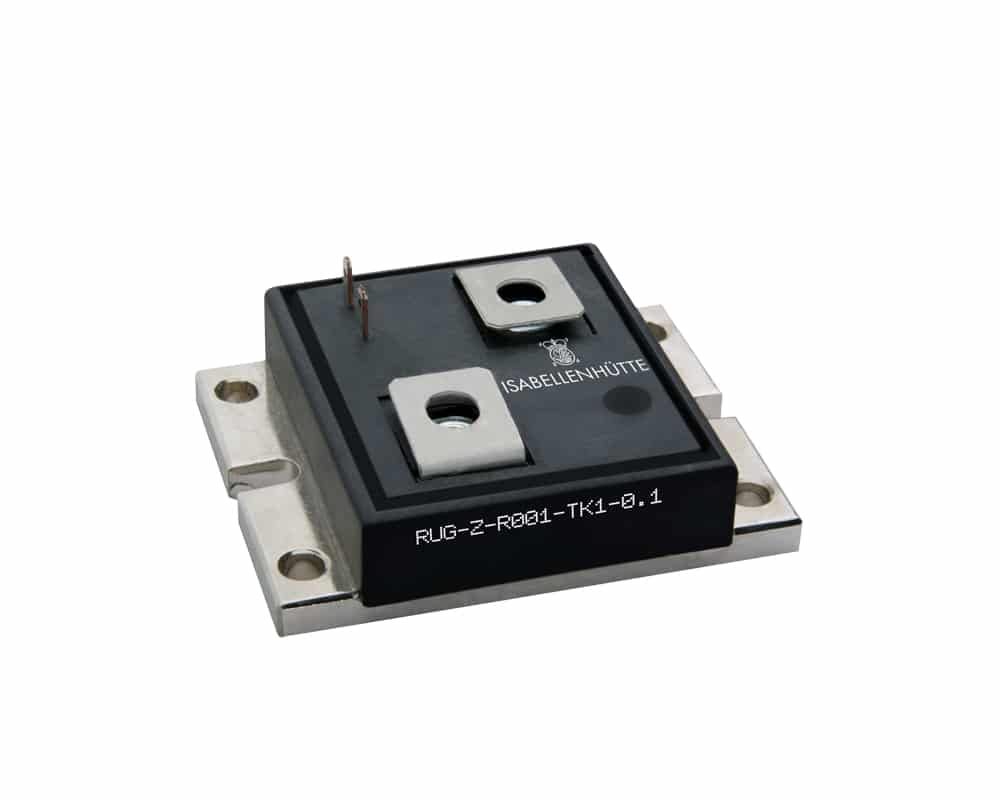

Isabellenhütte RUG-Z series [JPG]

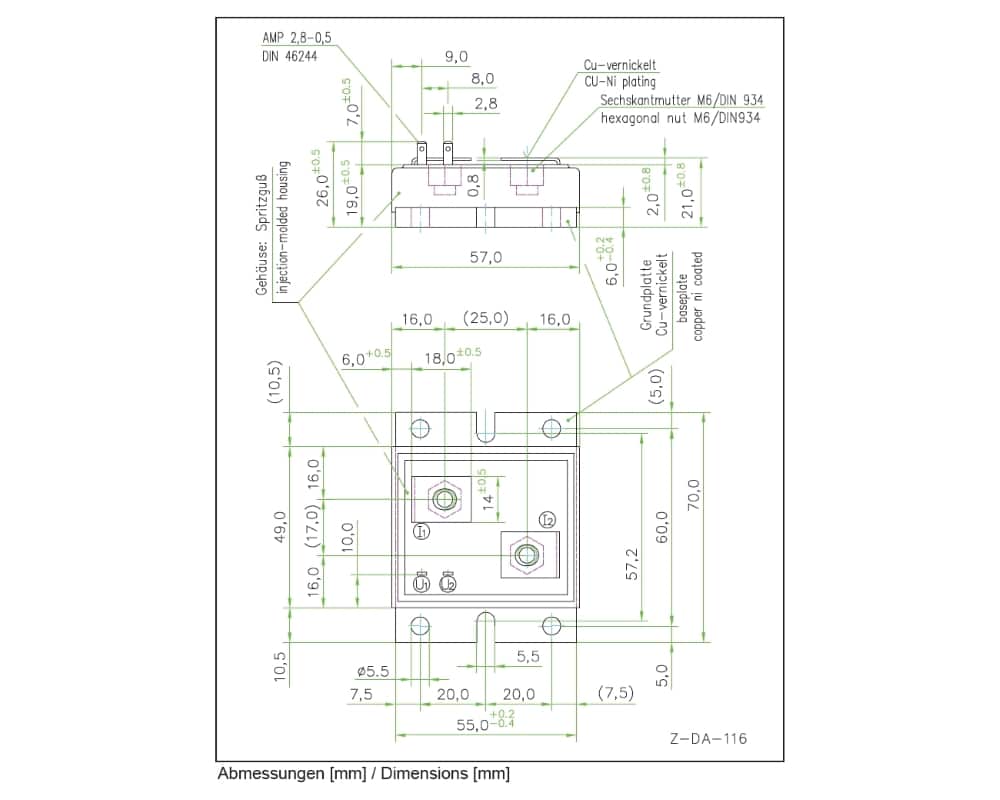

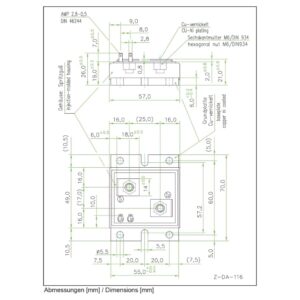

Isabellenhütte RUG-Z series dimensions diagram
Isabellenhütte RUG-Z series [JPG]
Isabellenhütte RUG-Z series dimensions diagram

Isabellenhütte RUG-Z Series

Product Features

  • High-precision shunt resistor
  • 4-terminal surface mount design
  • Resistance range from 0.0005Ω to 100Ω
  • Tolerances of ±0.1% and ±1%
  • TCR values from <±1 ppm/°C
  • Power rating of 250W on a suitable heat sink
  • Temperature range from -55°C to +110°C
  • Compliant
Datasheet
Any questions, contact us?
Why buy from Rhopoint?
Engineering Calculators
Application Notes

Rhopoint wishes to notify customers that Isabellenhütte has made the decision to discontinue the RUG-Z High-precision shunt resistor series. Customers are advised that the final date for placing orders is set for the 31st of July, 2024. It is important to note that the last delivery date for these orders will be the 31st of December, 2024.
To assist our customers during this transition, Rhopoint presents a selection of RUG-Z alternatives.

The RUG-Z high-precision shunt resistor series from Isabellenhütte offers 4-terminal connection technology of very high precision current sensing shunts with a maximum power rating of 250W on a suitable heat sink. Designed for measuring high currents with very high accuracy in power supplies such as those for superconducting magnets. The RUG-Z series from Isabellenhütte has a single pulse power load of 50J (tp <10ms) capabilities.

  • High-precision shunt resistor
  • 4-terminal surface mount design
  • Resistance values from 0.0005Ω to 100Ω
  • Tolerances of ±0.1% and ±1%
  • TCR from <±1 ppm/°C (+20°C to +60°C)
  • 250W permanent power at 85°C (with a suitable heat sink)
  • Pulse power rating of 50J for <10ms
  • Temperature range from -55°C to +110°C
  • Inductance of <10nH
  • Stability of <0.2% (TK=85°C) (at rated power, deviation after 2000h)
  • Dielectric withstanding voltage of 500VAC



Typical applications for the RUG-Z high-precision shunt resistor series include:

  • High current sensing
  • Measurement equipment
  • Reference resistors in laboratories
  • Current source
  • Laboratory power supply

Isabellenhütte RUG-Z Series Specification Table

AttributesValue
Resistance value0.5mΩ - 100Ω
Tolerance±0.1% / ±1%
TCR (20-60°C)<±1 ppm/°C / <±3 ppm/°C / <±10 ppm/°C
Temperature range-55°C to +110°C
Current rating387A
Power rating250W
Single pulse load power50J (<10 ms)
Internal heat resistance<0.1°C/W (Rthi)
Inductance<10nH
Stability (deviation after 2000hrs)<0.2% (Tᴋ = 85°C)
Tᴋ = Terminal Temperature

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

Dimensions 21.00 x 55.00 x 70.00mm
Product Type

Package / Size

Resistance Value

, , , , , , , , , , , , , , , , , , ,

Minimum Resistance

500µΩ
Maximum Resistance

100Ω
Tolerance

,

Temperature Coefficient

, ,

Power Rating

Temperature Range (°C)

-55 to +110°C
Series / Model

Ordering Info

Below is the model number configuration for the RUG-Z series from Isabellenhütte.
Ordering example: RUG-Z-R001-0.1-TK10
RUG-Z-XXXXXX-X.X-TKXX

Series / Model (RUG-Z)

RUG-Z
RUG-Z

Resistance Value (XXXXXX)

Resistance value, in ohms, is expressed by a series of 4, 5 or 6 characters, where the character R (ohms) designates the location of the decimal point.

Tolerance (X.X)

0.1
±0.1%
1.0
±1%

Temperature Coefficient (TKXX)

TK01
±1 ppm/°C
TK03
±3 ppm/°C
TK10
±10 ppm/°C

Isabellenhütte RUG-Z Series - Available Resistance Values and Temperature Coefficients (0.1% Tolerance)

Resistance ValuePart Number Value0.1% Tolerance1 ppm/°C TCR3 ppm/°C TCR10 ppm/°C TCR
0.0005ΩR0005
0.001ΩR001
0.002ΩR002
0.003ΩR003
0.005ΩR005
0.008ΩR008
0.01ΩR010
0.02ΩR020
0.05ΩR050
0.1ΩR100
0.2ΩR200
0.5ΩR500
1Ω1R00
2Ω2R00
4.7Ω4R70
5Ω5R00
10Ω10R0
100Ω100R

Isabellenhütte RUG-Z Series - Available Resistance Values and Temperature Coefficients (1% Tolerance)

Resistance ValuePart Number Value1% Tolerance1 ppm/°C TCR3 ppm/°C TCR10 ppm/°C TCR
0.001ΩR001
0.00105ΩR00105
0.008ΩR008
0.01ΩR010
0.0105ΩR0105
0.05ΩR050
4.7Ω4R70

Product Variations

<
SKUResistance ValueToleranceTemperature Coefficient
RUG-Z-R00105-1.0-TK100.00105Ω±1%±10 ppm/°C
RUG-Z-R0105-1.0-TK100.0105Ω±1%±10 ppm/°C
Isa RUG-Z-R001-0.1-TK100.001Ω±0.1%±10 ppm/°C
Isa RUG-Z-R001-0.1-TK10.001Ω±0.1%±1 ppm/°C
Isa RUG-Z-R001-0.1-TK30.001Ω±0.1%±3 ppm/°C
Isa RUG-Z-R001-1.0-TK100.001Ω±1%±10 ppm/°C
Isa RUG-Z-R001-1.0-TK10.001Ω±1%±1 ppm/°C
Isa RUG-Z-R001-1.0-TK30.001Ω±1%±3 ppm/°C
Isa RUG-Z-R002-0.1-TK10.002Ω±0.1%±1 ppm/°C
Isa RUG-Z-R002-0.1-TK30.002Ω±0.1%±3 ppm/°C
Isa RUG-Z-R005-0.1-TK10.005Ω±0.1%±1 ppm/°C
Isa RUG-Z-R005-0.1-TK30.005Ω±0.1%±3 ppm/°C
Isa RUG-Z-R010-0.1-TK10.01Ω±0.1%±1 ppm/°C
Isa RUG-Z-R010-0.1-TK30.01Ω±0.1%±3 ppm/°C
Isa RUG-Z-R010-1.0-TK10.01Ω±1%±1 ppm/°C
Isa RUG-Z-R020-0.1-TK10.02Ω±0.1%±1 ppm/°C
