EnglishJ201
Specifications
| Product Type | |
|---|---|
| Series / Model | |
| Industry Standard P/N | |
| Package / Size | |
| Geometry Type | N0016H |
| Polarity | N-Channel |
| BVgss (min) V | -40 |
| Igss (typ) pA | -1.5 |
| Vgso (min) V | -0.3 |
| Vgso (max) V | 1.5 |
| Idss (min) mA | 0.2 |
| Idss (max) mA | 1 |
| Gm (min) mS | 0.5 |
| En (typ) nV/√Hz | 6 |
| Ciss (max) pF | 4 |
| Crss (max) pF | 1 |
J201 & J202 Series Products
| Product name | Package / Size | Industry Standard P/N | Geometry Type | Polarity | BVgss (min) V | Igss (typ) pA | Vgso (min) V | Vgso (max) V | Idss (min) mA | Idss (max) mA | Gm (min) mS | En (typ) nV/√Hz | Ciss (max) pF | Crss (max) pF | Add to enquiry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

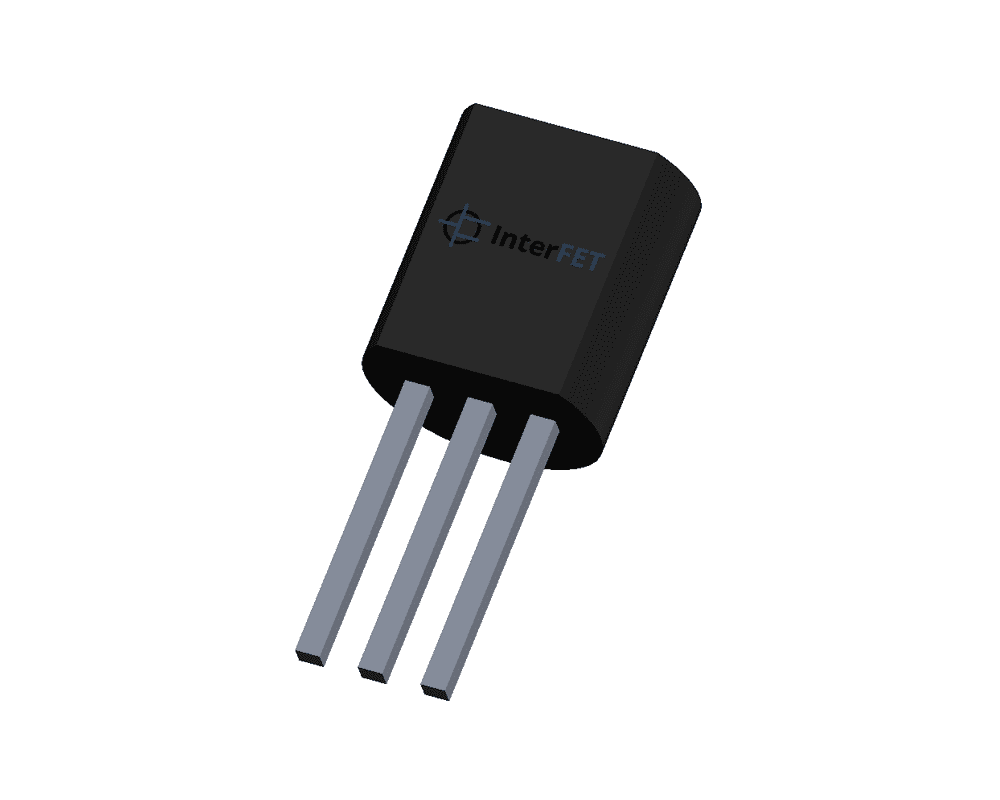

| J201 | TO-92 | J201 | N0016H | N-Channel | -40 | -1.5 | -0.3 | 1.5 | 0.2 | 1 | 0.5 | 6 | 4 | 1 | Add to Enquiry |
|
| J202 | TO-92 | J202 | N0016H | N-Channel | -40 | -1.5 | -0.8 | 4 | -0.9 | -4.5 | 1 | 6 | 4 | 1 | Add to Enquiry |
| SMPJ201 | SOT-23 | J201 | N0016H | N-Channel | -40 | -1.5 | -0.3 | 1.5 | 0.2 | 1 | 0.5 | 6 | 4 | 1 | Add to Enquiry |
Supporting Manufacturer Information
- InterFET Application Note 014: Introduction to JFETs
- InterFET Application Note 015: JFET Fundamentals
- InterFET Application Note 016: JFET Implementations
- InterFET Application Note 017: Common Parameters & Equations
- InterFET Application Note 105: Improved Process for Manufacture of Radiation Hard N-Channel JFETs for Detector Electronics
- InterFET Application Note 107: Biasing JFETs to Achieve Zero Drift
- InterFET CTC-020 Soldering Profile
- InterFET CTC-021 Tape & Reel
- InterFET CTC-022 RoHS Compliance
- InterFET CTC-024 REACH Compliance
