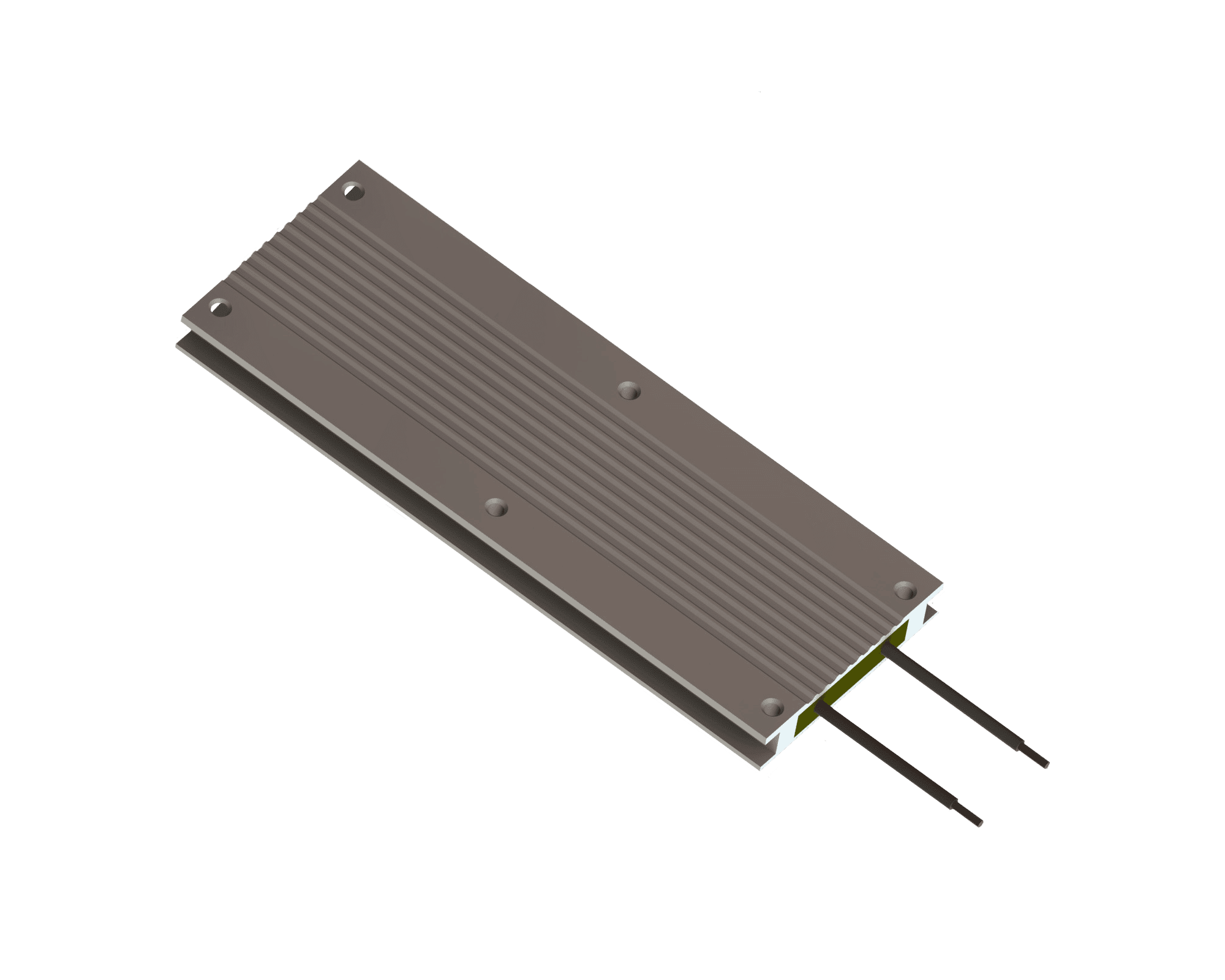

Powertron FHR 2-80110 Series

  • Powertron

Product Features

  • Metal clad precision power resistor
  • Flat type surface-mount design
  • Resistance range from 0.001Ω to 500Ω
  • Tolerance from ±0.5% or ±5%
  • TCR of <±50 ppm/°C
  • Power rating of 600W on a suitable heat sink
  • Temperature range from -40°C to +130°C


  • Power Control
  • Compliant


The FHR 2-80110 metal clad precision power resistor series from Powertron offers a flat type surface-mount cabled connection using foil technology. Designed for mounting onto a heat sink to provide a power rating of 600W, with a resistance range from 0.001Ω to 500Ω and tolerances from 0.5% to 5%. The FHR 2-80110 series from Powertron has a TCR of ±50 ppm/°C (20°C to 60°C) with a maximum current up to 150A and load stability from 0.1%.

  • Metal clad precision power resistor
  • Flat type surface-mount cable connection
  • Resistance range from 0.001Ω to 500Ω
  • Tolerance options of ±0.5%, ±1%, ±2% and ±5% **
  • TCR of ±50 ppm/°C (+20°C to +60°C)
  • Temperature range from -40°C to +130°C
  • Power rating of 600W on a suitable heat sink
  • Power rating of 32W in 70°C free air
  • Maximum current 60A (up to 150A depending on cable type)
  • Thermal resistance 0.09°C/W
  • Inductivity of <50nH
  • Capacity against housing 850pF
  • Designed for heat sink mounting
  • Load Stability (1000h) 0.1%, 0.2% and 0.5% (depending on stress)
  • Cable length 500mm (custom lengths available)


Typical applications for the FHR 2-80110 metal clad precision power resistor series include:

  • Power sources for industrial equipment
  • Motor drives
  • Braking and snubbing applications

Powertron FHR 2-80110 Specification Table

Resistance value *0.001Ω to 500Ω
Tolerance **±0.5% / ±1% / ±2% / ±5%
TCR<±50 ppm/°C (20-60°C)
Temperature range-40°C to +130°C
Power rating32W (free air) / 600W (on a suitable heatsink)
Thermal resistance0.09 K/W)
Stability (1000h)0.1% / 0.2% / 0.5% (depends on stress)
Voltage proof1.5 KVDC
Maximum current60A / 70A / 85A / 100A / 120A / 150A
Thermal EMF0.1 µV/K
Capacity against Housing850pF

* Please visit the Ordering Info tab or contact us for further details
** other tolerances available upon request


Powertron GmbH is a leading manufacturer of precision and higher power resistors in various package sizes, who are part of VPG Foil Resistors product group. Founded in 1990, they produce low-resistance and high-end resistive solutions utilising their thick film technology for a variety of applications such as the ones above. With Powertron resistors, designers can significantly reduce circuit errors and greatly improve overall circuit performance by taking advantage of their technologies and customer-oriented products, designed to satisfy challenging technical requirements. Please visit http://www.vishaypg.com/powertron for more information.

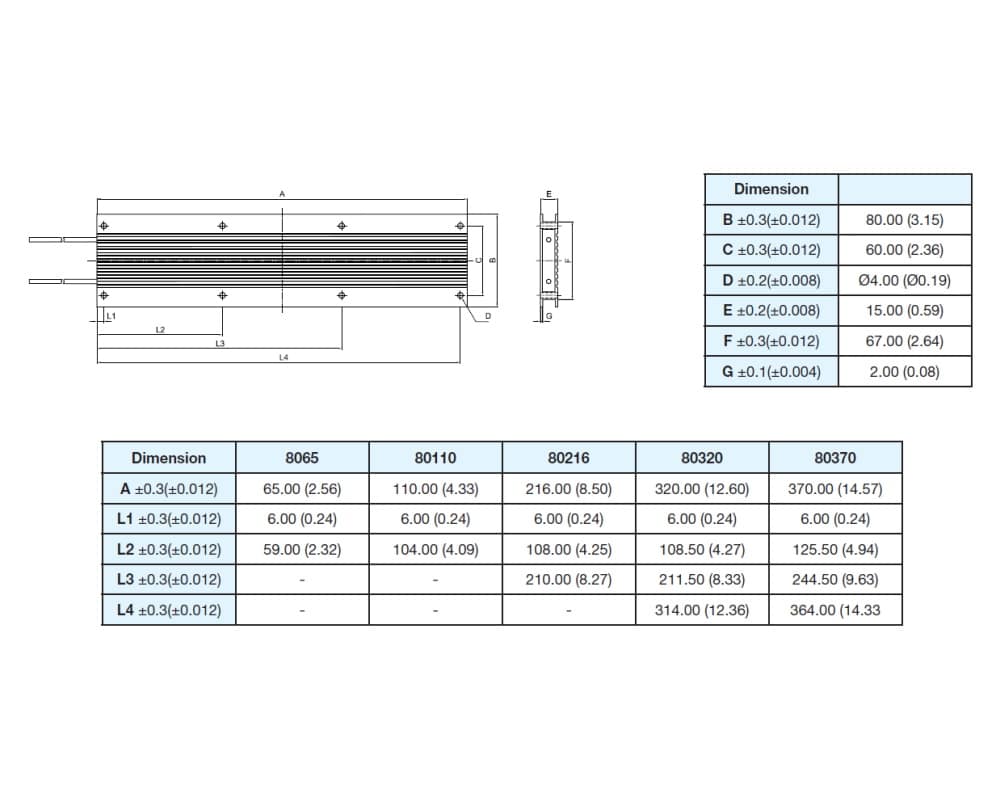

Dimensions 80 x 15 x 65mm
Product Type

, , ,

Temperature Coefficient

Resistance Value

Series / Model

Minimum Resistance

Maximum Resistance


, , ,

Power Rating


Current Rating

, , , , ,

Temperature Range (°C)

Package / Size

Lead Length
