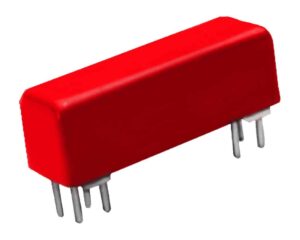

The 2904 series reed relay from Coto features available coil voltage options of 5VDC and 12VDC with a switching voltage of 200V and switching current of 0.5A with optional Electrostatic shield for reducing capacitive coupling, coaxial shielding for 50Ω impedance. The 2900 series from Coto are considered ideal for high speed switching compared to electromechanical relays, very small footprint of 0.2in2. They have hermetically sealed contacts for long life and their epoxy coated steel shell provides magnetic shielding. The 2904 series are ideally suited to the needs of automated test equipment and RF requirements, specifically engineered for OEM designs and maintenance of existing production fixtures.
- Reed relay
- Nominal coil voltage options of 5VDC and 12VDC
- Contact form of 1A
- Switching voltage of 200V
- Dielectric strength of 350VDC
- Contact rating 10W
- Switching current 0.5A
- Shielding options available electrostatic, coaxial or no shielding
- Operating temperature range −20°C to +85°C
- Encapsulated PICO package
Typical Applications include:
- Automated test equipment
- RF requirements
For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.
