| Weight | 0.00000 kg |
|---|---|
| Dimensions | 8.89 x 3.81 x 15.24mm |
| Coil Voltage | 5V, 12V |
| Contact Form | 2A |
| Contact Rating | 10W |
| Dielectric Strength | 200VDC |
| Diode Option | Diode, No Diode |
| Series / Model | |
| Shielding | Magnetic Shield (External) |
| Switching Voltage | 200V |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

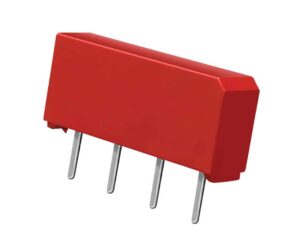

The 9092 miniature moulded SIP reed relay series from Coto features available coil voltage options of 5VDC and 12VDC with a switching voltage of 200V, switching current of 0.5A, optional coil suppression diode which protects coil drive circuits and optional external magnetic shielding which reduces interaction. The 9092 series allows for incorporation of 2 Form A switches with high speed switching and high reliability. They have hermetically sealed contacts long life and with a moulded thermoset body on integral lead frame design, the 9092 series relays are ideally suited to the needs of ATE applications and other high reliability test, measurement and telecommunications applications where high board density and long life are key requirements.
Coto is a worldwide market leader of small signal-switching products sold into the Automatic Test Equipment, Data Acquisition, Instrumentation, Process Control, Telecommunications, Medical and Security markets. Coto specialises in the manufacture of relay, switch and sensor products. Coto are the pioneers of the RedRock® analog and digital TMR magnetic sensors, offering the lowest power consumption, highest sensitivity, ultra-miniature package size, short lead times and a highly-competitive price. Please visit https://cotorelay.com/ for more information.
