| Weight | 0.00000 kg |
|---|---|
| Dimensions | 4.95 x 4.95 x 10.16mm |
| Coil Voltage | 5V |
| Contact Form | 1C |
| Contact Rating | 3W |
| Dielectric Strength | 200VDC |
| Series / Model | |
| Switching Voltage | 30V |

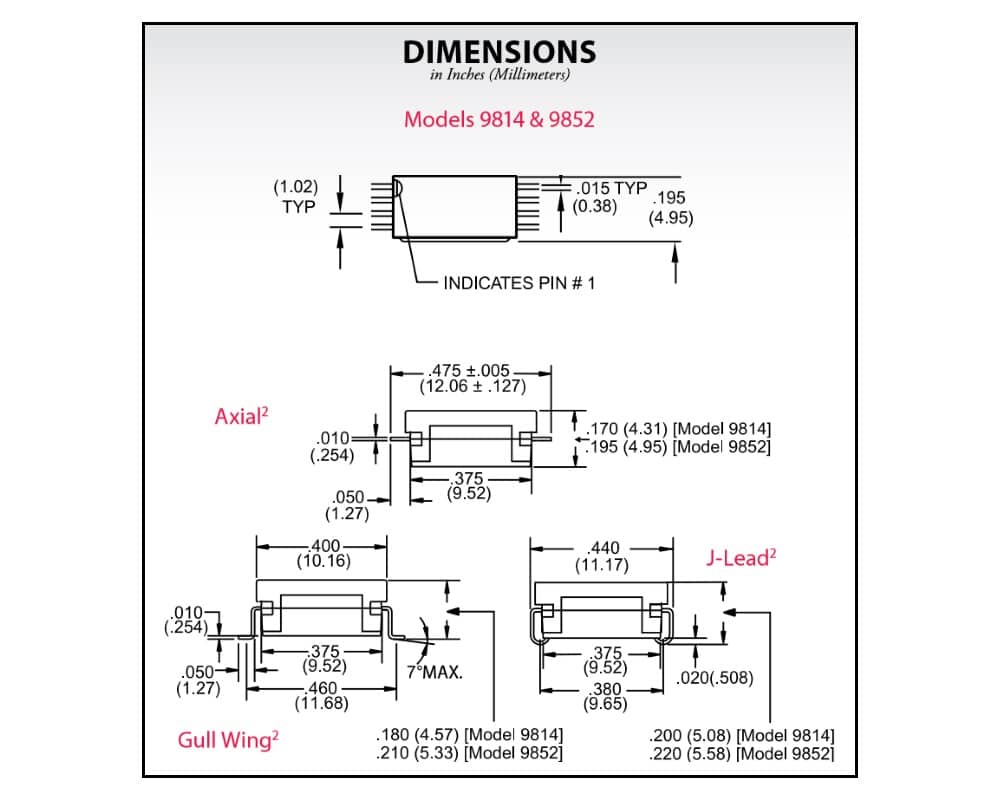

| Termination / Connection | Axial, Gull Wing, J-Lead |
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

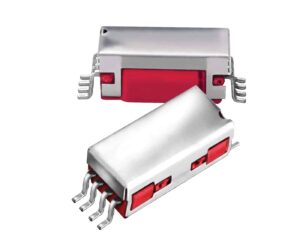

The 9852 surface-mount reed relay series from Coto features available coil voltage of 5VDC with a switching voltage of 30V and switching current of 0.1A. The 9852 is a miniature surface-mount reed relay that combines small size with exceptional 6.5 GHz bandwidth for RF performance and pulse switching also the external magnetic shield reduces interaction between parts in high density boards. Available in axial, gull wing and J lead configurations, coaxial shield for 50Ω impedance, hermetically sealed contacts for long life and high reliability. The 9852 series relaysare ideally suited to the needs of high speed, high pin count VLSI testers where high speed, small size and high performance are all needed.
Typical Applications include:
For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.
Coto is a worldwide market leader of small signal-switching products sold into the Automatic Test Equipment, Data Acquisition, Instrumentation, Process Control, Telecommunications, Medical and Security markets. Coto specialises in the manufacture of relay, switch and sensor products. Coto are the pioneers of the RedRock® analog and digital TMR magnetic sensors, offering the lowest power consumption, highest sensitivity, ultra-miniature package size, short lead times and a highly-competitive price. Please visit https://cotorelay.com/ for more information.
