Current Sensing Precision Shunt Resistor

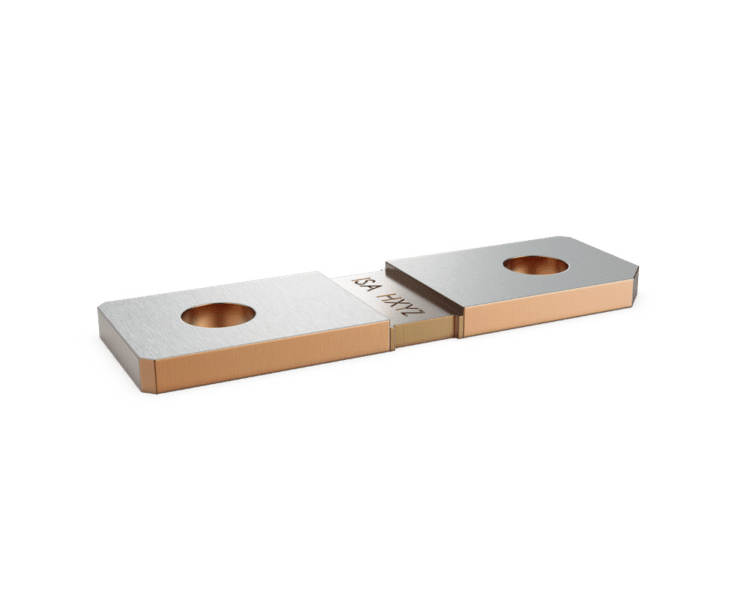

The BAL current sensing precision shunt resistor series from Isabellenhütte, designed for battery management systems. This shunt resistor offers a low resistance value  of 0.1mΩ/0.0001Ω. The BAL series is available with tinned or untinned terminals and a continuous load up to 350A.

• Precision Shunt resistor
• Resistance value of 0.1mΩ
• Tolerance of ±5%
• TCR of 20 ± 40 ppm/℃
• Up to 12W permanent power
• Continuous current load up to 350 A
• AEC-Q200 qualification
• Temperature range from -40°C to +170°C
• Available with tinned (-Sn) or untinned terminals

_{Further details can be found on the datasheet provided}

Typical applications for the BAL current sensing precision shunt resistor series include:

• Current sensor for EBM (Electronic Battery Management) in motorcars, trucks, forklifts, hybrid and electric vehicles
• Current sensing in bus bars

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.
