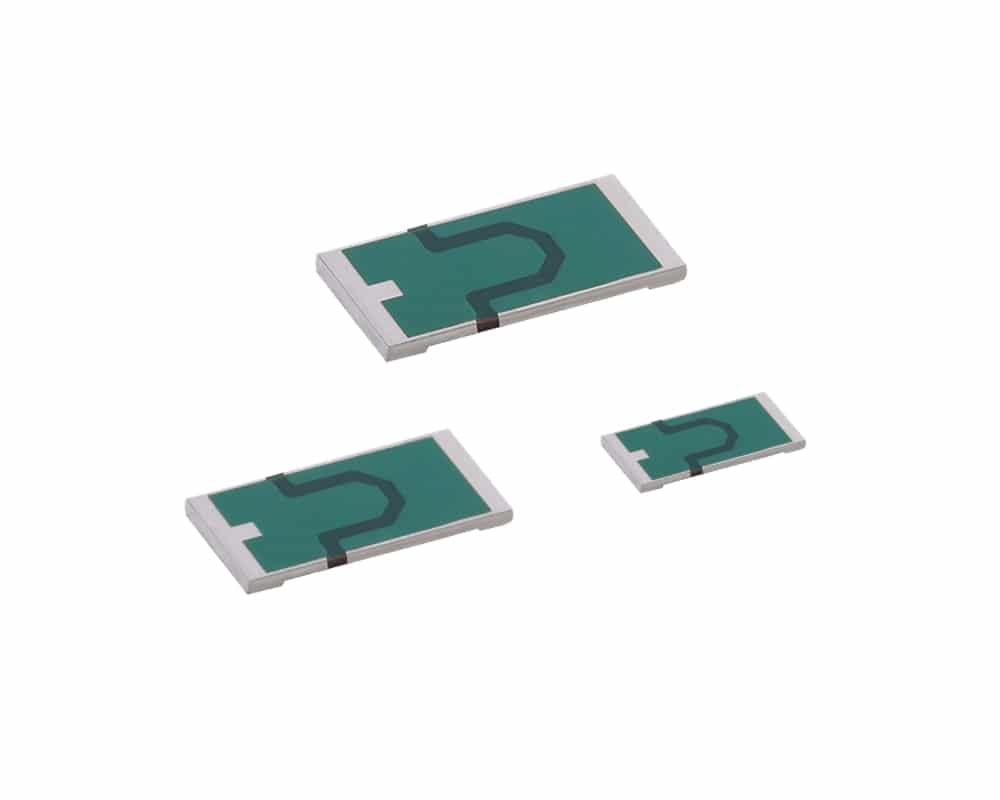

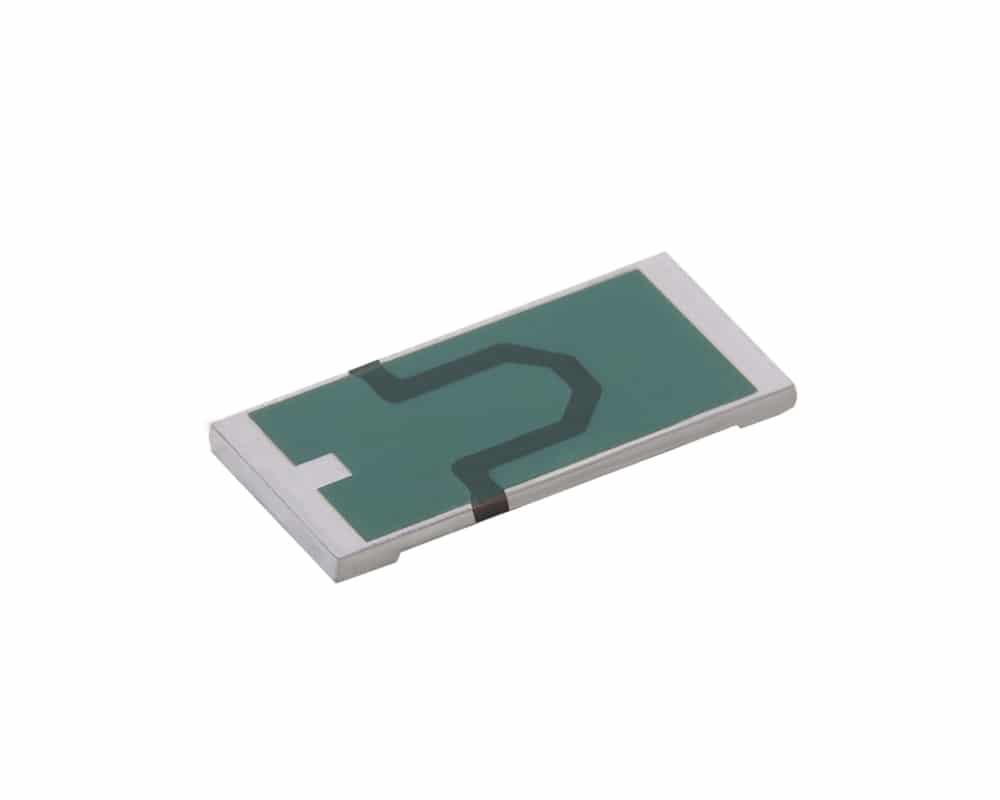

Isabellenhütte CMK Series

  • Isabellenhütte

Product Features

  • Current sensing resistor
  • Resistance range from 0.01Ω to 0.1Ω
  • Tolerances of ±1% and ±5%
  • TCR of <50 ppm/°C
  • Power rating 1W (at +70°C)
  • Temperature range from -65°C to +170°C
  • Automotive

Applications

  • Automotive
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

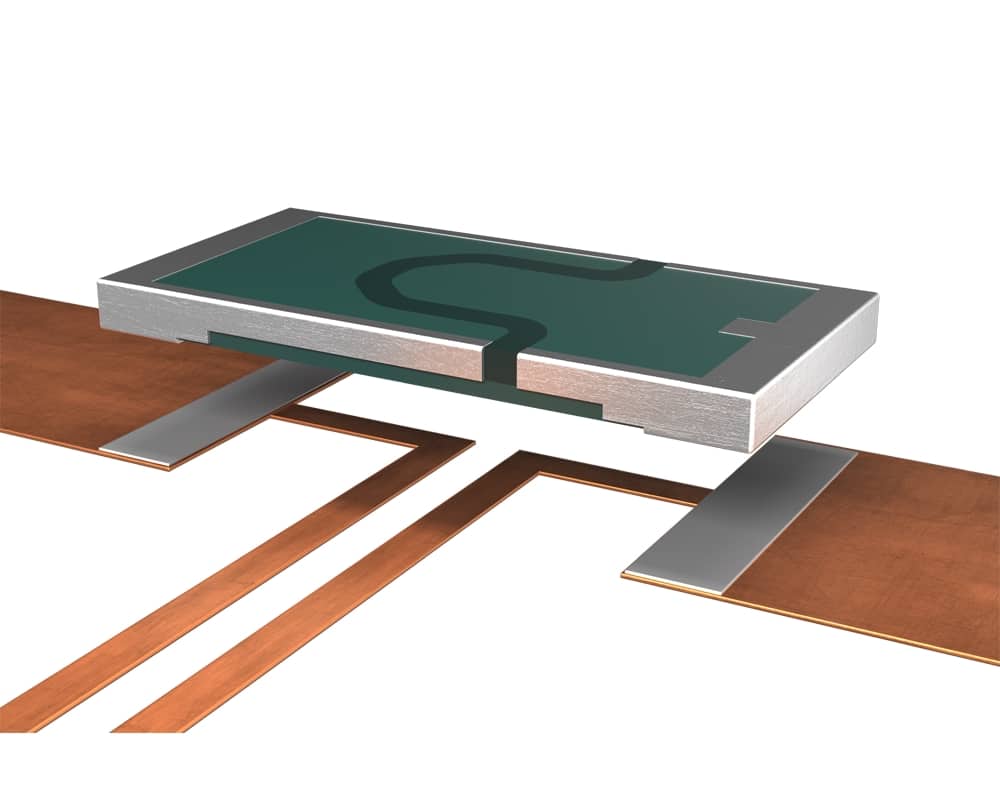

The CMK current sensing precision resistor series from Isabellenhütte has been developed to offer an outstanding price-performance ratio. With a resistance range of 0.01Ω to 0.1Ω, other specifications include a temperature coefficient of below 50ppm/°C (between +20°C and +60°C) over the entire ohmic range, tolerance options as low as ±1% as well as excellent long term stability. The CMK series offers these capabilities in a 1206 chip size.

  • Current sensing precision resistor
  • Surface-mount 1206 chip size
  • Resistance range from 0.01Ω to 0.1Ω
  • Tolerances of ±1% and ±5%
  • TCR of <50 ppm/°C (+20°C to +60°C)
  • Power rating of 1W (at +70°C)
  • Constant current up to 10A (0.01Ω resistor)
  • Temperature range -65°C to +170°C
  • Inductance of <3nH
  • Stability of <1% (TK=130°C) (at rated power, deviation after 2000h)
  • AEC-Q200 qualified



Typical applications for the CMK current sensing precision resistor series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Power modules
  • Frequency converters
  • Switch-mode power supplies
  • Driver for LED light systems



Isabellenhütte CMK Series Specification Table

AttributesValue
Resistance value10mΩ to 100mΩ
Tolerance±1% / ±5%
TCR<±50 ppm/°C (20-60°C)
Temperature range-65°C to +170°C
Power rating (P70°C)1W
Power rating (P130°C)0.5W
Internal heat resistance<80°C/W (Rthi)
Dielectric withstanding voltage200V AC/DC
Inductance<3nH
Stability (deviation after 2000hrs)<10% (Tᴋ = 130°C)
Tᴋ = Terminal Temperature



Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

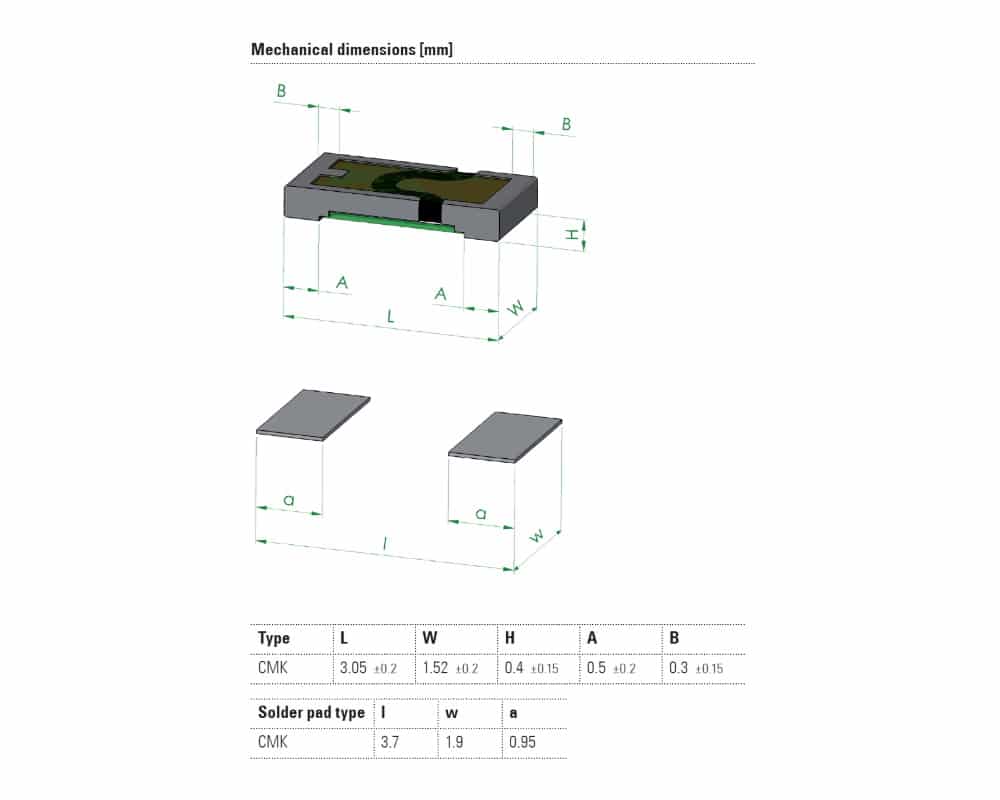

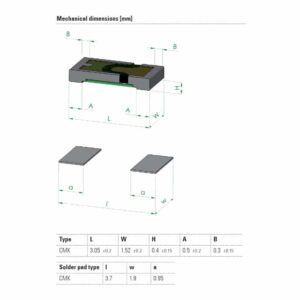

Dimensions 3.05 × 1.52 × 0.4 mm
Product Type

Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

,

Power Rating

,

Resistance Value

, , , , , , , ,

Current Rating

Package / Size

,

Temperature Range (°C)

Isabellenhütte CMK Series Ordering Info

The CMK resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the CMK resistor series:

CMK Series Ordering Info

Isabellenhütte CMK Series – Available Resistance Values and Tolerances


Resistance Value Part Number Value 1% Tolerance 5% Tolerance Values & Tolerances on Request
0.01Ω R010
0.012Ω R012
0.015Ω R015
0.02Ω R020
0.022Ω R022
0.025Ω R025
0.027Ω R027
0.03Ω R030
0.033Ω R033
0.036Ω R036
0.039Ω R039
0.043Ω R043
0.047Ω R047
0.05Ω R050
0.056Ω R056
0.062Ω R062
0.068Ω R068
0.075Ω R075
0.082Ω R082
0.091Ω R091
0.1Ω R100
