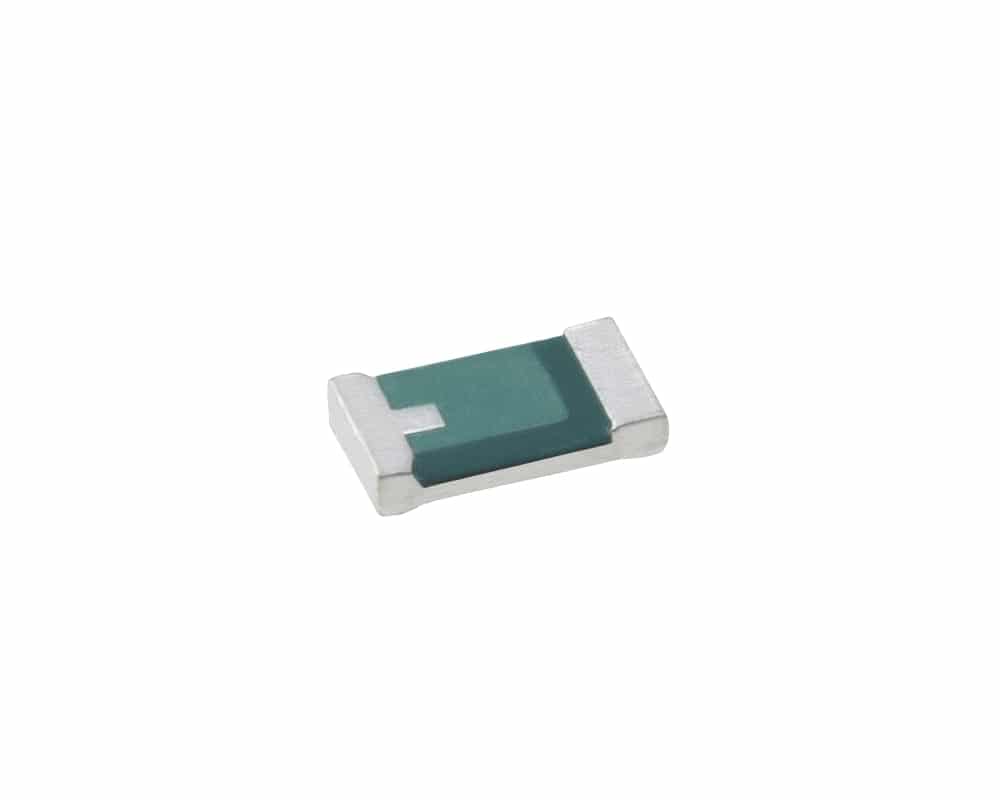

Zero Ohm Jumper

Isabellenhütte VMI-R000 Series

  • Zero ohm jumper / Power bridge
  • Surface-mount design in a 0805 chip size
  • Resistance value of <200µΩ
  • TCR of 3200 ±500 ppm/°C
  • Constant current of up to 35A DC
  • Power rating of 0.25W (at +170°C)
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Compliant

Specifications

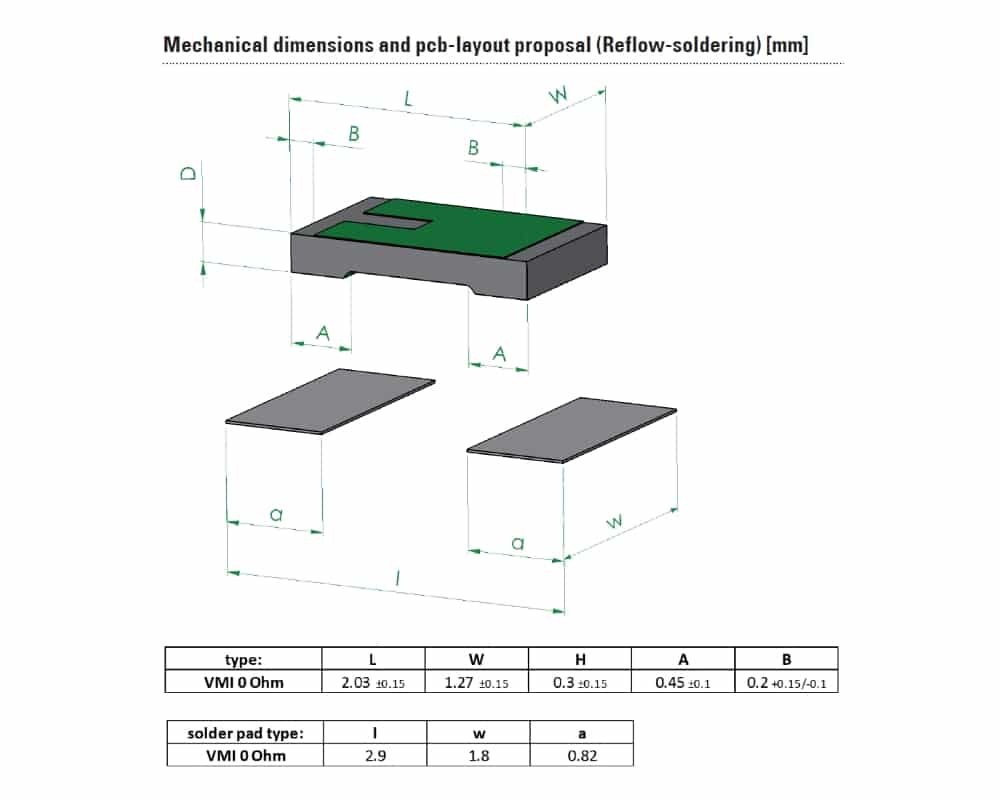

Dimensions 0.30 x 1.27 x 2.03mm
Product Type

Mounting / Size

,

Temperature Coefficient

Current Rating

Power Rating

Temperature Range

-65 to +170°C
Series / Model

Packaging

Blister Tape, Paper Tape
Download Datasheet

Zero Ohm Jumper

Isabellenhütte VMI-R000 Series

  • Zero ohm jumper / Power bridge
  • Surface-mount design in a 0805 chip size
  • Resistance value of <200µΩ
  • TCR of 3200 ±500 ppm/°C
  • Constant current of up to 35A DC
  • Power rating of 0.25W (at +170°C)
  • Temperature range from -65°C to +170°C
  • Isabellenhütte
  • Compliant
Download Datasheet

Request a Quote

Sample Request
Email Datasheet

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Talk to our engineering team

Get help specifying or customising the right product for your application.

By email

Related Current Sensing & Low Resistance Resistors items

Isabellenhütte VMI Series
Isabellenhütte VMK Series
Isabellenhütte VMK-NA Series
Isabellenhütte VMP Series

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

See what's possible

Related Isabellenhütte VMI-R000 Series Components

Isabellenhütte VMI Series

Current Sensing Precision Resistor
  • Current sensing precision resistor
  • Long sided terminal surface-mount 0805 chip size
  • Resistance range from 0.01Ω to 0.05Ω
  • Tolerance of ±5%
  • TCR from <±30 ppm/°C
  • Power rating up to 0.5W (at +100°C)
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

Isabellenhütte VMK-NA Series

Current Sensing Precision Resistor
  • Current sensing precision resistor
  • Gold plated 2-terminal surface-mount 1206 chip size
  • Resistance value of 0.1Ω
  • Tolerance of ±1%
  • TCR value <±20 ppm/°C
  • Power rating of 1.5W (at 80°C)
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

Isabellenhütte VMP Series

Current Sensing Precision Resistor
  • Current sensing precision resistor
  • 2-terminal surface-mount 2010 chip size
  • Resistance range from 0.005Ω to 1Ω
  • Tolerances of ±1% or ±5%
  • TCR value of <±20 ppm/°C
  • Power rating 3W (at +70°C)
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

Isabellenhütte VMS Series

Current Sensing Precision Resistor
  • Current sensing precision resistor
  • 2-terminal surface-mount 2512 chip size
  • Resistance range from 0.005Ω to 1Ω
  • Tolerance range from ±1% to ±5%
  • TCR of <±20 ppm/°C
  • Power rating 4W (at +70°C)
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

Isabellenhütte VMP-NA Series

Current Sensing Precision Resistor
  • Current sensing precision resistor
  • Gold plated 2-terminal surface-mount design in a 2010 chip size
  • Resistance values of 0.025Ω and 0.08Ω
  • Tolerances of ±1% or ±5%
  • TCR value of <±20 ppm/°C
  • Power rating of 2W (at +90°C)
  • Temperature range from -55°C to +170°
View Product
Download Datasheet

Isabellenhütte VMK Series

Current Sensing Precision Resistor
  • Current sensing precision resistor
  • 2-terminal surface-mount design in a 1206 chip size
  • Resistance range from 0.01Ω to 0.47Ω
  • Tolerance range from ±1% to ±5%
  • TCR of <±20 ppm/°C
  • Power rating up to 1.5W
  • Temperature range from -65°C to +170°C
View Product
Download Datasheet

The VMI-R000 zero Ohm jumper / power bridge series from Isabellenhütte offers a surface-mount resistor with a constant current up to 35A DC. Developed with a small chip size of 0805, a resistance value of <200µΩ, and a 0.25W power rating at +170°C. The VMI-R000 series from Isabellenhütte offers a high pulse power rating and inductance rating of <1nH.

  • Zero ohm jumper / Power bridge
  • Surface-mount design in a 0805 chip size
  • Resistance value of <200µΩ
  • Power rating of 0.25W (at +170°C)
  • Constant current of up to 35A DC
  • Temperature range from -65°C to +170°C
  • Inductance of <1nH
  • Available in blister (U) or paper (G) tape



Typical applications for the VMI-R000 zero Ohm jumper / power bridge series include:

  • Jumper / Power bridge
  • Multiple usages of a PCB layout

Isabellenhütte VMI-R000-U Series Specification Table

AttributesValue
Resistance value<0.2mΩ
TCR3200 ±500ppm/°C (20-60°C)
Temperature range-65°C to +170°C
Power rating0.25W
Inductance<1nH
DC-current35A

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.
