| Weight | 0.00000 kg |
|---|---|
| Dimensions | 1.50 x 6.00 x 7.50mm |
| Maximum Resistance | 0.1Ω |
| Minimum Resistance | 0.01Ω |
| Power Rating | |
| Product Type | |
| Resistance Value | |
| Series / Model | |
| Temperature Coefficient | |
| Temperature Range | -65 to +155°C |
| Termination / Connection | 4-Terminal, Flip Chip |
| Tolerance |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

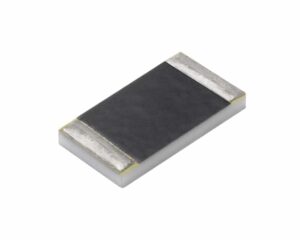

The RBH ultra-precision current sense resistor series from Alpha Electronics offers low resistances of between 0.01Ω and 1Ω all in a small 4-terminal (Kelvin connection) flip-chip package. By utilising Alpha’s Bulk Metal® foil resistor technology, they are able to offer low tolerances down to ±0.5% as well as a low TCR of ±10 ppm/°C between -25°C and +125°C.
The RBH ultra-precision current sense resistor series offer ultra-precision thanks to Alpha’s Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.
Temperature rise of resistor surface can be optimised by using a board made of metal. This keeps the temperature rise very low allowing increased power rating of the parts i.e. 2W at +70°C. Please keep the temperature of board less than +90°C when using glazed epoxy board.
The below table gives the full specifications for each resistor model available including the Alpha RBH series:
