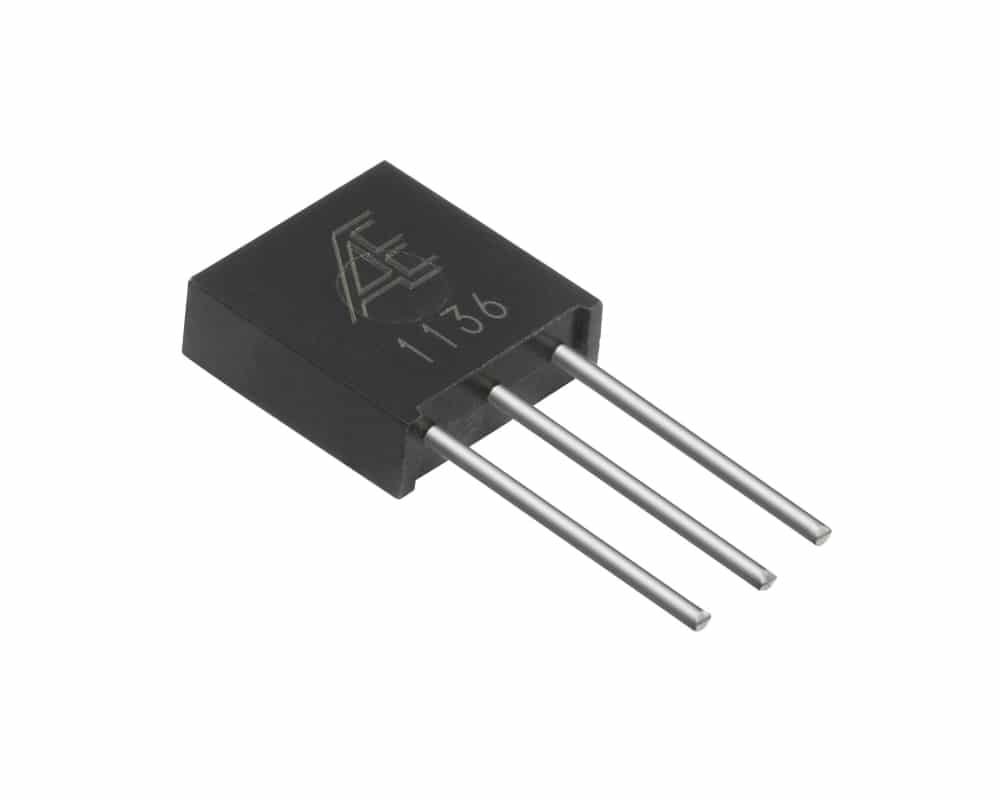

Alpha SM Series

  • Compliant
  • Alpha Electronics

Product Features

  • Ultra precision, 2 element resistor network
  • Resistance range 50Ω and 30kΩ
  • Tolerance from ±0.05% to ±0.1% available
  • TCR of ±2.5 ppm/°C or ±5 ppm/°C
  • Power rating of 0.3W (at +125°C)
  • Temperature range from -65°C to +150°C

Applications

  • Test and Measurement

Description

The SM transfer moulded ultra-precision resistor 1-2-3 network series from Alpha Electronics offers a 3 terminal, 2 element resistor network in a small through-hole package. Each resistive element can range from 10Ω up to 30kΩ all with tight tolerances down to +0.02% absolute and +0.01% matching (50Ω to 30kΩ). By utilising Alpha’s Bulk Metal® foil resistor technology, they are able to produce this resistor network series with low temperature coefficients (both absolute and tracking) as well as excellent long-term stability. The Alpha SM series offers three pins with a standard pin pitch of 2.54 ±0.25mm.

  • 2 element resistor network
  • Each resistor element is available in any resistance between 50Ω and 30kΩ
  • Through-hole transfer moulded 3 pin package
  • Tight absolute tolerance of ±0.02% for resistances between 100Ω and 30kΩ with an even tighter matching tolerance of ±0.01% over the same resistance range available
  • Tight absolute TCR of ±2.5 ppm/°C (from -55°C up to +125°C)
  • Tight tracking TCR available of between ±0.5 ppm/°C and ±3 ppm/°C depending on resistance ratio between the two elements
  • Power rating of 0.3W per resistor package (at +125°C)
  • Maximum rated operating temperature +125°C
  • Temperature range from -65°C up to +150°C



The SM through-hole, ultra-precision resistor 1-2-3 network series exhibits excellent high frequency characteristics thanks to Alpha’s Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.

Alpha’s SM resistor network series are ideal for use in input and feedback resistors for amplifiers due to both the input and feedback resistors being incorporated into the same package, therefore amplification is not affected by temperature change.

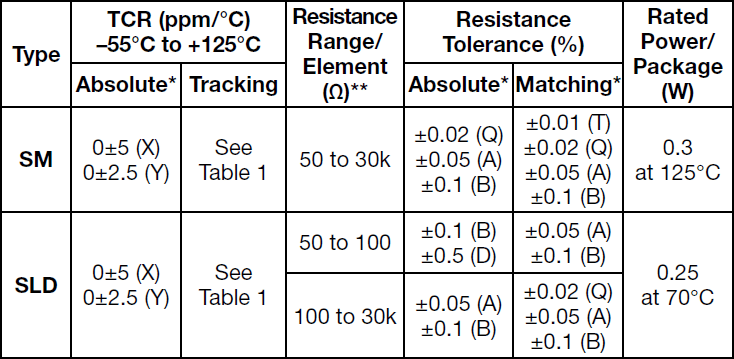

The below table gives the full specifications for each resistor model available including the Alpha SM series:

Alpha SM Specifications
* Symbols parenthesized are for part number composition
** Please contact us for resistance availability

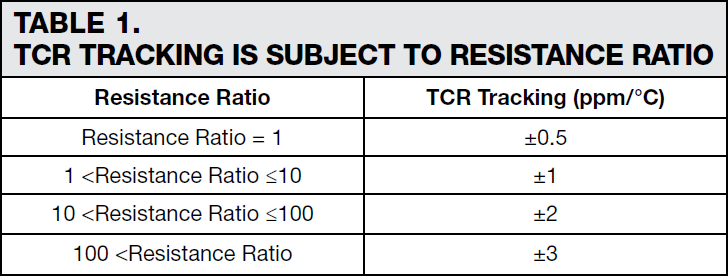

TCR is from -25°C to +125°C for SLD Type



Table 1

Specifications

Weight 0.00000 kg

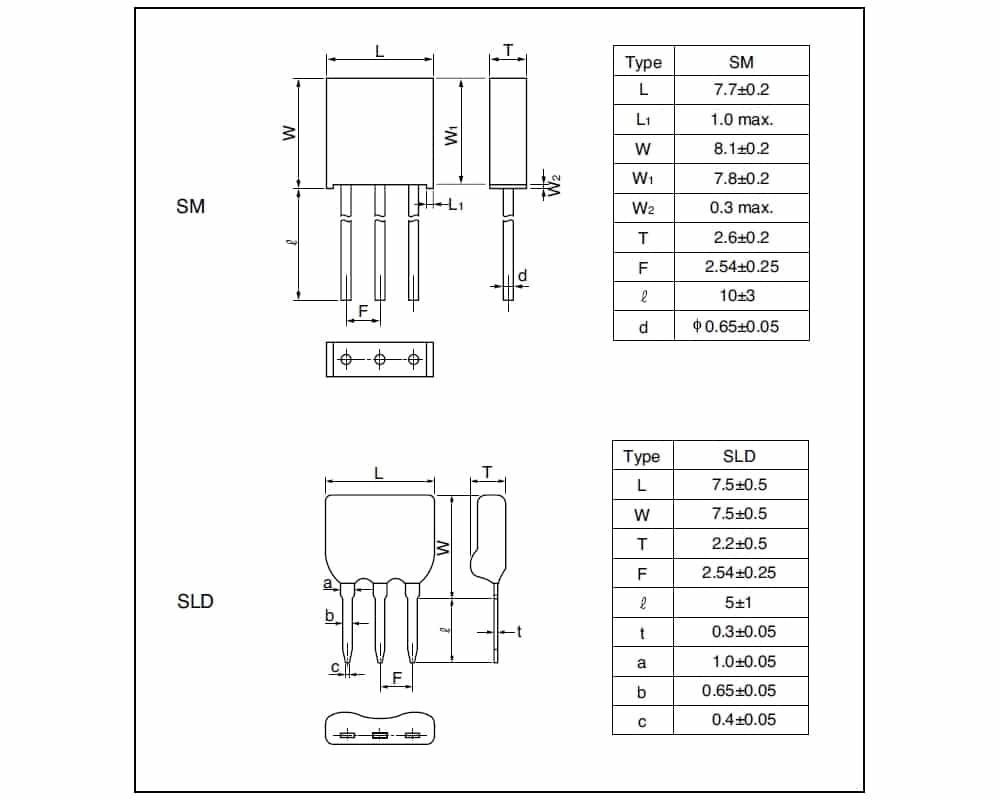

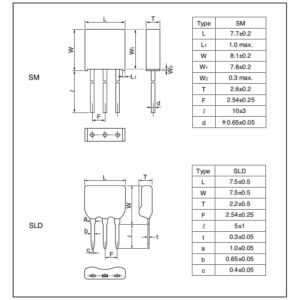

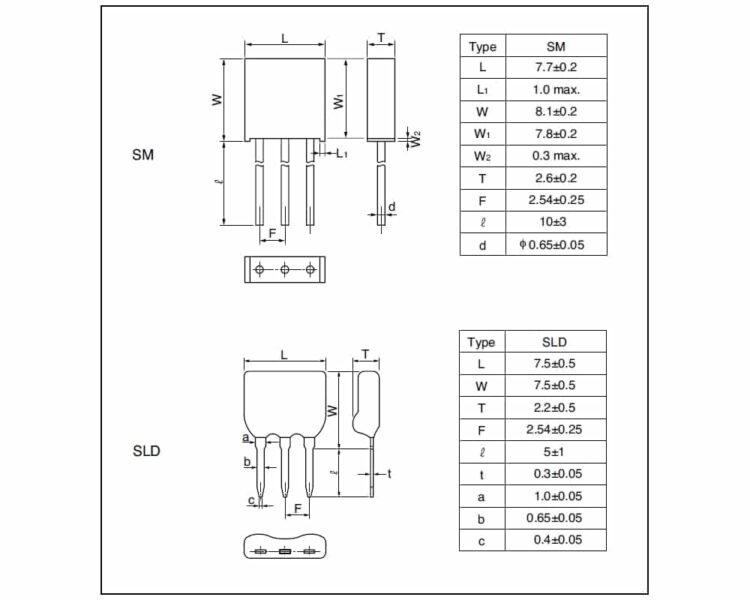

Dimensions 7.70 × 2.60 × 8.10 mm
Product Type

, ,

Series / Model

Minimum Resistance

Maximum Resistance

Temperature Coefficient

,

Power Rating

Tolerance

, ,

Package / Size

, ,

Temperature Range (°C)

Alpha SM Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Alpha Resistor Videos

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Resistor Stability Put to the Test (Demo Video)

In this video, our host Richard Zuratt puts the stability of the three major resistor technologies — foil, thin, and thick film — to the test. Each resistor type is subjected to an overload pulse and its change in resistance value is recorded. Due to the homogeneous nature of the VPG Bulk Metal® Foil resistor, it is the only of the three to experience no change from the high power pulse. This demonstrated performance makes foil resistors the technology of choice for critical applications where long-term stability and survivability are paramount.

Place holder video for YouTube video Advantages of Using Bulk Metal® Foil Resistors in High-Humidity Environments

All resistors that are based on nichrome, which is a category that includes both thin film devices and Bulk Metal Foil resistors, are susceptible to electro-chemical corrosion or etching when placed in a high humidity environment and powered with a very low wattage. But since the nichrome element of a Bulk Metal Foil resistor is hundreds of times thicker than the element in a thin film device with the same value, it will last much longer under these conditions. This video shows the actual etching process and survival times for thin film and foil nichrome resistive elements as they are tested in 100% humidity conditions.

Place holder video for YouTube video Comparison Testing of Chip Resistor Technologies Under High Vibration

Surface-mount resistors suffer physical stresses when exposed to high vibration or thermally unstable environments. Failure modes commonly occur in welds, solder joints, connectors, and terminations, ultimately resulting in circuit failure. In this demonstration, vibration-table-mounted boards are subjected to ±2° deflection 25 times per second and monitored for any ΔR > 0.1%. All the chip resistors failed in 2 to 12 minutes (8K to 16K cycles). But the Alpha MPP molded Bulk Metal® Z-Foil resistor with flexible terminations experienced over a million cycles with no change in resistance.

VIDEOS
Place holder video for YouTube video
Resistor Stability Put to the Test (Demo Video

In this video, our host Richard Zuratt puts the stability of the three major resistor technologies — foil, thin, and thick film — to the test. Each resistor type is subjected to an overload pulse and its change in resistance value is recorded. Due to the homogeneous nature of the VPG Bulk Metal® Foil resistor, it is the only of the three to experience no change from the high power pulse. This demonstrated performance makes foil resistors the technology of choice for critical applications where long-term stability and survivability are paramount.

Place holder video for YouTube video
Advantages of Using Bulk Metal® Foil Resistors in High-Humidity Environments

All resistors that are based on nichrome, which is a category that includes both thin film devices and Bulk Metal Foil resistors, are susceptible to electro-chemical corrosion or etching when placed in a high humidity environment and powered with a very low wattage. But since the nichrome element of a Bulk Metal Foil resistor is hundreds of times thicker than the element in a thin film device with the same value, it will last much longer under these conditions. This video shows the actual etching process and survival times for thin film and foil nichrome resistive elements as they are tested in 100% humidity conditions.

Place holder video for YouTube video

Surface-mount resistors suffer physical stresses when exposed to high vibration or thermally unstable environments. Failure modes commonly occur in welds, solder joints, connectors, and terminations, ultimately resulting in circuit failure. In this demonstration, vibration-table-mounted boards are subjected to ±2° deflection 25 times per second and monitored for any ΔR > 0.1%. All the chip resistors failed in 2 to 12 minutes (8K to 16K cycles). But the Alpha MPP molded Bulk Metal® Z-Foil resistor with flexible terminations experienced over a million cycles with no change in resistance.
