  • Caddock

Product Features

  • Ultra-precision through-hole high voltage divider
  • 6 standard models of the HVD series
  • Monolithic voltage dividers built with ceramic sandwich construction
  • Ratios (RT:R2) of 100:1 or 1,000:1
  • Ideal for high performance voltage division applications in medical equipment, laboratory equipment and analytical instruments
  • Over voltage of 1.5 times rated voltage for 5s

Applications

  • Scientific Instrumentation
  • Exempt

Description

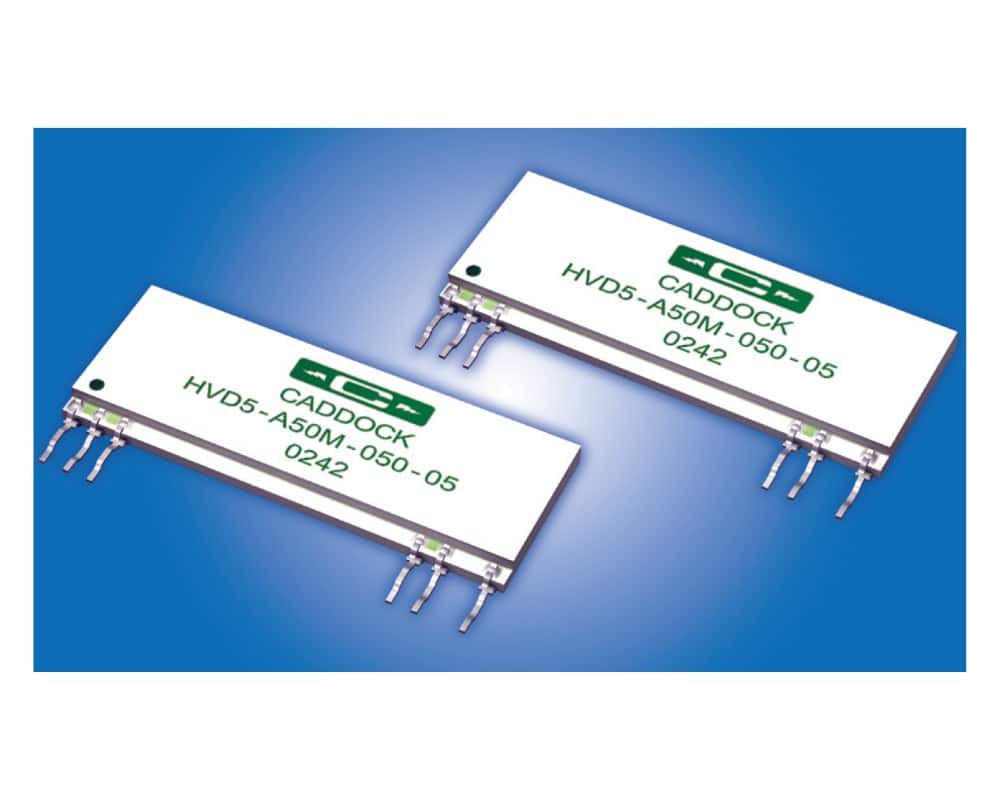

The HVD ultra-precision high voltage divider series from Caddock offers ultra-precision performance in the range of 1.5kVDC to 5kVDC, with a ratio tolerance of ±0.05% and ratio TCR of ±5 ppm/°C. The HVD series offers RT values of between 10MΩ and 50MΩ as well as ratios (RT:R2) of 100:1 and 1,000:1. They are monolithic voltage dividers built with ceramic sandwich construction.

  • Through-hole ultra-precision voltage divider
  • 6 standard models of the HVD series
  • Ratios (RT:R2) of 100:1 and 1000:1
  • Total resistance values (R1+R2) from 10MΩ to 50MΩ
  • Monolithic voltage dividers built with ceramic sandwich construction
  • Continuous operating voltage from 1.5kVDC up to 5kVDC
  • Over-voltage of 1.5 times rated voltage for 5s
  • Absolute tolerance of ±0.1% with ratio tolerance (RT:R2) of ±0.05%
  • Absolute TCR of ±30 ppm/°C with ratio TCR (RT:R2) of ±5 ppm/°C
  • Temperature range from -40°C up to +85°C



These Caddock HVD dividers are ideal for high performance voltage division applications in medical equipment, laboratory equipment, analytical instruments.

Customisations are available upon request for high quantity applications (greater than 1000 per year). Customisations include custom voltage division ratios and ratio specifications that optimise the performance and cost for your application.



The below table gives the available specifications and parts available for the complete HVD series:

Caddock HVD Specifications



Specifications

Weight 0.00000 kg

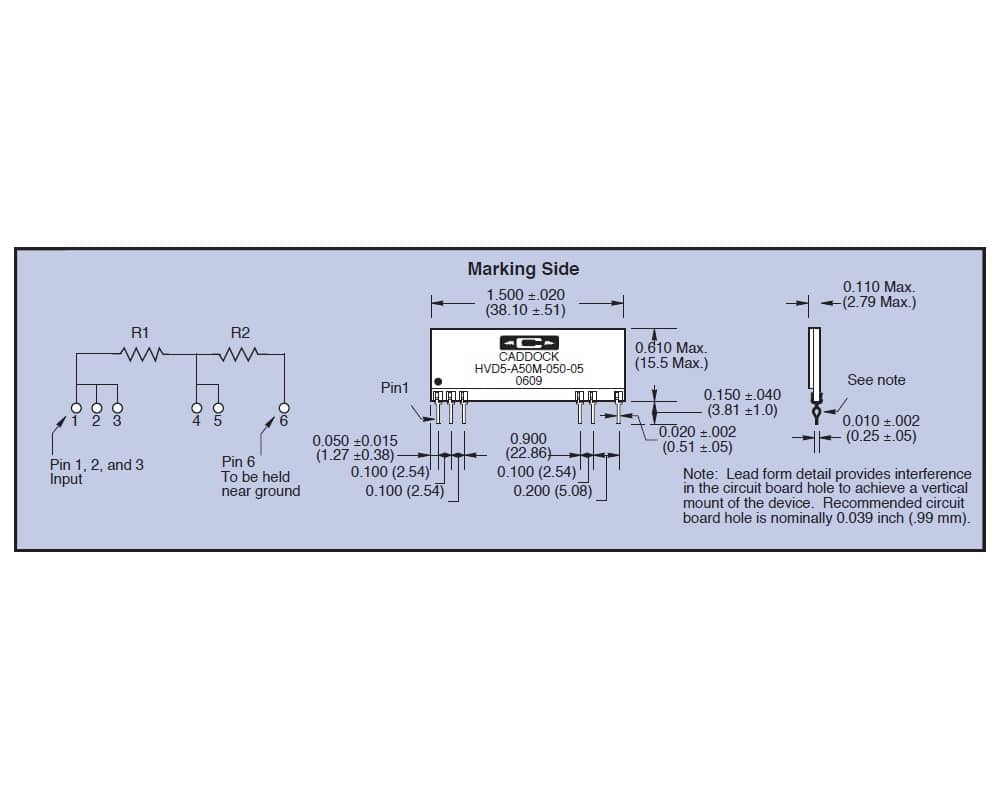

Dimensions 38.10 × 3.94 × 12.70 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

Additional Features

Ultra-precision through-hole high voltage divider6 standard models of the HVD seriesMonolithic voltage dividers built with ceramic sandwich constructionRatios (RT:R2) of 100:1 or 1,000:1Ideal for hig

Tolerance

Voltage Rating

, ,
