Caddock T1794 Series

Caddock T1794 Series
  • Caddock

Product Features

  • Custom through-hole low TCR precision SIP resistor networks
  • Ratio-of-ratios as required down to as close to 0.025%
  • Unique thin-profile, single-in-line edge-mounted package
  • Utilises Caddock’s Tetrinox® resistance technology

Applications

  • Exempt

Description

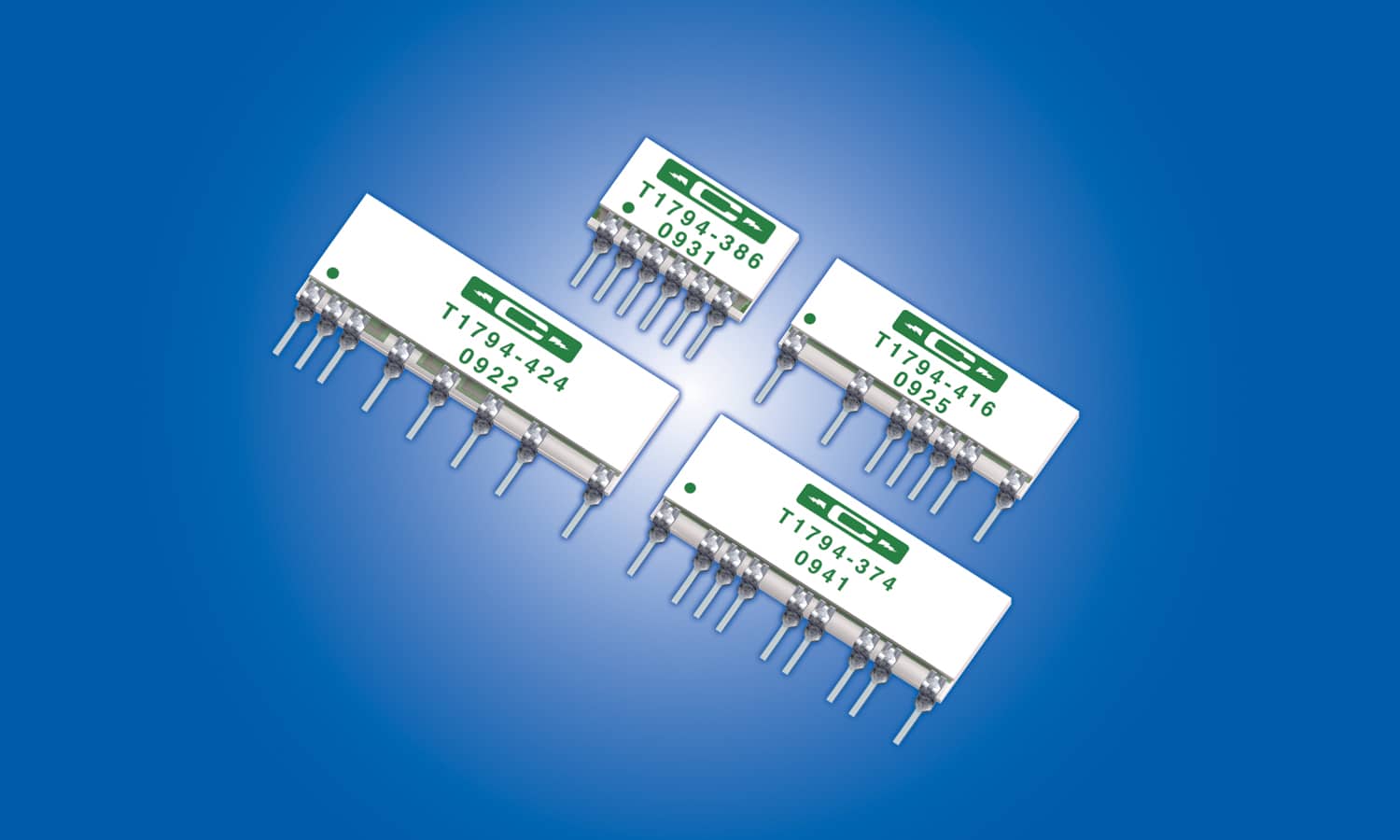

The T1794 series from Caddock are custom low temperature coefficient precision SIP resistor networks, with a resistance range from 500Ω to 50MΩ. These resistors have an absolute tolerance range of between ±0.025% and ±1.0% and a ratio tolerance of between ±0.01% and ±1.0%. The absolute TCR (from -40°C to +85°C) values are: ±15 ppm/°C, ±25 ppm/°C, ±50 ppm/°C and the ratio TCR (from -40°C to +85°C) values are: ±10 ppm/°C, ±25 ppm/°C and ±50 ppm/°C. The Caddock T1794 series unique thin-profile, single-in-line edgemount package design allows the wide range of flexibility necessary to blend the performance of Tetrinox® resistance technology with particular circuit specifications to arrive at the final network package size, pin spacing and pin style.

  • Custom through-hole low TCR precision SIP resistor networks
  • Utilises Caddock’s Tetrinox® resistance technology
  • Resistance values available between 500Ω and 50MΩ
  • Absolute TCR (from -40°C to +85°C): ±15 ppm/°C, ±25 ppm/°C, ±50 ppm/°C
  • Ratio TCR (from -40°C to +85°C): ±10 ppm/°C, ±25 ppm/°C, ±50 ppm/°C
  • Absolute tolerance of: ±0.025%, ±0.05%, ±0.1%, ±0.2%, ±0.25%, ±0.5% and ±1.0%
  • Ratio tolerance of: ±0.01%, ±0.025%, ±0.05%, ±0.1%, ±0.2%, ±0.25%, ±0.5% and ±1.0%
  • Unique thin-profile, single-in-line edge-mounted package
  • Ratio-of-ratios as required down to as close to 0.025%
  • Compact footprint



Applications for the Caddock T1794 custom low TC precision SIP resistor networks include:

  • Voltage divider networks
  • Amplifier gain-setting networks
  • Differential input networks
  • Attenuator networks
  • Current-to-voltage converter sense networks



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

, ,

Tolerance

, , , , , ,
