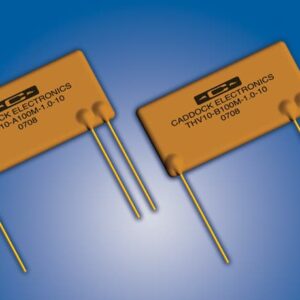

Caddock THV10 Series

  • Caddock

Product Features

  • Precision through-hole high voltage divider network
  • Total resistance of 100MΩ
  • Ratios of 100:1 or 1,000:1
  • Tighter ratio TCR and ratio tolerances than with standard high voltage divider products
  • Utilises Caddock’s Tetrinox® resistance films


The THV10 series from Caddock are precision high voltage divider networks, have a voltage rating of 10KVDC, with a total resistance of 100MΩ across the 2 resistors and a voltage division ratio of 1,000:1 or 100:1. They have a tighter ratio TCR and ratio tolerances than with standard high voltage divider product, The THV10 series introduces Caddock’s advanced high voltage resistor technology which doubles the allowable working voltage over the length of the high voltage section. This technology combines Caddock’s Tetrinox® resistance films with a patented laser generated V-Notch Geometry which optimizes the voltage gradient over the length of the resistance pattern.

  • Precision through-hole high voltage divider network
  • Resistance values available R1 = 99.9MΩ or 99MΩ to R2 = 100kΩ or 1MΩ with a total resistance of 100MΩ
  • Absolute TCR of ±30 ppm/°C (between -55°C and +125°C) and ratio TCR of ±25 ppm/°C or ±10 ppm/°C (between -55°C and +125°C)
  • Absolute tolerance of ±1.0% and ratio tolerance of ±0.25%, ±0.5% and ±1.0%
  • Maximum voltage rating of 10kVDC
  • Standard voltage division ratios of 1,000:1 or 100:1, with custom ratios available
  • Utilises Caddock’s Tetrinox® resistance technology


These specifications can provide important improvements in performance in many types of advanced electronic systems, including:

  • TWT power supplies
  • Radar systems
  • X-ray systems
  • Analytical equipment
  • High resolution CRT displays


The below table gives the specifications available for the complete THV resistor series including the THV10 model:

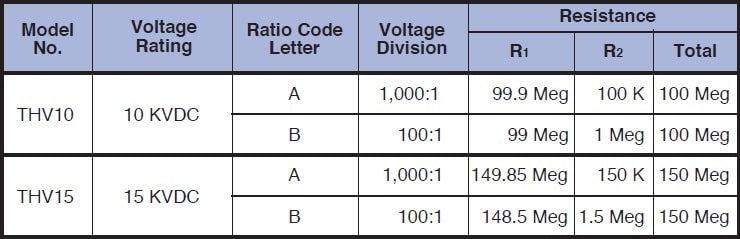

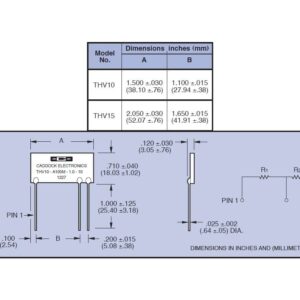

Caddock THV10 Specifications

Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.


Weight 0.00000 kg

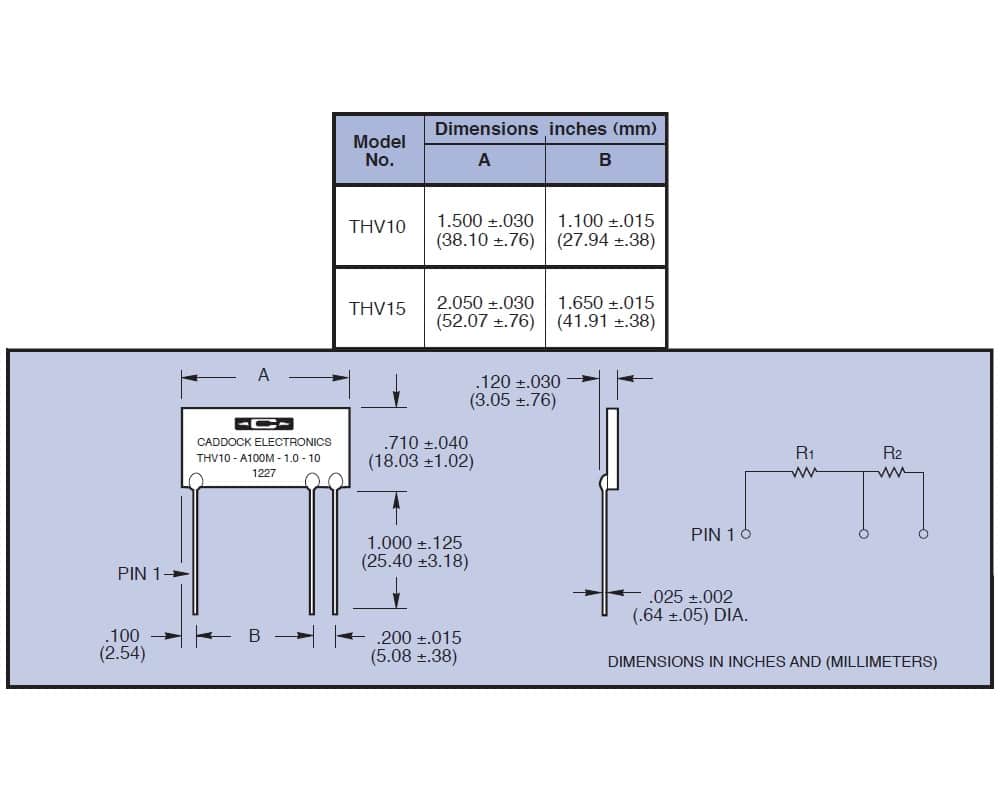

Dimensions 18.03 x 3.05 x 38.10mm
