Susumu PRG2010 Series

Susumu PRG2010 Series
Susumu PRG2010 Series
Susumu PRG2010 Series
  • Susumu

Product Features

  • Surface-mount high power thin film chip resistor
  • Temperature range of −55°C to +155°C
  • Maximum voltage of 100V
  • Thin film structure enabling low noise and anti-sulfur
  • Long sided terminals for higher power handling capability
  • AEC-Q200 Compliant
  • Automotive

Applications

  • Automotive
  • Motion Control
  • Compliant

Description

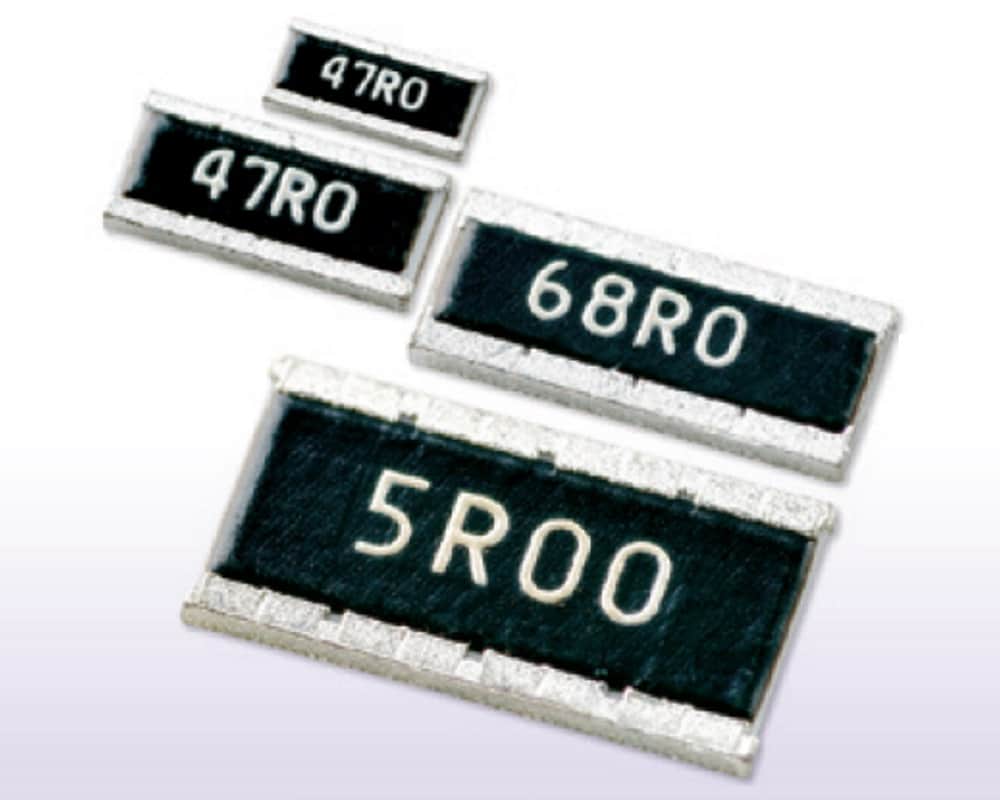

The PRG2010 high power thin film chip precision long sided terminal resistors from Susumu have a significantly higher power handling capability than conventional same size resistors. The Susumu PRG2010 series are available in a 0804 chip size, with the resistance values ranging from 2.5Ω to 25KΩ and with a power rating of 0.5W. This resistor is AEC-Q200 compliant and has a high operating temperature of +155°C which makes this range suitable for automotive applications.

  • Surface-mount high power thin film chip precision long sided terminator resistor
  • Resistance range between 2.5Ω and 25KΩ available
  • Resistance value series E-24 and E-96
  • Power rating options of 0.5W
  • Tolerance values available ±0.1% (B) and ±0.5% (D)
  • TCR values available are ±25 ppm/°C (P) and ±50 ppm°C (Q)
  • Maximum voltage of 100V
  • Temperature range of −55°C to +155°C
  • Long sided terminals for higher power handling capability
  • Thin film structure enabling low noise and anti-sulfur
  • AEC-Q200 Compliant
  • Chip size of 0804

Susumu PRG2010 series high power thin film chip resistors are ideal for the following applications:

  • Automotive
  • DC Motors and inverters
  • Robotics
  • Industrial control systems

The below table gives the full specifications of the Susumu PRG series including the PRG2010:

Susumu PRG2010 Specifications

Please see the Susumu selection guide in the Technical Libary tab for the E-24 and E-96 values


Specifications

Weight 0.00000 kg

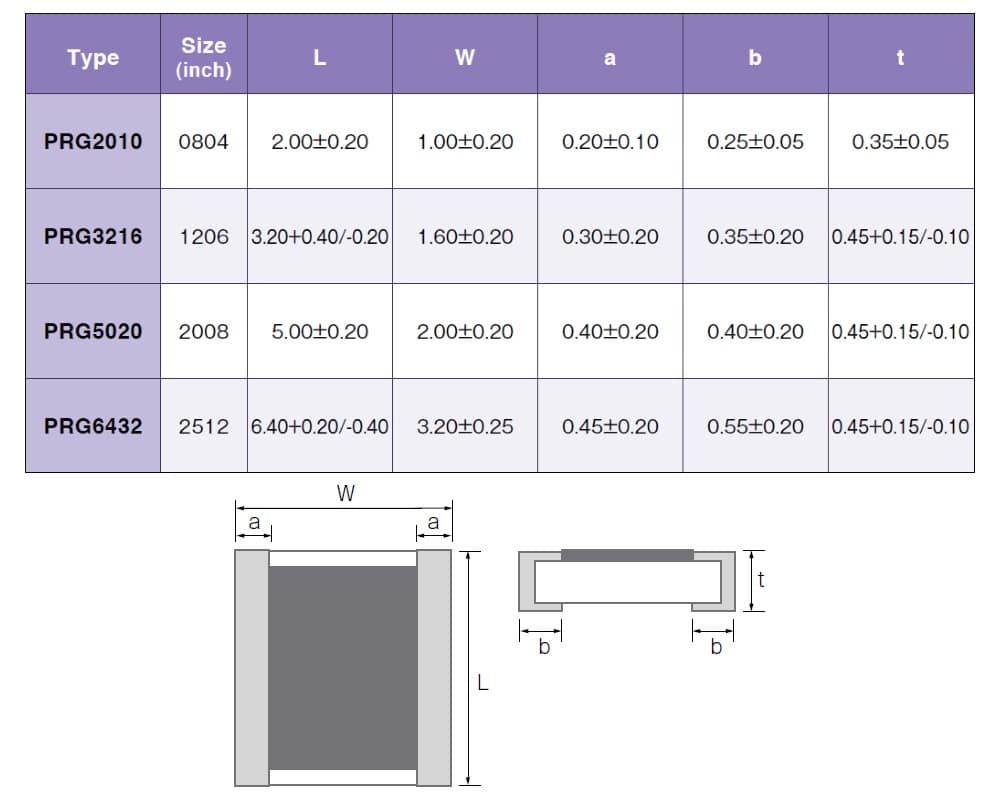

Dimensions 2.00 × 1.00 × 0.35 mm
Series / Model

Minimum Resistance

Maximum Resistance

Tolerance

,

Power Rating

Resistance Value

, ,

Temperature Coefficient

,
