Susumu PRG3216 Series

  • Susumu

Product Features

  • Surface-mount high power thin film chip resistor
  • Temperature range of −55°C to +155°C
  • Maximum voltage of 150V
  • Thin film structure enabling low noise and anti-sulfur
  • long sided terminals for higher power handling capability
  • AEC-Q200 compliant
  • Automotive

Applications

  • Motion Control
  • Compliant

Description

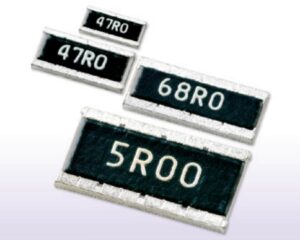

The PRG3216 high power thin film chip long sided terminal precision resistor series from Susumu have a significantly higher power handling capability than the conventional same size resistors. The Susumu PRG3216 series are available in a 1206 chip size, with resistance values ranging from 2.5Ω to 100KΩ and with a power rating of 1W. This resistor is AEC-Q200 compliant and has a high operating temperature of +155°C which makes this range suitable for automotive applications.

  • Surface-mount high power thin film chip precision resistor
  • Resistance range between 2.5Ω and 100KΩ available
  • Resistance value series E-24 and E-96
  • Power rating options of 1W
  • Tolerance values available ±0.1% (B) and ±0.5% (D)
  • TCR values available are ±25 ppm/°C (P) and ±50 ppm°C (Q)
  • Maximum voltage of 150V
  • Temperature range of −55°C to +155°C
  • Long sided terminals for higher power handling capability
  • Thin film structure enabling low noise and anti-sulfur
  • AEC-Q200 Compliant
  • Chip size of 1206

Susumu PRG3216 series high power thin film long sided terminal chip resistors are ideal for the following applications:

  • Automotive
  • DC Motors and inverters
  • Robotics
  • Industrial control systems

The below table gives the full specifications of the Susumu PRG series including the PRG3216:

Susumu PRG3216 Specifications

Please see the Susumu selection guide in the Technical Libary tab for the E-24 and E-96 values


Specifications

Weight 0.00000 kg
Dimensions 3.20 × 1.60 × 0.45 mm
Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

,

Power Rating

Additional Features

Surface-mount high power thin film chip resistorOperating temperature range of −55°C to +155°CMaximum voltage of 150VThin film structure enabling low noise and anti-sulfurlong sided terminals for

Resistance Value

, ,

Temperature Coefficient

,
