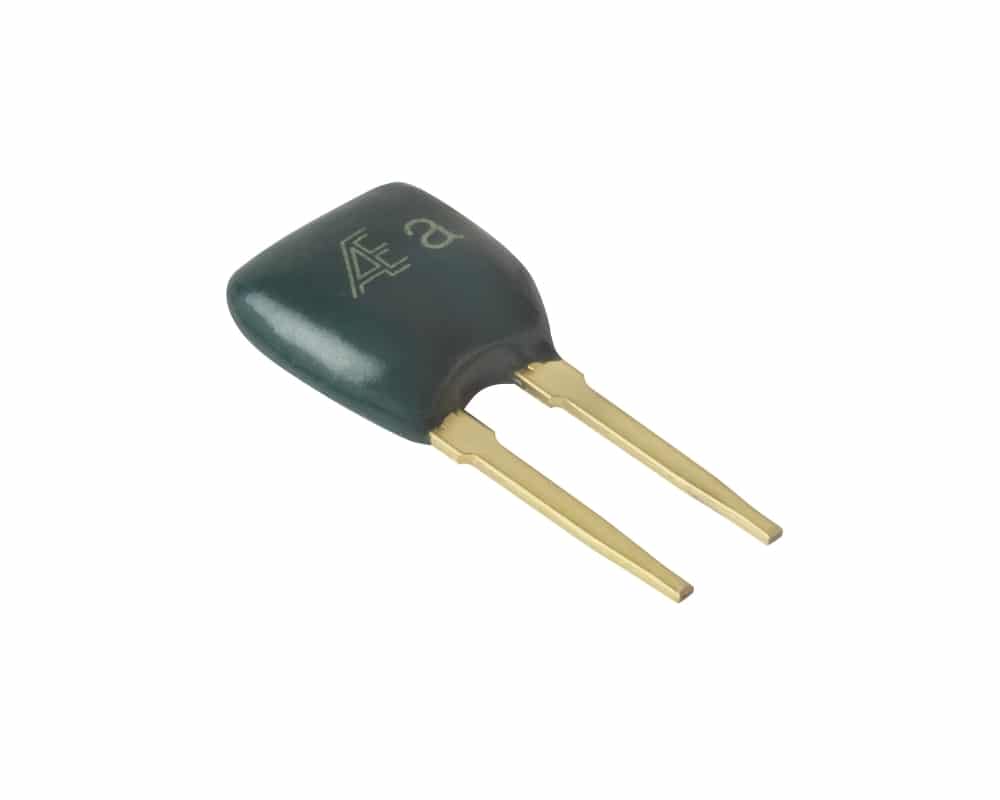

Alpha TLA Series

  • Compliant
  • Alpha Electronics

Product Features

  • Conformally coated thin film precision resistor
  • Resistance range from 100kΩ to 5MΩ
  • Tolerance from ±0.05% to ±1%
  • TCR of ±5 ppm/°C or ±10 ppm/°C
  • Power rating of 0.125W (at +70°C)
  • Temperature Range from -25°C up to +155°C

Applications

Description

The TLA conformally coated resistor series from Alpha Electronics further expands their resistor range offerings by utilising thin film resistor technology to allow for larger resistance values of up to 5MΩ. The TLA series offers a precise resistor with a resistance range from 100kΩ up to 5MΩ all in a small through-hole package with low temperature coefficients down to ±5 ppm/°C (between -25°C and +125°C) as well as tolerances down to ±0.05%.

  • Conformally coated thin film through-hole resistor
  • Available in any resistance between 100kΩ and 5MΩ
  • Tight tolerance options as low as ±0.05% available over the whole resistance range
  • Tight TCR options available as low as ±5 ppm/°C (from -25°C up to +125°C)
  • Maximum working voltage of 250V
  • Power rating of 0.125W (at +70°C)
  • Maximum rated operating temperature +70°C
  • Temperature range from -25°C up to +155°C



The Alpha Electronics TLA thin film precision resistor series has been designed with terminals that are easy for insertion into the PCB.

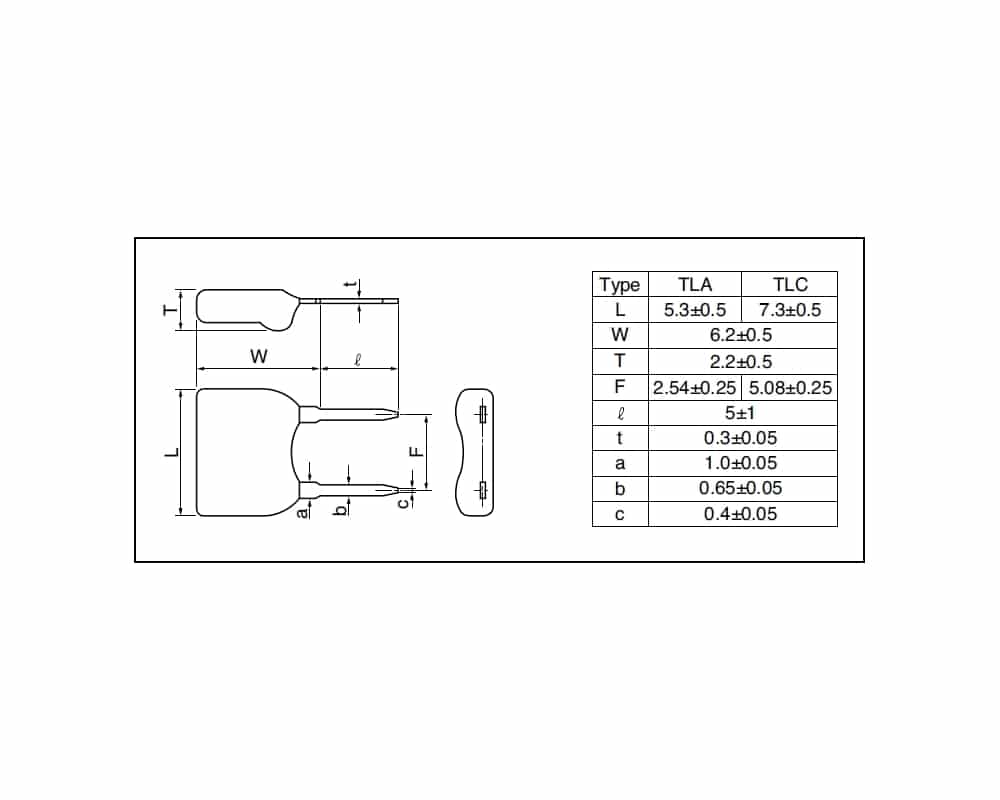

The TLA series offers a pin pitch of 2.54 ±0.25mm.



The below table gives the full specifications for each resistor model available including the Alpha TLA series:

Alpha TLA Specifications
* Symbols parenthesized are for part number composition





Specifications

Weight 0.00000 kg
Dimensions 5.30 × 2.20 × 6.20 mm
Product Type

,

Minimum Resistance

Resistance Value

Maximum Resistance

Series / Model

Tolerance

, , ,

Power Rating

Temperature Coefficient

,

Package / Size

,

Temperature Range (°C)

Alpha TLA Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Alpha Resistor Videos

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Resistor Stability Put to the Test (Demo Video)

In this video, our host Richard Zuratt puts the stability of the three major resistor technologies — foil, thin, and thick film — to the test. Each resistor type is subjected to an overload pulse and its change in resistance value is recorded. Due to the homogeneous nature of the VPG Bulk Metal® Foil resistor, it is the only of the three to experience no change from the high power pulse. This demonstrated performance makes foil resistors the technology of choice for critical applications where long-term stability and survivability are paramount.

Place holder video for YouTube video Advantages of Using Bulk Metal® Foil Resistors in High-Humidity Environments

All resistors that are based on nichrome, which is a category that includes both thin film devices and Bulk Metal Foil resistors, are susceptible to electro-chemical corrosion or etching when placed in a high humidity environment and powered with a very low wattage. But since the nichrome element of a Bulk Metal Foil resistor is hundreds of times thicker than the element in a thin film device with the same value, it will last much longer under these conditions. This video shows the actual etching process and survival times for thin film and foil nichrome resistive elements as they are tested in 100% humidity conditions.

Place holder video for YouTube video Comparison Testing of Chip Resistor Technologies Under High Vibration

Surface-mount resistors suffer physical stresses when exposed to high vibration or thermally unstable environments. Failure modes commonly occur in welds, solder joints, connectors, and terminations, ultimately resulting in circuit failure. In this demonstration, vibration-table-mounted boards are subjected to ±2° deflection 25 times per second and monitored for any ΔR > 0.1%. All the chip resistors failed in 2 to 12 minutes (8K to 16K cycles). But the Alpha MPP molded Bulk Metal® Z-Foil resistor with flexible terminations experienced over a million cycles with no change in resistance.

VIDEOS
Place holder video for YouTube video
Resistor Stability Put to the Test (Demo Video

In this video, our host Richard Zuratt puts the stability of the three major resistor technologies — foil, thin, and thick film — to the test. Each resistor type is subjected to an overload pulse and its change in resistance value is recorded. Due to the homogeneous nature of the VPG Bulk Metal® Foil resistor, it is the only of the three to experience no change from the high power pulse. This demonstrated performance makes foil resistors the technology of choice for critical applications where long-term stability and survivability are paramount.

Place holder video for YouTube video
Advantages of Using Bulk Metal® Foil Resistors in High-Humidity Environments

All resistors that are based on nichrome, which is a category that includes both thin film devices and Bulk Metal Foil resistors, are susceptible to electro-chemical corrosion or etching when placed in a high humidity environment and powered with a very low wattage. But since the nichrome element of a Bulk Metal Foil resistor is hundreds of times thicker than the element in a thin film device with the same value, it will last much longer under these conditions. This video shows the actual etching process and survival times for thin film and foil nichrome resistive elements as they are tested in 100% humidity conditions.

Place holder video for YouTube video

Surface-mount resistors suffer physical stresses when exposed to high vibration or thermally unstable environments. Failure modes commonly occur in welds, solder joints, connectors, and terminations, ultimately resulting in circuit failure. In this demonstration, vibration-table-mounted boards are subjected to ±2° deflection 25 times per second and monitored for any ΔR > 0.1%. All the chip resistors failed in 2 to 12 minutes (8K to 16K cycles). But the Alpha MPP molded Bulk Metal® Z-Foil resistor with flexible terminations experienced over a million cycles with no change in resistance.
