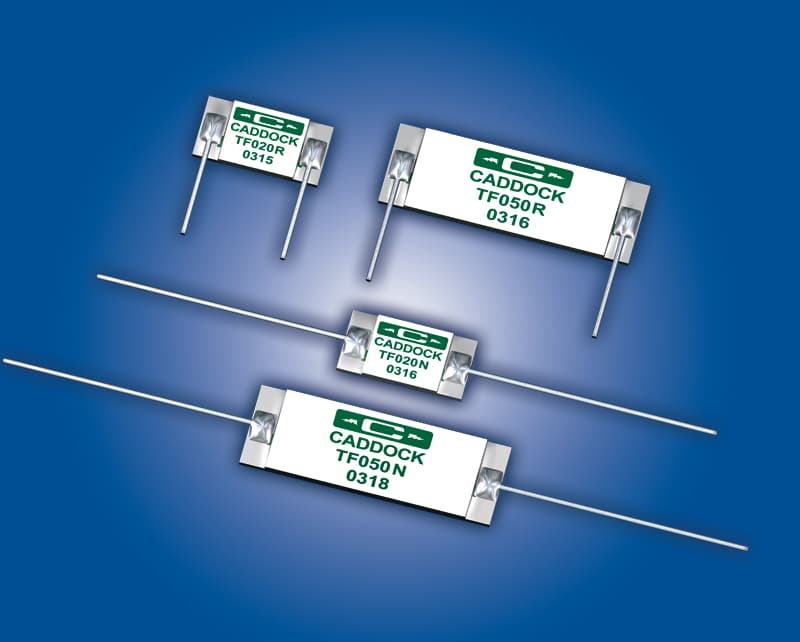

Caddock TF626 Series

  • Caddock

Product Features

  • Ultra-precision film through-hole resistor
  • Radial or axial leaded variants available
  • Maximum working voltage of 300V
  • Constructed with Caddock’s Tetrinox® resistance films
  • Long term stability to 0.01% per 1,000 hours
  • Storage temperature range from -55°C up to +105°C

Applications

  • Scientific Instrumentation
  • Test and Measurement
  • Exempt

Description

The TF626 series from Caddock are low TCR ultra-precision film resistors, with a resistance range from 2.01MΩ to 35MΩ. These resistors have a tolerance range from ±0.25% to ±1.0%. The TCR values available are ±5 ppm/°C (between -15°C and +105°C), ±10 ppm/°C (between -15°C and +105°C) and ±15 ppm/°C (between -15°C and +105°C). The Caddock TF626 series is available with either radial or axial tinned copper leads, it offers long term stability and is constructed using the Tetrinox® resistance technology.

  • Ultra precision film through-hole resistors
  • Radial or axial leaded variants available
  • Resistance values available between 2.01MΩ and 35MΩ
  • TCR of ±5 ppm/°C (between -15°C and +105°C), ±10 ppm/°C (between -15°C and +105°C) and ±15 ppm/°C (between -15°C and +105°C)
  • Tolerance of ±0.01%, ±0.025%, ±0.05%, ±0.1% and ±1.0%
  • Maximum power rating of 0.33W (at +70°C)
  • Long term stability to 0.01% per 1,000 hours
  • Storage temperature range from -55°C up to +105°C
  • Maximum working voltage of 300V
  • Utilises Caddock’s Tetrinox® resistance technology



Additional cost savings can be realized when your high volume ultra-precision Caddock TF626 resistor is optimized for:

  • Lightning transient capability
  • Voltage rating
  • Power rating
  • Mechanical configuration
  • Ratio matched sets



The below table gives the specifications available for the TF626 resistor series:

Caddock TF626 series Specifications

Specifications

Weight 0.00000 kg

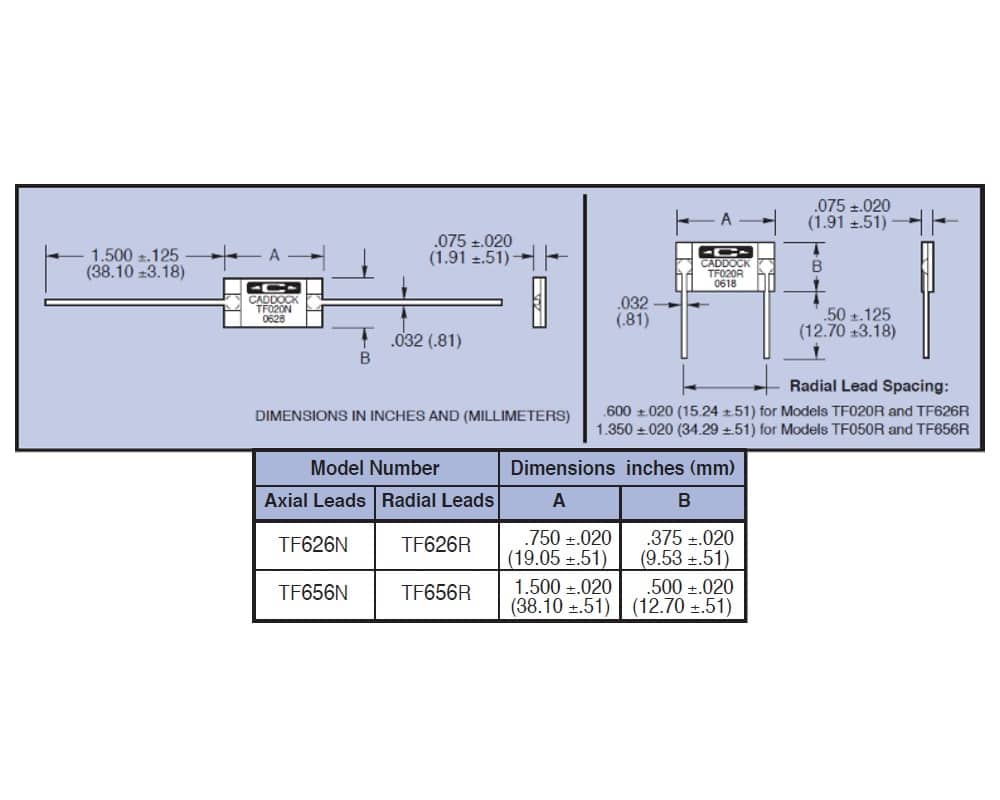

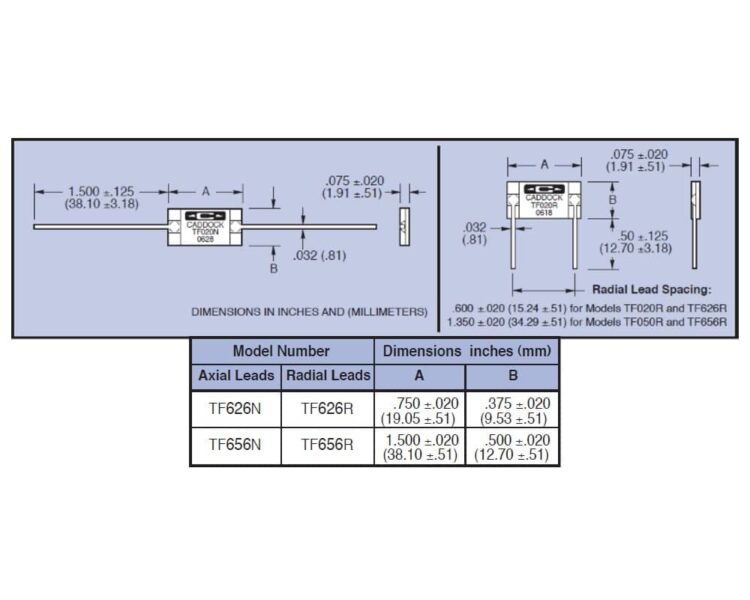

Dimensions 19.05 × 1.91 × 9.53 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

, ,

Power Rating

Additional Features

Ultra-precision film through-hole resistorRadial or axial leaded variants availableMaximum working voltage of 300VConstructed with Caddock's Tetrinox® resistance filmsLong term stability to 0.01% pe

Tolerance

, , , ,

Package / Size
