  • Caddock

Product Features

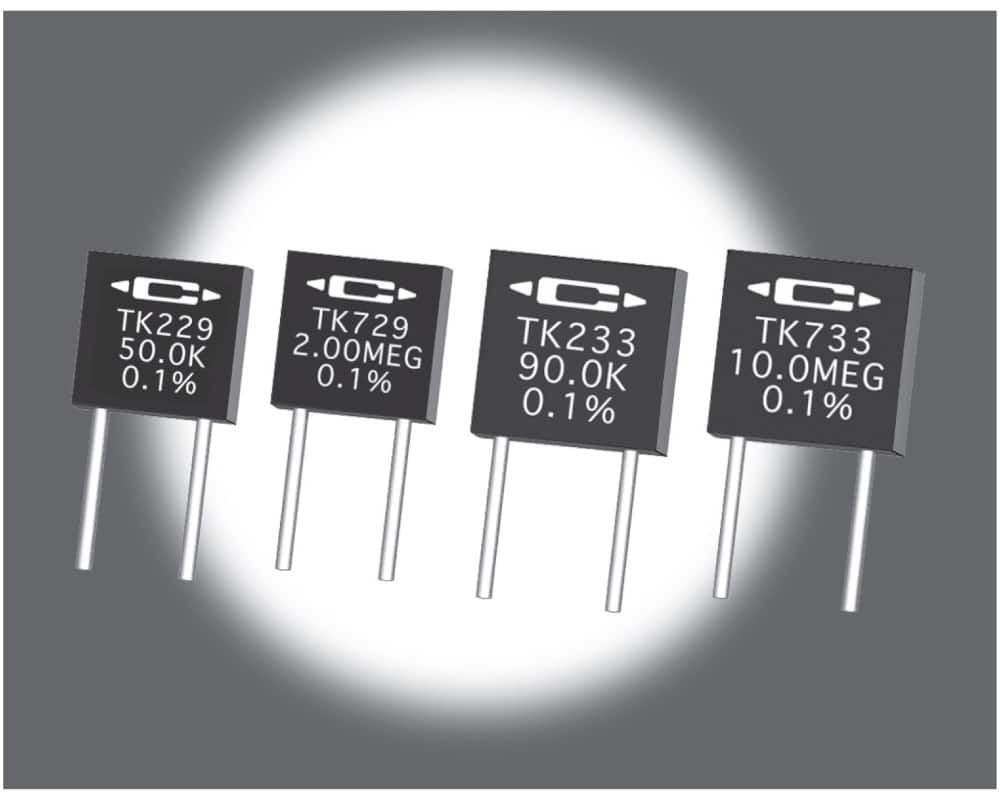

  • Precision radial leaded film through-hole resistor
  • Caddock’s non-inductive performance
  • Maximum working voltage of 200V
  • Compact rectangular package with standard lead spacing
  • Constructed with Caddock’s Tetrinox® resistance films
  • Long-term absolute stability typically better than ±0.05% per 2,000 hours
  • Temperature range from -40°C up to +150°C

Applications

  • Exempt

Description

The TK229 series, low TCR precision radial-lead film resistors from Caddock have a resistance range between 1KΩ and 500KΩ the low TCR of ±10 ppm/°C comes as standard between -40°C and +125°C (±5 ppm/°C is avaiailable on special order) and with a tolerance of ±0.1% as standard (with options for ±1.0% and ±0.05% on special order). The TK229 series uses Caddock’s Tetrinox® resistance system to solve the reliability problems related to other low TC precision resistor technologies, the robust construction provides reliable operation even in harsh temperature cycling and/or power cycling environments.

  • Precision radial lead film through-hole resistor
  • Resistance values available between 1KΩ and 500KΩ
  • TCR of ±10 ppm/°C as standard between -40°C and +125°C (±5 ppm/°C is also available on special order)
  • Tolerance of ±0.1% as standard (with options for ±1.0% and ±0.05% on special order)
  • Temperature range -40°C to +150°C
  • Long-term absolute stability typically better than ±0.05% per 2,000 hours
  • Caddock’s non-inductive performance
  • Maximum working voltage of 200V at +85°C
  • Utilises Caddock’s Tetrinox® resistance technology
  • Compact rectangular package with standard lead spacing

The below table gives the specifications available for the TK resistor series including the TK229 model:

Caddock TK229 series Specifications

Specifications

Weight 0.00000 kg

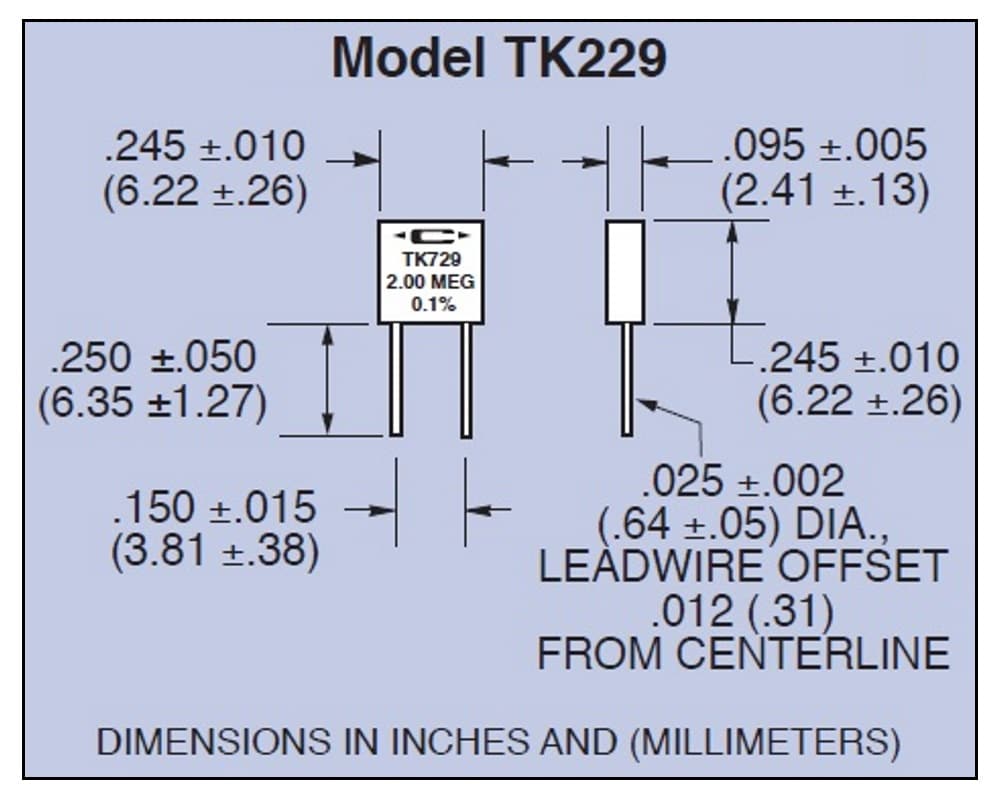

Dimensions 6.22 × 2.41 × 6.22 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

,

Power Rating

Additional Features

Precision radial leaded film through-hole resistorCaddock's non-inductive performanceMaximum working voltage of 200VCompact rectangular package with standard lead spacingConstructed with Caddock's Te

Tolerance

, ,

Package / Size

Caddock TK229 Series Resources

Product Datasheet

Supporting Manufacturer Information
